Epson 965H Standard throw projector 3500 ANSI lumens 3LCD XGA (1024x768) White
Model 965HPart no. V11H682020EAN 010343917958
81 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight2.9 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 2.9 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- 965H
- Part number
- V11H682020
- EAN / UPC
- 010343917958
- Also known as
- Epson 965H Standard throw projector 3500 ANSI lumens 3LCD XGA (1024x768) White
Specifications
81 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.83 - 13.86 m |
| Projection distance (wide) | 0.83 - 8.5 m |
| Projection distance (tele) | 1.36 - 13.86 m |
| Number of colours | 1.073 billion colours |
| Projector brightness (economic mode) | 2450 ANSI lumens |
| Vertical scan range | 50 - 85 Hz |
| Colour light output | 3500 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.6 cm (0.63") |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 3500 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHE |
| Lamp power | 200 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 - 29.2 mm |
| Aperture range (F-F) | 1.51 - 1.99 |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.38 - 2.24:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | No |
| HD-Ready | Yes |
| 3D | No |
| Supported graphics resolutions | 1024 x 768 (XGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Video processing | 10 bit |

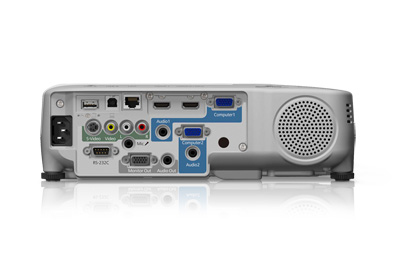

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 2 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| USB connector type | USB Type-A, USB Type-B |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 29 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Desktop, Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 299 W |
| Power consumption (standby) | 2.3 W |
| Power consumption (max) | 0.21 W |
| Power consumption (economy mode) | 221 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Voltage tolerance | 10% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.9 kg |
| Width | 294.6 mm |
| Depth | 269.2 mm |
| Height | 86.3 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
