PowerLite 805F Ultra short throw projector 5000 ANSI lumens 3-Chip DLP WXGA (1366x768) Black
Model 805FPart no. V11H923620EAN 010343950955
65 specifications
- Noise36 dB
- TypeUltra short throw projector
- Weight9.71 kg
- ColourBlack
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 36 dB
- Type
- Ultra short throw projector
- Weight
- 9.71 kg
- Colour
- Black
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- 805F
- Part number
- V11H923620
- EAN / UPC
- 010343950955
- Also known as
- Epson PowerLite 805F Ultra short throw projector 5000 ANSI lumens 3-Chip DLP WXGA (1366x768) Black
Specifications
65 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3-Chip DLP |
| Projector native resolution | WXGA (1366x768) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:10, 16:6, 21:9 |
| Screen size compatibility | 1651 - 3302 mm (65 - 130") |
| Projection distance | 0.27 - 0.37 m |
| Contrast ratio (dynamic) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Colour light output | 5000 ANSI lumens |
| Keystone correction, horizontal | 3° |
| Keystone correction, vertical | 3° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 5000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 3.9 mm |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.27 - 0.37 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 1366 x 768 |
| Supported video modes | 1080p |

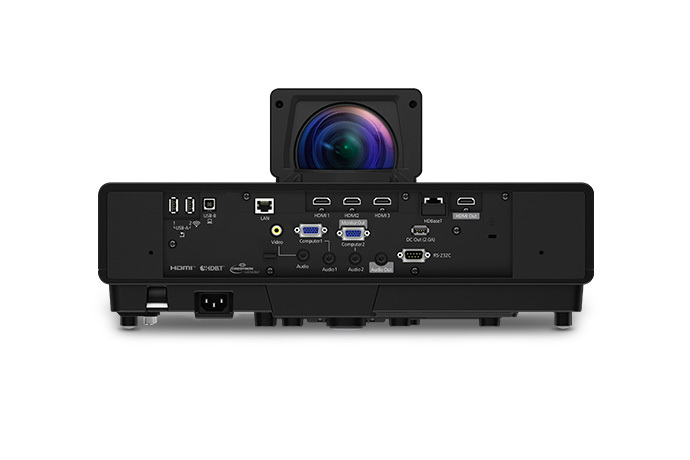

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 4 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 3 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232C |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 36 dB |
| Country of origin | China |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Education |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 381 W |
| Power consumption (standby) | 2 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Supplier features
| Specification | Value |
|---|---|
| Battery type | AA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.71 kg |
| Width | 459.7 mm |
| Depth | 449.6 mm |
| Height | 228.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Manual | Yes |
