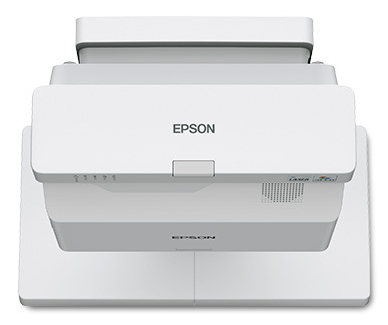

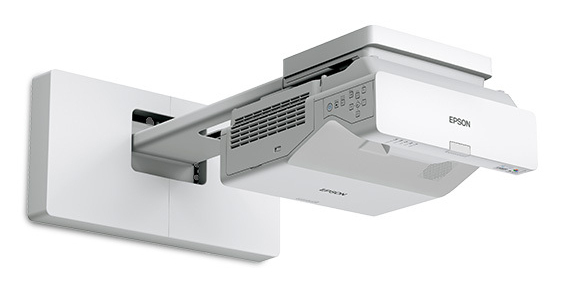

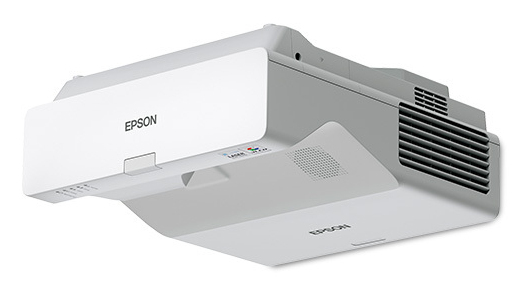

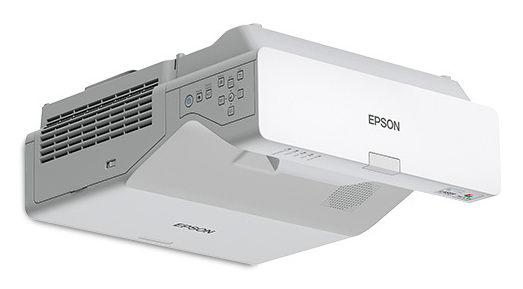

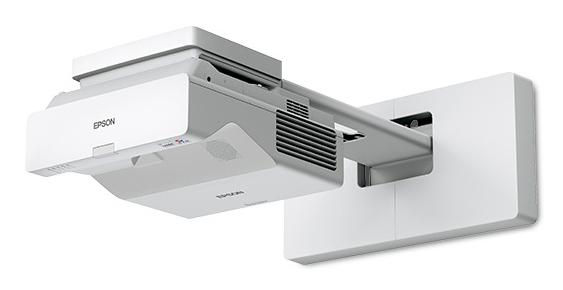

PowerLite 760W Ultra short throw projector 4100 ANSI lumens 3LCD 1080p (1920x1080) White
Model 760WPart no. V11HA81020EAN 010343975408
78 specifications
- Noise37 dB
- TypeUltra short throw projector
- Weight5.9 kg
- ColourWhite
- Projector brightness4100 ANSI lumens
- Light source typeLaser/LED hybrid
Overview
- Noise
- 37 dB
- Type
- Ultra short throw projector
- Weight
- 5.9 kg
- Colour
- White
- Projector brightness
- 4100 ANSI lumens
- Light source type
- Laser/LED hybrid
- Brand
- Epson
- Category
- Data Projector
- Model
- 760W
- Part number
- V11HA81020
- EAN / UPC
- 010343975408
- Also known as
- Epson PowerLite 760W Ultra short throw projector 4100 ANSI lumens 3LCD 1080p (1920x1080) White
Specifications
78 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 1524 - 3810 mm (60 - 150") |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2800 ANSI lumens |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Heat dissipation | 895 BTU/h |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser/LED hybrid |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.27 - 0.37:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 3 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| Consumer Electronics Control (CEC) support | Yes |
| Audio Return Channel (ARC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
| On Screen Display (OSD) | Yes |
| Screen mirroring | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 197 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 263 W |
| Power consumption (PowerSave) | 199 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Supplier features
| Specification | Value |
|---|---|
| Recommended gender | Any gender |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.9 kg |
| Width | 356 mm |
| Depth | 395 mm |
| Height | 133 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
