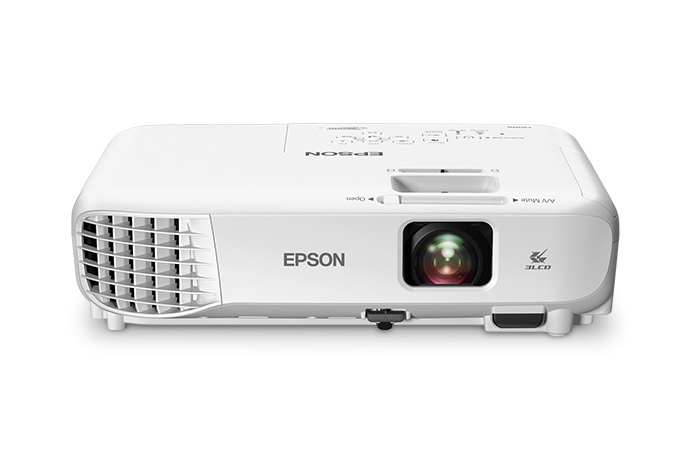

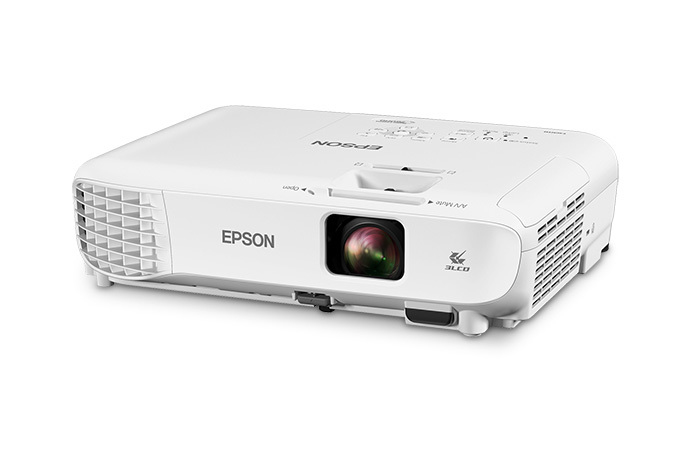

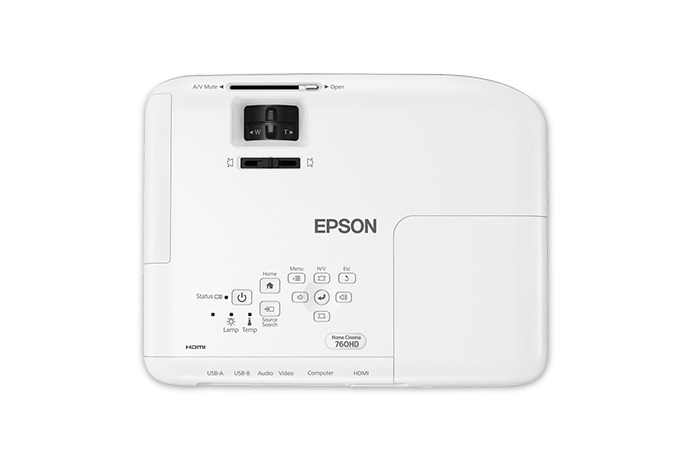

Home Cinema 760HD Standard throw projector 3000 ANSI lumens 3LCD WXGA (1280x800) White
Model 760HDPart no. V11H848020EAN 010343936720
62 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight2.5 kg
- ColourWhite
- Projector brightness3000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 2.5 kg
- Colour
- White
- Projector brightness
- 3000 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- 760HD
- Part number
- V11H848020
- EAN / UPC
- 010343936720
- Also known as
- Epson Home Cinema 760HD Standard throw projector 3000 ANSI lumens 3LCD WXGA (1280x800) White
Specifications
62 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 838.2 - 8128 mm (33 - 320") |
| Number of colours | 1.073 billion colours |
| Colour light output | 3000 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| White light output | 3000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHE |
| Lamp power | 210 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
Video
| Specification | Value |
|---|---|
| Full HD | No |
| 3D | No |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 800 (WXGA) |
| Supported video modes | 720p |

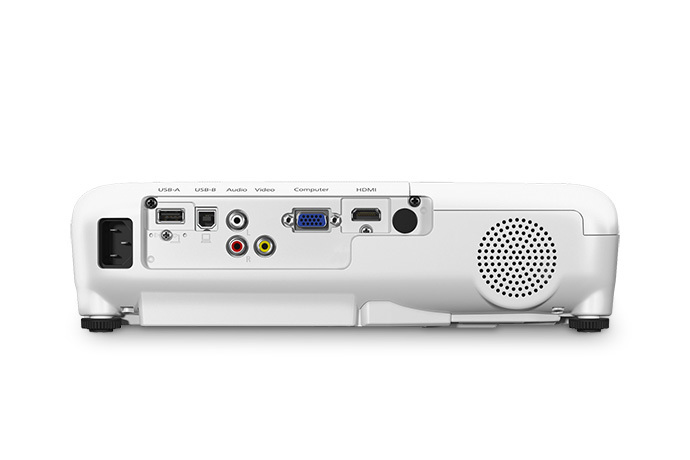

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| PC in (D-Sub) | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN (RJ-45) ports | 0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 12 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 296 W |
| Power consumption (economy mode) | 211 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
| Width | 302 mm |
| Depth | 234 mm |
| Height | 77 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 0 |
