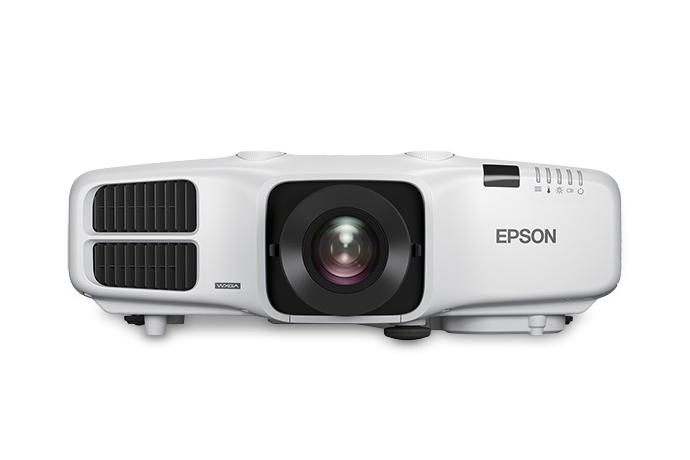

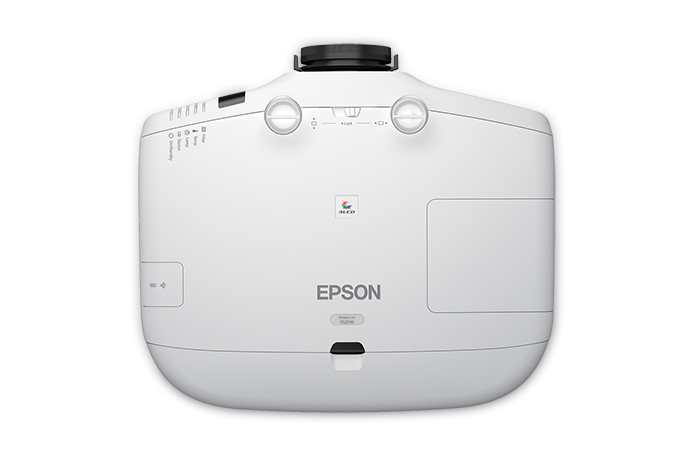

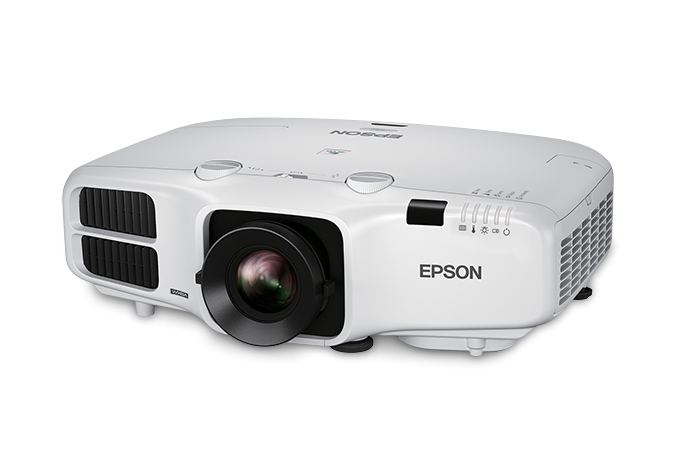

Epson PowerLite 5520W Standard throw projector 5500 ANSI lumens 3LCD WXGA (1280x800) White

Epson PowerLite 5520W Standard throw projector 5500 ANSI lumens 3LCD WXGA (1280x800) White

Model 5520WPart no. V11H826020EAN 010343932616

63 specifications
  • Noise38 dB
  • TypeStandard throw projector
  • ColourWhite
  • Projector brightness5500 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Noise
38 dB
Type
Standard throw projector
Colour
White
Projector brightness
5500 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
Epson
Model
5520W
Part number
V11H826020
EAN / UPC
010343932616
Also known as
Epson PowerLite 5520W Standard throw projector 5500 ANSI lumens 3LCD WXGA (1280x800) White

Specifications

63 specifications in 13 groups

Projector

Projector brightness5500 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Supported aspect ratios4:3, 16:10, 16:9
Screen size compatibility762 - 7620 mm (30 - 300")
Contrast ratio (dynamic)15000:1
Uniformity87%
Colour light output5500 ANSI lumens
Keystone correction, horizontal-30 - 30°
Keystone correction, vertical-30 - 30°
Matrix type3-panel (p-Si TFT active)
White light output5500 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp typeUHE
Lamp power300 W

Lens system

FocusManual
Focal length range21.34 - 37.99 mm
Aperture range (F-F)1.5 - 2.15
Zoom capabilityYes
Zoom ratio2.0:1
Optical zoom2x
Throw ratio1.26 - 2.30:1
Horizontal lens shift range-10 - 10°
Vertical lens shift range-50 - 50°

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
DVI portNo
HDBaseT portYes
USB 2.0 ports quantity2
Audio (L/R) in2
Audio (L/R) out1
Serial interface typeRS-232C
BNC input ports1
Mobile High-Definition Link (MHL)Yes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates100 Mbit/s
Wi-FiNo

Features

Noise level38 dB
Noise level (economic mode)28 dB

Design

Product typeStandard throw projector
Market positioningPresentation
Product colourWhite
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington

Power

Power sourceAC
Power consumption (typical)462 W
Power consumption (PowerSave)324 W
Power consumption (economy mode)324 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 45 °C

Weight & dimensions

Width470 mm
Depth320 mm
Height132 mm

Packaging content

Remote control includedYes

Other features

RS-232 ports1
RS-232CYes
