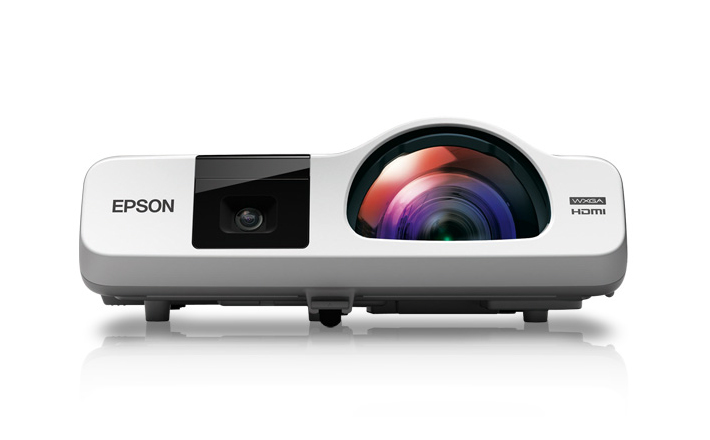

Epson 536Wi Short throw projector 3400 ANSI lumens 3LCD WXGA (1280x800) White

Epson 536Wi Short throw projector 3400 ANSI lumens 3LCD WXGA (1280x800) White

Model 536WiPart no. V11H670022EAN 014444568408

84 specifications
  • Noise37 dB
  • TypeShort throw projector
  • Weight3.86 kg
  • ColourWhite
  • Projector brightness3400 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
37 dB
Type
Short throw projector
Weight
3.86 kg
Colour
White
Projector brightness
3400 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
536Wi
Part number
V11H670022
EAN / UPC
014444568408, 103439163886
Also known as
Epson 536Wi Short throw projector 3400 ANSI lumens 3LCD WXGA (1280x800) White

Specifications

84 specifications in 15 groups

Projector

Projector brightness3400 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)16000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1346.2 - 2946.4 mm (53 - 116")
Projection distance0.5 - 1.2 m
Projection distance (wide)0 - 0.5 m
Projection distance (tele)0 - 1.2 m
Number of colours1.073 billion colours
Projector brightness (economic mode)1900 ANSI lumens
Colour light output3400 ANSI lumens
Keystone correction, horizontal- 5 - 5°
Keystone correction, vertical-7 - 7°
Matrix size1.5 cm (0.59")
Matrix type3-panel (p-Si TFT active)
White light output3400 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp typeUHE
Lamp power215 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range6.4 - 6.4 mm
Aperture range (F-F)1.60 - 1.60
Zoom ratio1.35:1
Throw ratio0.48 - 0.65:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
HD-ReadyYes
3DNo
Supported graphics resolutions1280 x 960, 1366 x 768, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Video processing10 bit

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Component video (YPbPr/YCbCr) in2
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in2
Audio (L/R) out1
Microphone inYes
Serial interface typeRS-232
USB connector typeUSB Type-A, USB Type-B
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiNo

Features

Noise level37 dB
Noise level (economic mode)29 dB
2D/3D frequency image50 - 85 Hz

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product typeShort throw projector
Market positioningShort throw
Product colourWhite
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Power

Power sourceAC
Power consumption (typical)344 W
Power consumption (standby)0.28 W
Power consumption (economy mode)254 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Voltage tolerance10%

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 35 °C

Weight & dimensions

Weight3.86 kg
Width345 mm
Depth297 mm
Height104 mm

Packaging content

Remote control includedYes
Batteries includedYes
AC adapter includedYes
ManualYes

Other features

RS-232 ports1
