Epson 520 Short throw projector 2700 ANSI lumens 3LCD XGA (1024x768) White

Epson 520 Short throw projector 2700 ANSI lumens 3LCD XGA (1024x768) White

Model 520Part no. V11H674020EAN 010343915039

80 specifications
  • Noise35 dB
  • TypeShort throw projector
  • Weight3.72 kg
  • ColourWhite
  • Projector brightness2700 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
35 dB
Type
Short throw projector
Weight
3.72 kg
Colour
White
Projector brightness
2700 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
520
Part number
V11H674020
EAN / UPC
010343915039, 103439150398
Also known as
Epson 520 Short throw projector 2700 ANSI lumens 3LCD XGA (1024x768) White

Specifications

80 specifications in 15 groups

Projector

Projector brightness2700 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)16000:1
Native aspect ratio4:3
Supported aspect ratios4:3
Screen size compatibility1270 - 2743.2 mm (50 - 108")
Projection distance0.5 - 1.3 m
Number of colours1.073 billion colours
Projector brightness (economic mode)1600 ANSI lumens
Vertical scan range50 - 85 Hz
Colour light output2700 ANSI lumens
Keystone correction, horizontal15°
Keystone correction, vertical15°
Matrix size1.4 cm (0.55")
Matrix type3-panel (p-Si TFT active)
White light output2700 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp typeUHE
Lamp power215 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range6.4 - 6.4 mm
Aperture range (F-F)1.6 - 1.6
Zoom ratio1.35:1
Throw ratio0.55 - 0.74

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDNo
HD-ReadyYes
Supported graphics resolutions1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Video processing10 bit

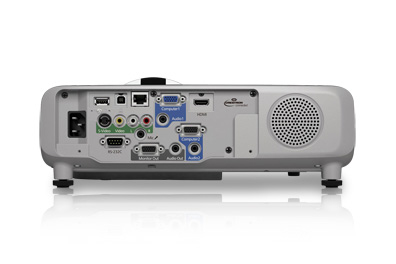

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in1
Composite video in1
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in1
Audio (L/R) out1
Microphone inYes
Serial interface typeRS-232
USB connector typeUSB Type-A, USB Type-B
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiNo

Features

Noise level35 dB
Noise level (economic mode)28 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product typeShort throw projector
Market positioningPresentation
Product colourWhite
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)293 W
Power consumption (standby)1.9 W
Power consumption (PowerSave)0.22 W
Power consumption (economy mode)229 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Voltage tolerance10%

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight3.72 kg
Width342.9 mm
Depth315 mm
Height94 mm

Packaging content

Remote control includedYes

Other features

RS-232 ports1
