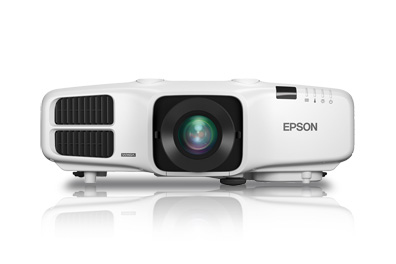

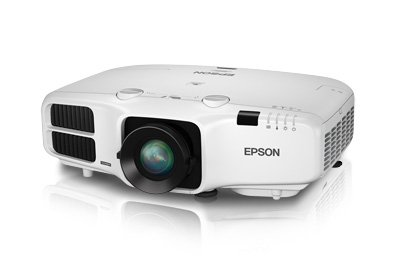

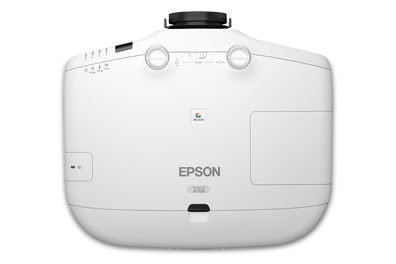

Epson 4770W Standard throw projector 5000 ANSI lumens 3LCD WXGA (1280x800) White
Model 4770WPart no. V11H748020EAN 010343919327
81 specifications
- Noise38 dB
- TypeStandard throw projector
- Weight6.49 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 38 dB
- Type
- Standard throw projector
- Weight
- 6.49 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- 4770W
- Part number
- V11H748020
- EAN / UPC
- 010343919327
- Also known as
- Epson 4770W Standard throw projector 5000 ANSI lumens 3LCD WXGA (1280x800) White
Specifications
81 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Contrast ratio (dynamic) | 5000:1 |
| Number of colours | 1.073 billion colours |
| Uniformity | 90% |
| Horizontal scan range | 15 - 92 kHz |
| Vertical scan range | 50 - 85 Hz |
| Colour light output | 5000 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 5000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 5000 h |
| Lamp type | UHE |
| Lamp power | 280 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.72 - 33.47 mm |
| Aperture range (F-F) | 1.5 - 2.14 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.27 - 2.59:1 |
| Horizontal lens shift range | -38 - 38% |
| Vertical lens shift range | -70 - 70% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL |
| Full HD | No |
| HD-Ready | Yes |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |

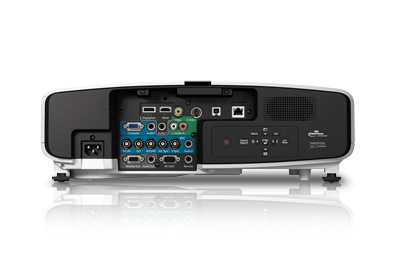

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) in | 4 |
| Serial interface type | RS-232 |
| USB connector type | USB Type-A, USB Type-B |
| BNC input ports | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| Noise level (economic mode) | 32 dB |
| HDCP | No |
| Dot clock scanning frequency | 162 MHz |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 409 W |
| Power consumption (standby) | 4.3 W |
| Power consumption (max) | 409 W |
| Power consumption (PowerSave) | 0.41 W |
| Power consumption (economy mode) | 311 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 56/60 Hz |
| Voltage tolerance | 10% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.49 kg |
| Width | 472 mm |
| Depth | 320 mm |
| Height | 134 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
