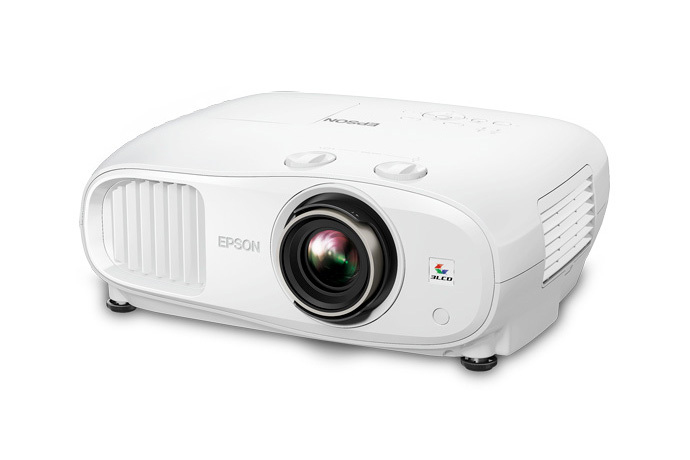

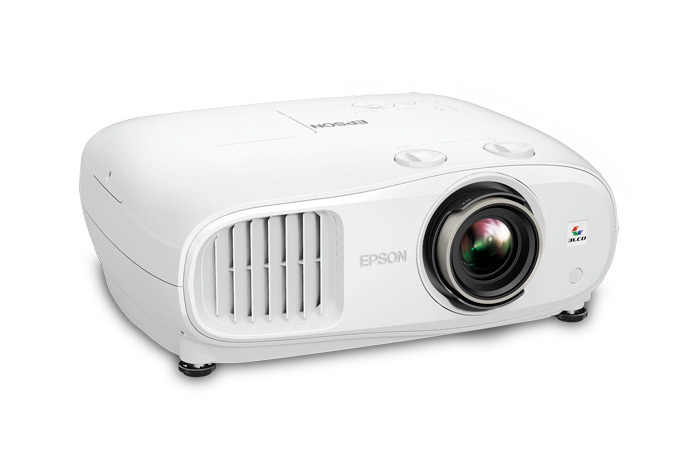

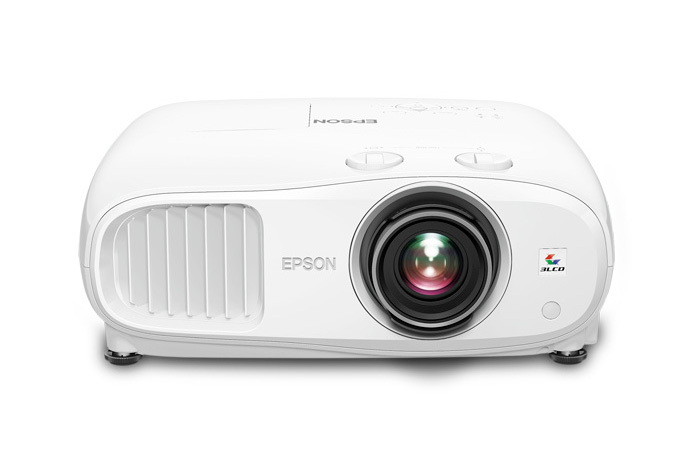

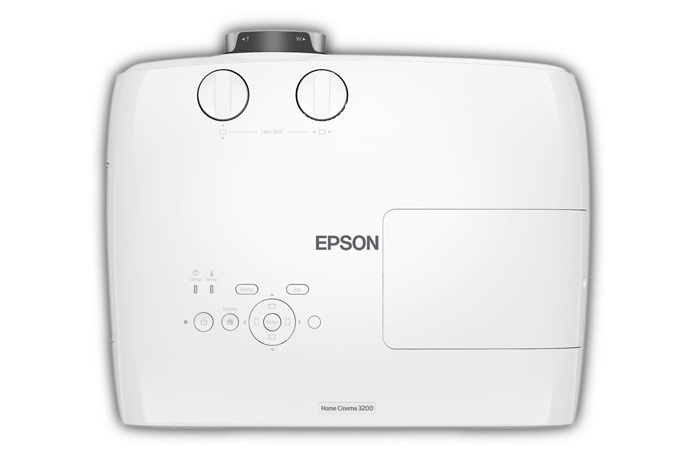

3200 2900 ANSI lumens 3LCD DCI 4K (4096x2160) 3D White
Model 3200Part no. V11H961020EAN 010343948815
81 specifications
- Noise35 dB
- Weight6.62 kg
- ColourWhite
- Projector brightness2900 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 35 dB
- Weight
- 6.62 kg
- Colour
- White
- Projector brightness
- 2900 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Epson
- Category
- Data Projector
- Model
- 3200
- Part number
- V11H961020
- EAN / UPC
- 010343948815
- Also known as
- Epson 3200 2900 ANSI lumens 3LCD DCI 4K (4096x2160) 3D White
Specifications
81 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2900 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | DCI 4K (4096x2160) |
| Contrast ratio (typical) | 40000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9, 4:3, 16:10 |
| Smart projector | No |
| Screen size compatibility | 1016 - 7620 mm (40 - 300") |
| Projection distance | 2.95 - 4.77 m |
| Number of colours | 1.073 billion colours |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.55 cm (0.61") |
| Matrix type | 3-panel (p-Si TFT active) |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3500 h |
| Service life of light source (economic mode) | 5000 h |
| Lamp type | UHE |
| Lamp power | 250 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 18.2 - 29.2 mm |
| Aperture range (F-F) | 1.49 - 1.77 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1:1.62 |
| Throw ratio | 1.32 - 2.15:1 |
| Horizontal lens shift range | -24 - 24% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video colour modes | Auto, Bright cinema, Cinema, Dynamic, Natural |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 2.0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 35 dB |
| Noise level (economic mode) | 24 dB |
| HDCP | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Hybrid Log-Gamma (HLG) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Desktop, Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 386 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 291 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.62 kg |
| Width | 408.9 mm |
| Depth | 330.2 mm |
| Height | 165.1 mm |
Packaging content
| Specification | Value |
|---|---|

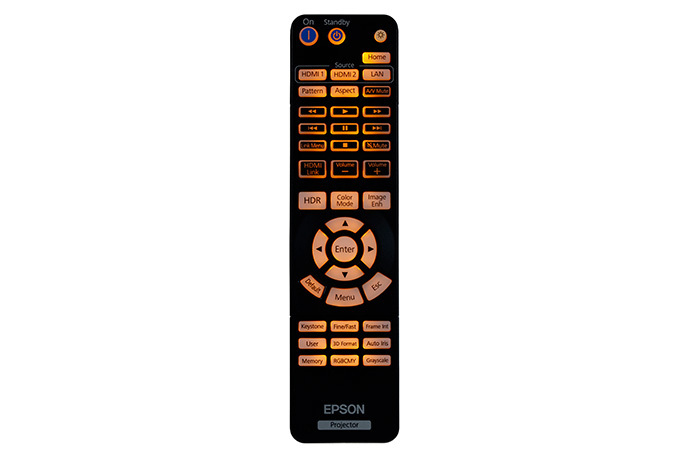

| Remote control included | Yes |
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Products per pallet | 18 pc(s) |
| Products per pallet (UK) | 36 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 4 pc(s) |
