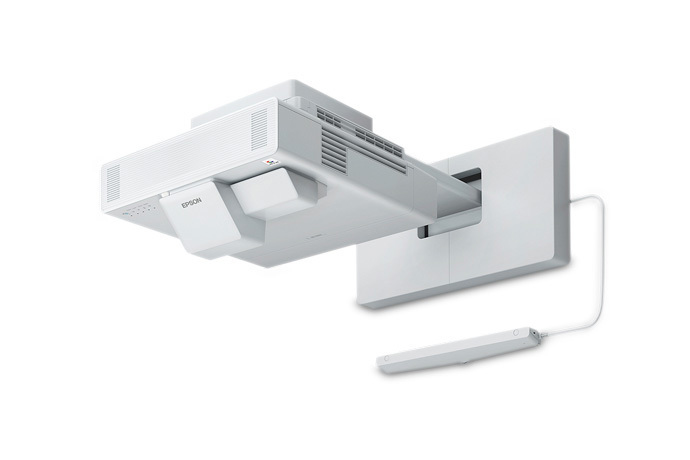

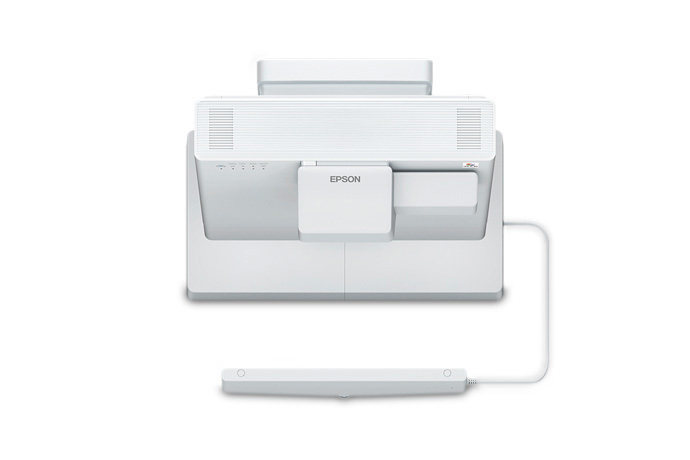

BrightLink 1485Fi Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
Model 1485FiPart no. V11H919520EAN 010343950139
67 specifications
- Noise36 dB
- TypeUltra short throw projector
- Weight9.7 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 36 dB
- Type
- Ultra short throw projector
- Weight
- 9.7 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- 1485Fi
- Part number
- V11H919520
- EAN / UPC
- 010343950139
- Also known as
- Epson BrightLink 1485Fi Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
Specifications
67 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:6, 4:3, 16:10, 16:9, 21:9 |
| Screen size compatibility | 1651 - 2540 mm (65 - 100") |
| Number of colours | 1.073 billion colours |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Matrix type | 3-panel (p-Si TFT active) |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 3.9 mm |
| Zoom capability | Yes |
| Throw ratio | 16:9) 0.27 - 0.37, (4:3) 0.37 - 0.50, (16:10) 0.30 - 0.42 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported video modes | 1080p |

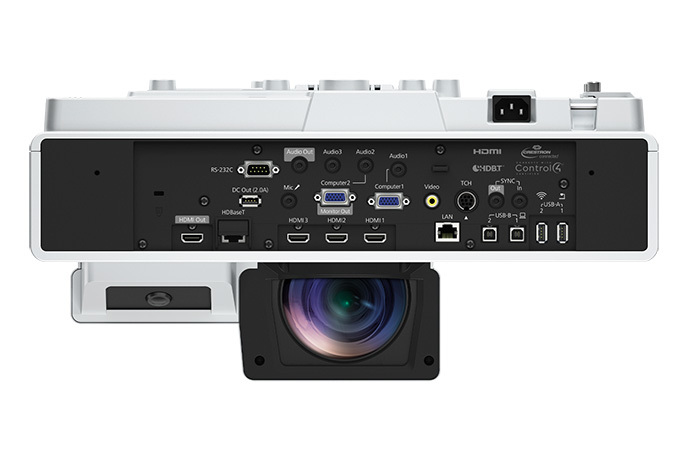

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 4 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 3 |
| Audio (L/R) in | 0 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 36 dB |
| Noise level (economic mode) | 27 dB |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Wall |
| Cable lock slot | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 381 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 270 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.7 kg |
| Width | 459.7 mm |
| Depth | 363.2 mm |
| Height | 210.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, USB |
