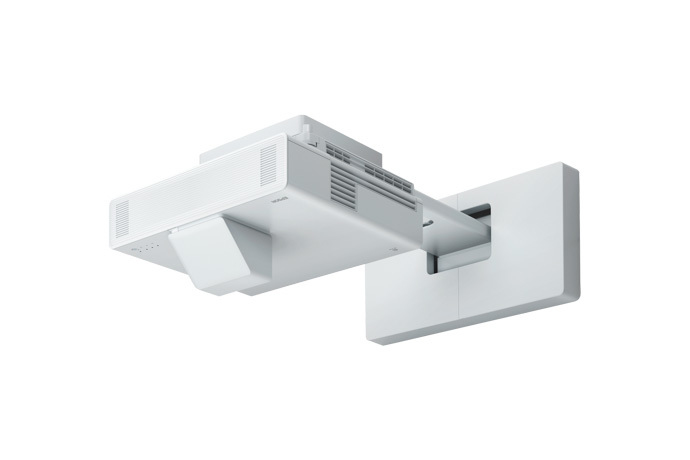

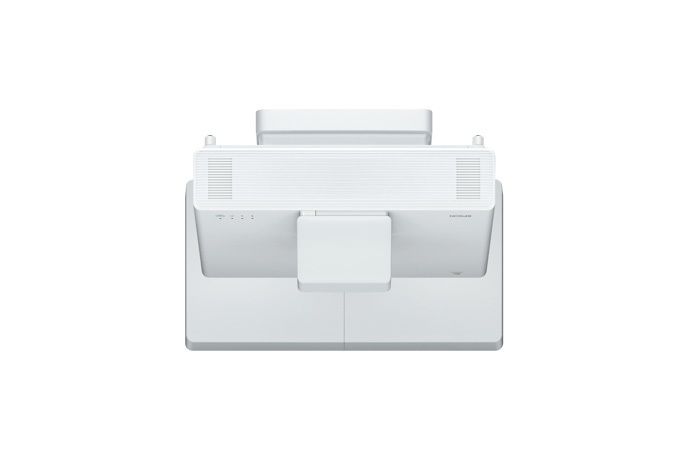

BrightLink 1480Fi Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
Model 1480FiPart no. V11H921520EAN 010343950146
67 specifications
- Noise36 dB
- TypeUltra short throw projector
- Weight9.7 g
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 36 dB
- Type
- Ultra short throw projector
- Weight
- 9.7 g
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- Epson
- Category
- Data Projector
- Model
- 1480Fi
- Part number
- V11H921520
- EAN / UPC
- 010343950146
- Also known as
- Epson BrightLink 1480Fi Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
Specifications
67 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:10 |
| Screen size compatibility | 1651 - 2540 mm (65 - 100") |
| Number of colours | 1.07 billion colours |
| Colour light output | 5000 ANSI lumens |
| Keystone correction, horizontal | 3° |
| Keystone correction, vertical | 3° |
| White light output | 5000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 3.9 mm |
| F-number (relative aperture) | 1.5 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.27 – 0.37, 0.37 – 0.50, 0.30 – 0.42 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |

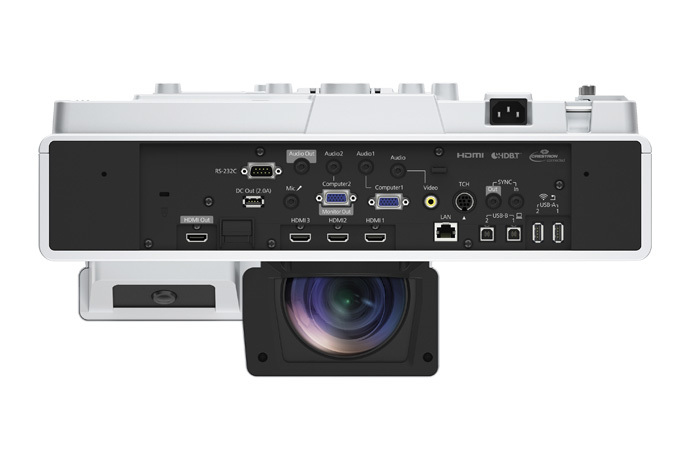

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Features
| Specification | Value |
|---|---|
| Interactive | Yes |
| Interactive input supported | Interactive pen/Touch |
| Noise level | 36 dB |
| Noise level (economic mode) | 27 dB |
| Projection modes | Ceiling |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Ceiling, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (standby) | 2 W |
| Power consumption (max) | 381 W |
| Power consumption (economy mode) | 270 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.7 g |
| Width | 459 mm |
| Depth | 462 mm |
| Height | 375 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, USB Type-A |
| Manual | Yes |
