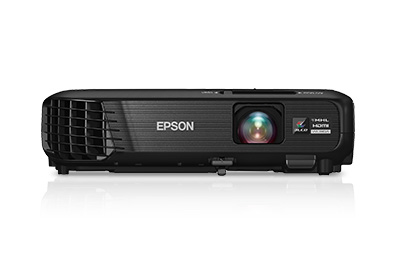

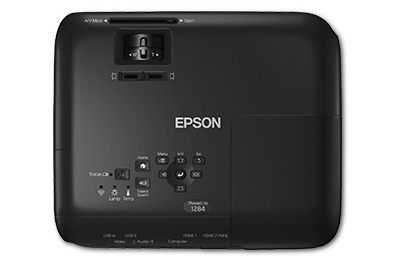

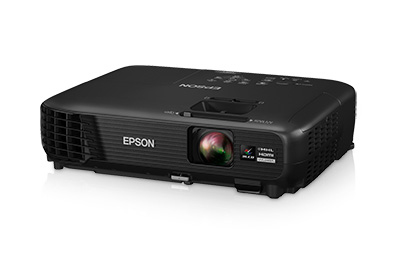

Epson PowerLite 1284 Standard throw projector 3200 ANSI lumens 3LCD WUXGA (1920x1200) Black
Model 1284Part no. V11H722120EAN 010343922365
69 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight2.59 kg
- ColourBlack
- Projector brightness3200 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 2.59 kg
- Colour
- Black
- Projector brightness
- 3200 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- 1284
- Part number
- V11H722120
- EAN / UPC
- 010343922365
- Also known as
- Epson PowerLite 1284 Standard throw projector 3200 ANSI lumens 3LCD WUXGA (1920x1200) Black
Specifications
69 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1.38 - 1.68 m |
| Projection distance (wide) | 1.38 - 1.38 m |
| Projection distance (tele) | 1.68 - 1.68 m |
| Number of colours | 1.073 billion colours |
| Colour light output | 3200 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 3200 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHE |
| Lamp power | 200 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 20.42 - 24.5 mm |
| Aperture range (F-F) | 1.5 - 1.71 |
| Zoom capability | Yes |
| Zoom type | Manual |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| HD-Ready | Yes |
| 3D | No |
| 3D Ready | No |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1280 x 960, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+) |

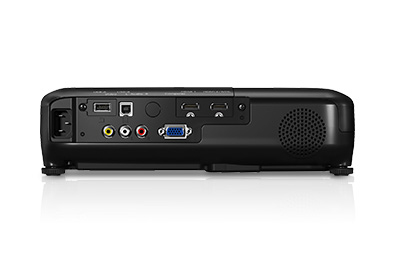

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) in | 1 |
| USB connector type | USB Type-A, USB Type-B |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 29 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | Black |
| Placement | Desktop, Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 291 W |
| Power consumption (economy mode) | 214 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.59 kg |
| Width | 279 mm |
| Depth | 243.8 mm |
| Height | 76 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
