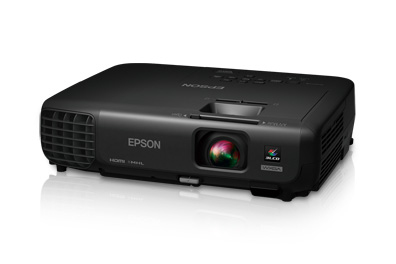

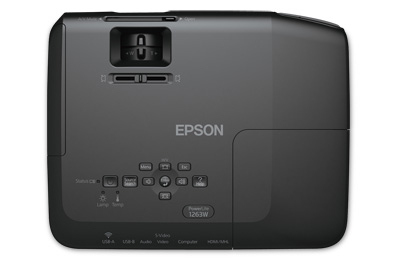

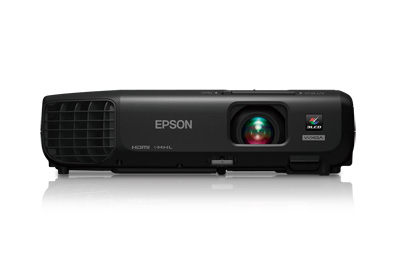

Epson 1263W Standard throw projector 3000 ANSI lumens 3LCD WXGA (1280x800) Black
Model 1263WPart no. V11H654120EAN 010343915473
74 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight2.4 kg
- ColourBlack
- Projector brightness3000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 2.4 kg
- Colour
- Black
- Projector brightness
- 3000 ANSI lumens
- Light source type
- Lamp
- Brand
- Epson
- Category
- Data Projector
- Model
- 1263W
- Part number
- V11H654120
- EAN / UPC
- 010343915473, 103439154730
- Also known as
- Epson 1263W Standard throw projector 3000 ANSI lumens 3LCD WXGA (1280x800) Black
Specifications
74 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:10 |
| Screen size compatibility | 838.2 - 8128 mm (33 - 320") |
| Projection distance | 0.9 - 9 m |
| Projection distance (wide) | 0.9 - 0.9 m |
| Projection distance (tele) | 9 - 9 m |
| Number of colours | 1.073 billion colours |
| Colour light output | 3000 ANSI lumens |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 3000 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 6000 h |
| Lamp type | UHE |
| Lamp power | 200 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 20.28 mm |
| Aperture range (F-F) | 1.58 - 1.72 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.3 - 1.56:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | No |
| HD-Ready | Yes |
| 3D | No |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 640 x 480 (VGA) |
| Video processing | 10 bit |

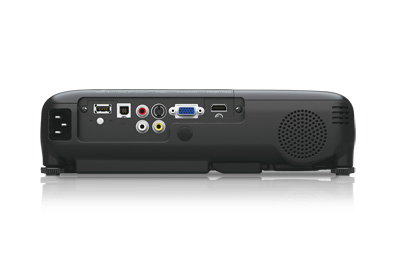

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) in | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 29 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | Black |
| Placement | Desktop, Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 283 W |
| Power consumption (economy mode) | 207 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Voltage tolerance | 10% |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 297 mm |
| Depth | 228.6 mm |
| Height | 76 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 0 |
