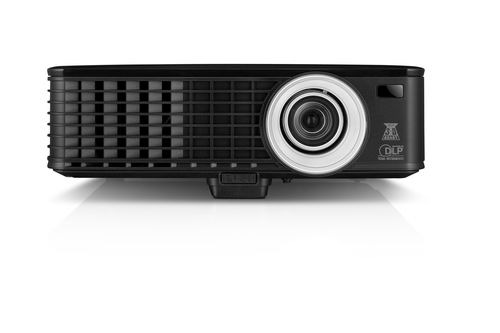

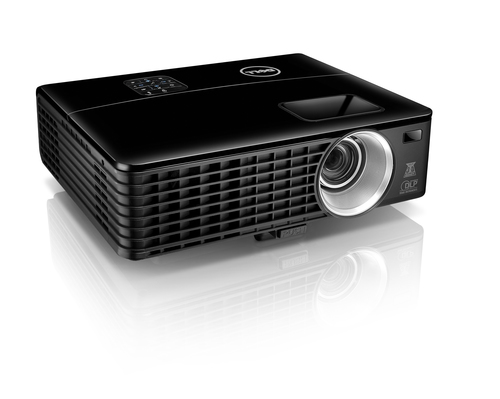

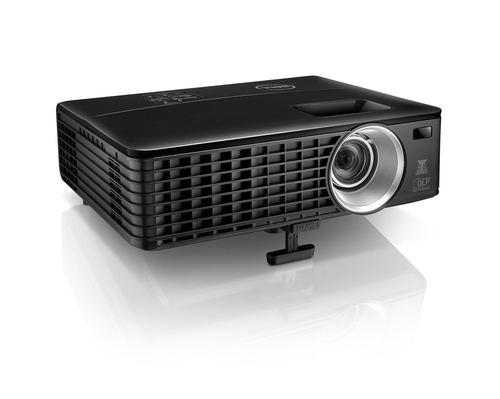

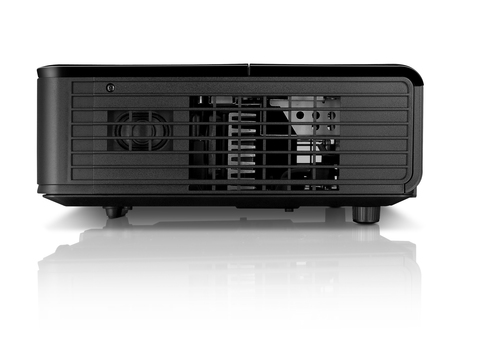

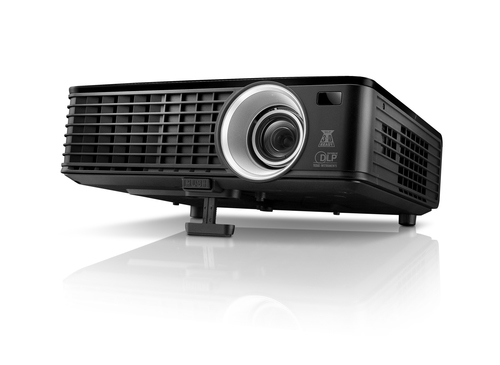

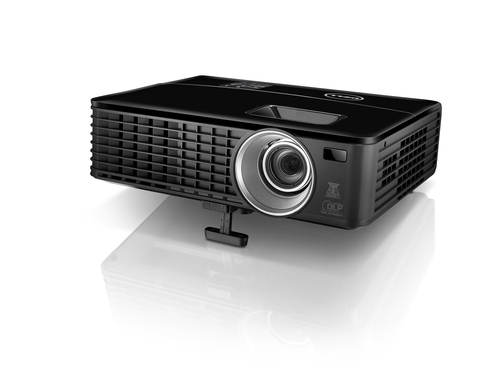

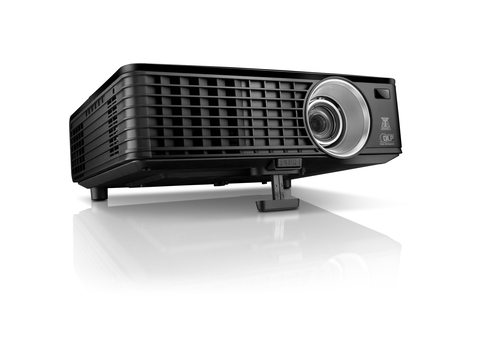

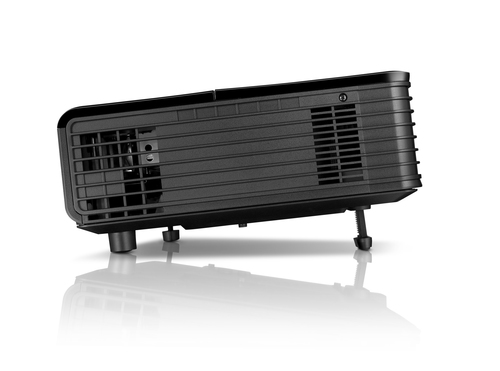

Dell 1420X Standard throw projector 2700 ANSI lumens DLP XGA (1024x768) Black
Model 1420XPart no. CFFCFEAN 8841160735362
76 specifications
- Noise33 dB
- TypeStandard throw projector
- Weight2.6 kg
- ColourBlack
- Projector brightness2700 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 33 dB
- Type
- Standard throw projector
- Weight
- 2.6 kg
- Colour
- Black
- Projector brightness
- 2700 ANSI lumens
- Light source type
- Lamp
- Brand
- Dell
- Category
- Data Projector
- Model
- 1420X
- Part numbers
- CFFCF, 210-39310
- EAN / UPC
- 8841160735362, 705381175704, 884116073536, 5397063106783 +2 more
- Also known as
- DELL 1420X Standard throw projector 2700 ANSI lumens DLP XGA (1024x768) Black
Specifications
76 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2700 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 2400:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 965.2 - 4572 mm (38 - 180") |
| Projection distance | 1 - 8 m |
| Uniformity | 85% |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 6000 h |
| Lamp power | 190 W |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 18.18 - 21.84 mm |
| Aperture range (F-F) | 2.54 - 2.73 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.64 - 1.97:1 |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, NTSC M, PAL 4.43, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| Full HD | No |
| 3D | No |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| USB connector type | Mini-USB B |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | No |
| Password protection | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | Black |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 305 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 265 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.6 kg |
| Width | 290 mm |
| Depth | 238 mm |
| Height | 90.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
