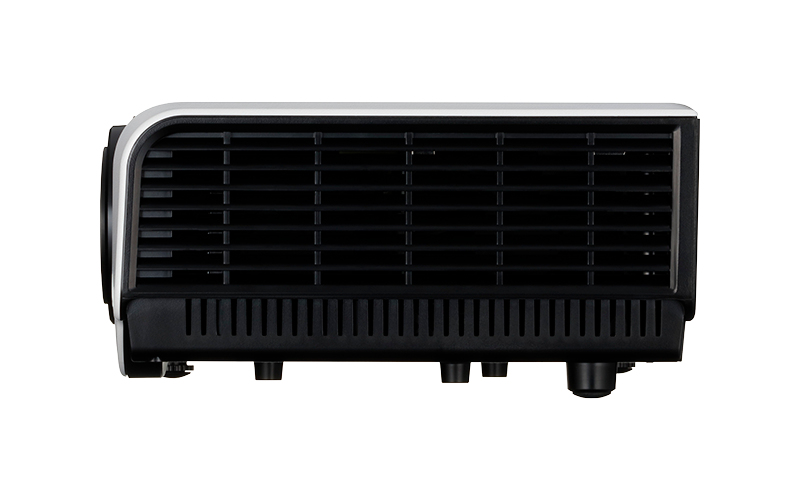

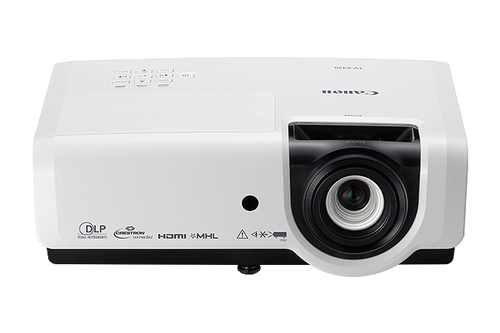

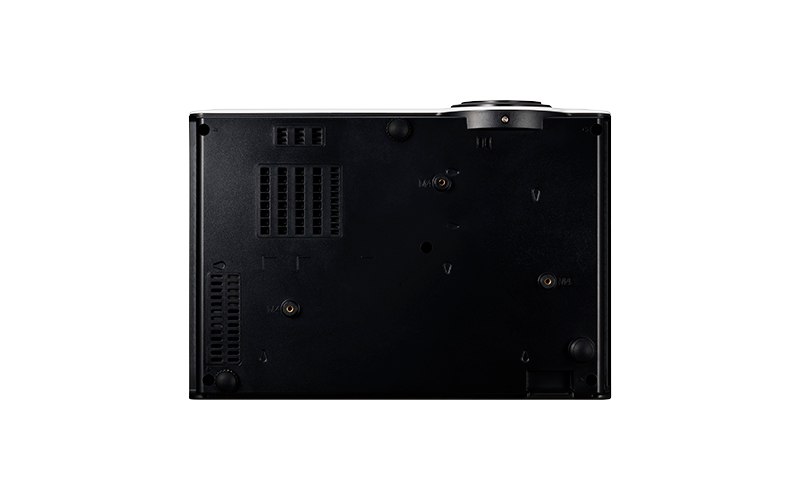

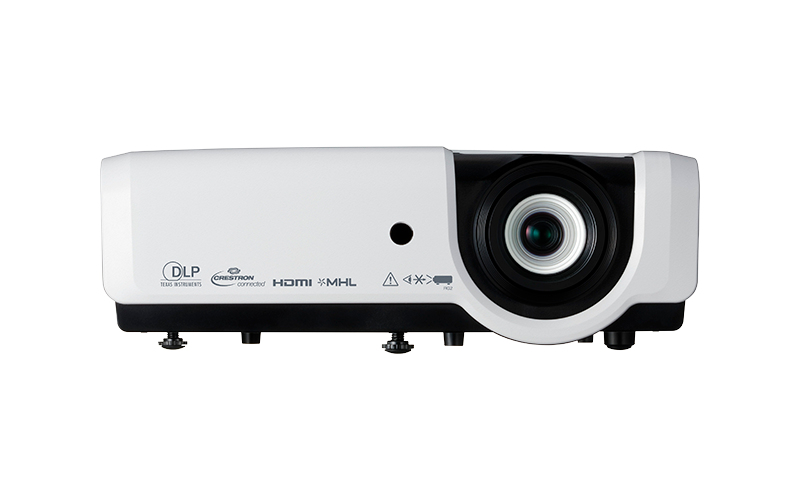

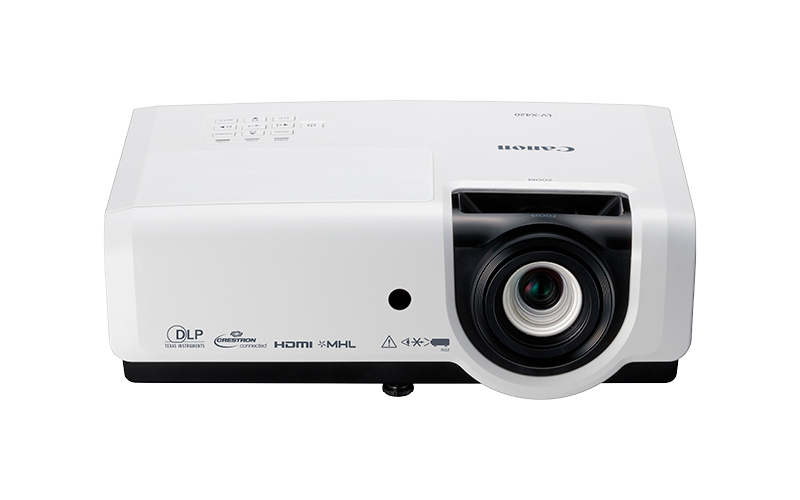

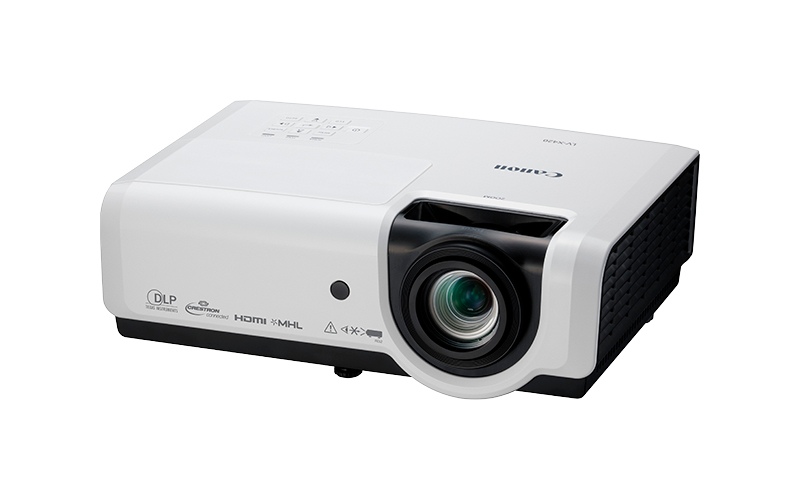

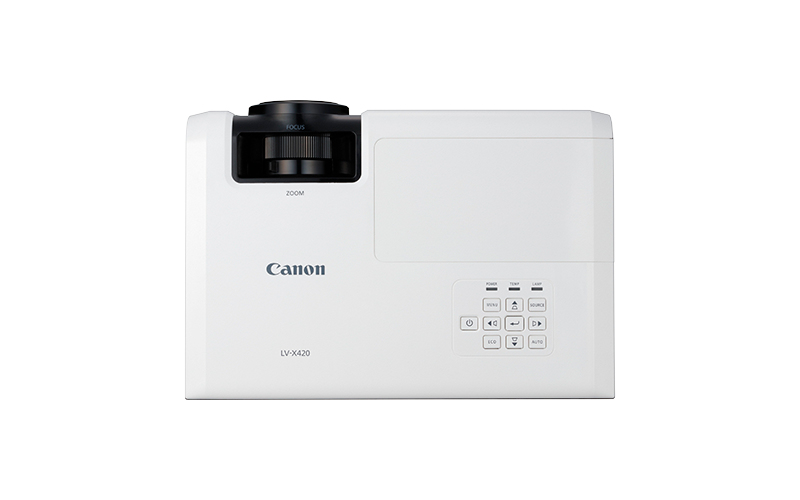

Canon LV X420 Standard throw projector 4200 ANSI lumens DLP XGA (1024x768) White

Canon LV X420 Standard throw projector 4200 ANSI lumens DLP XGA (1024x768) White

Model X420Part no. 1906C001EAN 4549292089608

88 specifications
  • Noise40 dB
  • TypeStandard throw projector
  • Weight3.4 kg
  • ColourWhite
  • Projector brightness4200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
40 dB
Type
Standard throw projector
Weight
3.4 kg
Colour
White
Projector brightness
4200 ANSI lumens
Light source type
Lamp
Brand
Canon
Model
X420
Part numbers
1906C001, 1906C006, 1906C003, 1906C002
EAN / UPC
4549292089608, 013803289237, 4549292089592
Also known as
Canon LV X420 Standard throw projector 4200 ANSI lumens DLP XGA (1024x768) White

Specifications

88 specifications in 16 groups

Projector

Projector brightness4200 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)10000:1
Native aspect ratio4:3
Supported aspect ratios2.35:1, 4:3, 16:9
Screen size compatibility762 - 6604 mm (30 - 260")
Projection distance1.2 - 10 m
Projector brightness (economic mode)3360 ANSI lumens
Uniformity80%
Horizontal scan range15.625 - 101.6 kHz
Vertical scan range24 - 120 Hz
Keystone correction, horizontal-30 - 30°
Keystone correction, vertical-30 - 30°
Matrix size1.4 cm (0.55")
Matrix typeDMD
Heat dissipation1399 BTU/h

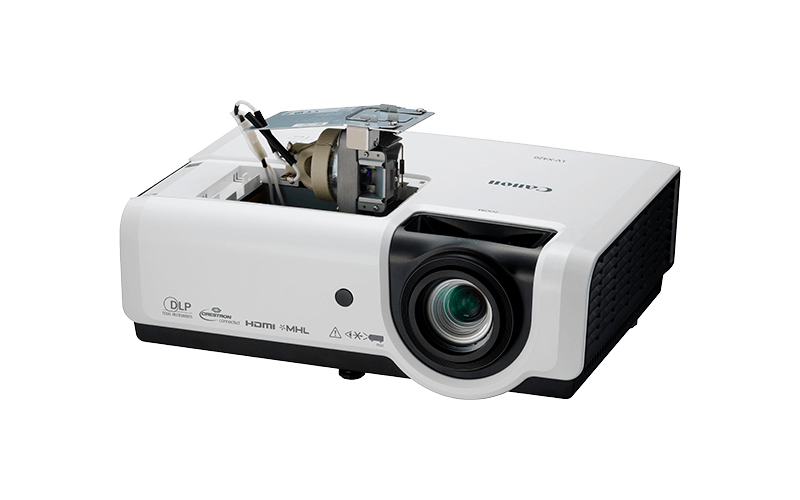

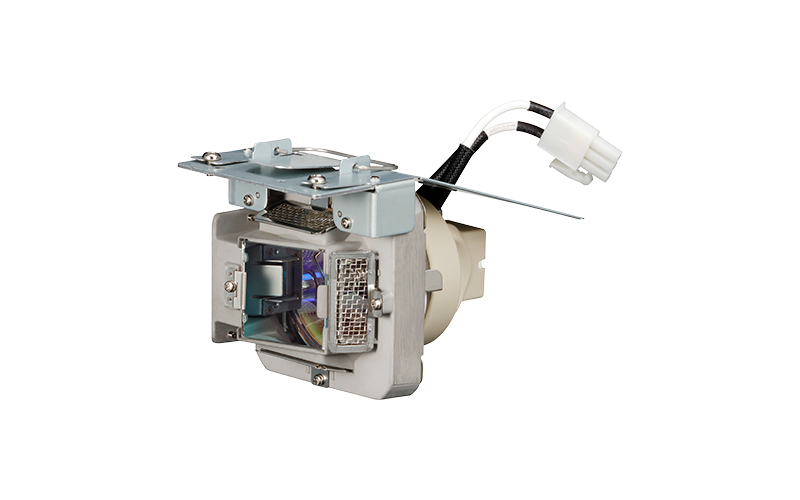

Light source

Light source typeLamp
Service life of light source2500 h
Service life of light source (economic mode)3000 h
Lamp typeSHP
Lamp power310 W
Lamp power (economic mode)245 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range20.7 - 31.1 mm
Aperture range (F-F)2.42 - 2.97
Digital zoom2x
Optical zoom1.5x
Throw ratio1.39 - 2.09:1
Vertical lens shift range-64 - 64%

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video colour modesCinema, Presentation, sRGB

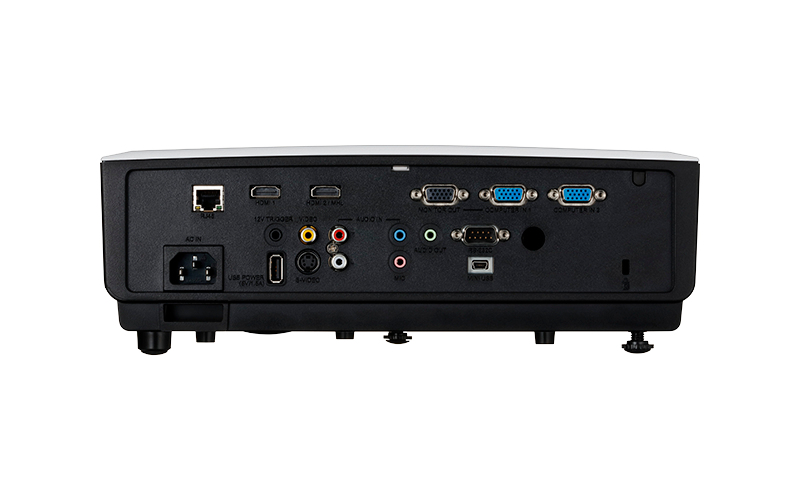

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in1
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in1
Microphone inYes
Serial interface typeRS-232C
PC Audio outYes
12V triggerYes
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level40 dB
Noise level (economic mode)36 dB

Multimedia

Built-in speaker(s)Yes
RMS rated power10 W

Design

Product typeStandard throw projector
Product colourWhite
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)410 W
Power consumption (standby)2 W
Power consumption (network standby)0.5 W
Power consumption (economy mode)320 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)10 - 85%

Weight & dimensions

Weight3.4 kg
Width314 mm
Depth231 mm
Height112 mm

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedAC, VGA
ManualYes
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
RS-232CYes
