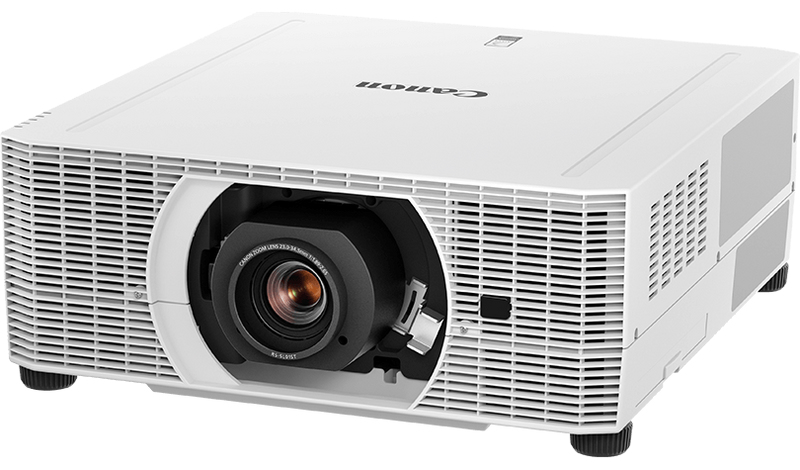

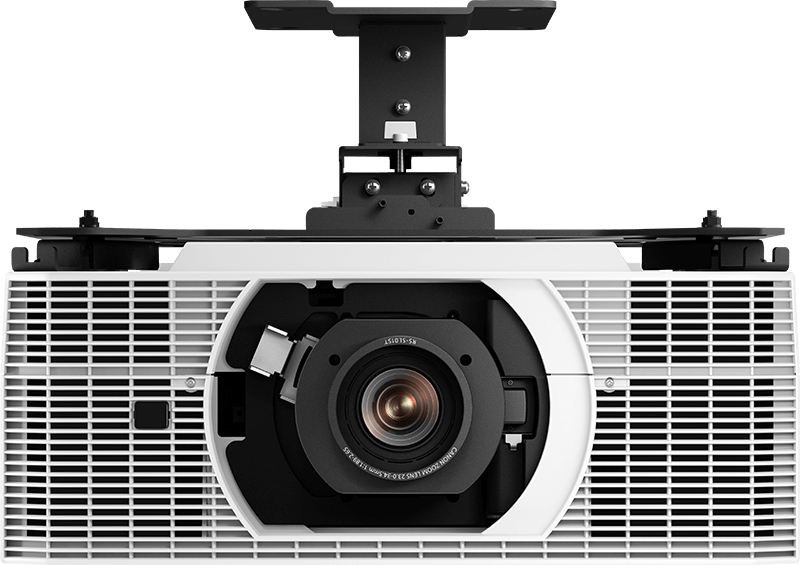

XEED WUX7000Z Large venue projector 7000 ANSI lumens LCOS WUXGA (1920x1200) White
Model WUX7000ZPart no. 2502C005EAN 8714574656601
70 specifications
- Noise36 dB
- TypeLarge venue projector
- Weight17 kg
- ColourWhite
- Projector brightness7000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 36 dB
- Type
- Large venue projector
- Weight
- 17 kg
- Colour
- White
- Projector brightness
- 7000 ANSI lumens
- Light source type
- Laser
- Brand
- Canon
- Category
- Data Projector
- Model
- WUX7000Z
- Part number
- 2502C005
- EAN / UPC
- 8714574656601
- Also known as
- Canon XEED WUX7000Z Large venue projector 7000 ANSI lumens LCOS WUXGA (1920x1200) White
Specifications
70 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 7000 ANSI lumens |
| Projection technology | LCOS |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 4000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1016 - 15240 mm (40 - 600") |
| Projection distance | 0.44 - 89 m |
| Uniformity | 90% |
| Keystone correction, horizontal | -20 - 20° |
| Keystone correction, vertical | -20 - 20° |
| Matrix size | 1.8 cm (0.71") |
| Matrix type | 3-panel (p-Si TFT active) |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Focal length range | 23 - 34.5 mm |
| Aperture range (F-F) | 1.89 - 2.65 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.5:1 |
| Throw ratio | 1.49:1 - 2.24:1 |
| Horizontal lens shift range | -10 - 10% |
| Vertical lens shift range | -15 - 55% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

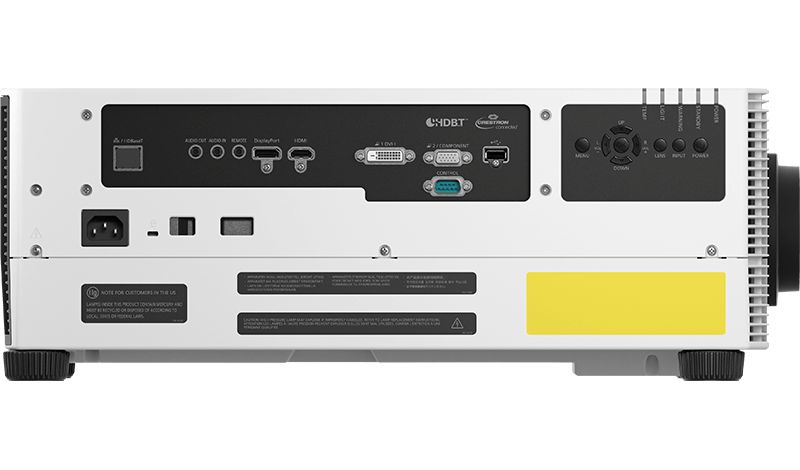

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | Yes |
| DisplayPorts quantity | 1 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 36 dB |
| Noise level (economic mode) | 29 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 1 W |
| Image formats supported | JPEG |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Desktop, Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 540 W |
| Power consumption (standby) | 2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 17 kg |
| Width | 480 mm |
| Depth | 545 mm |
| Height | 196 mm |
