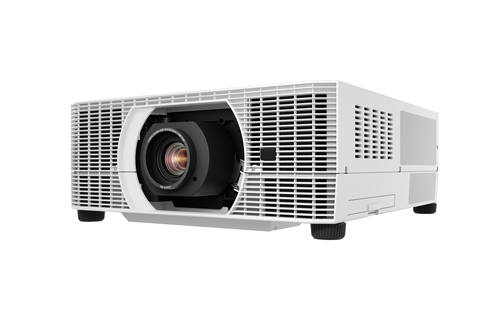

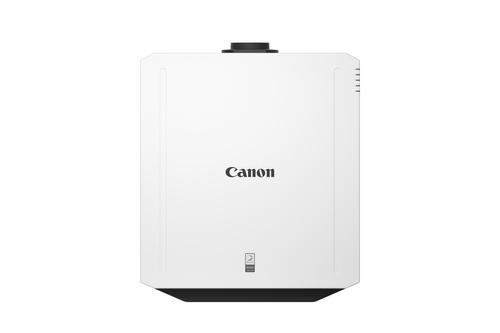

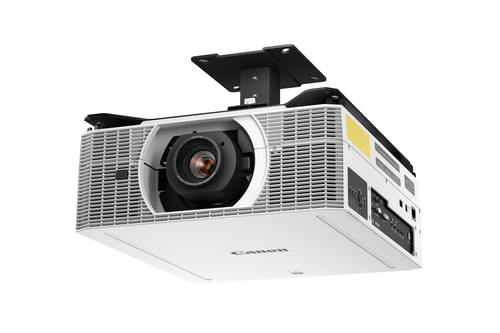

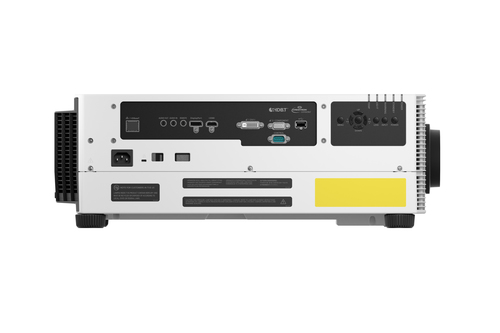

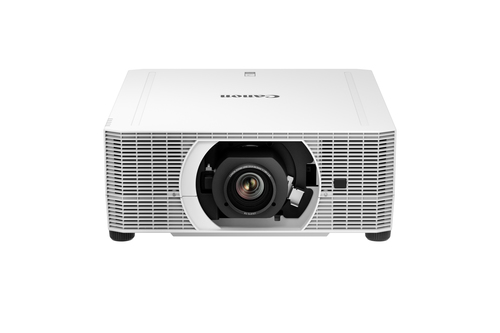

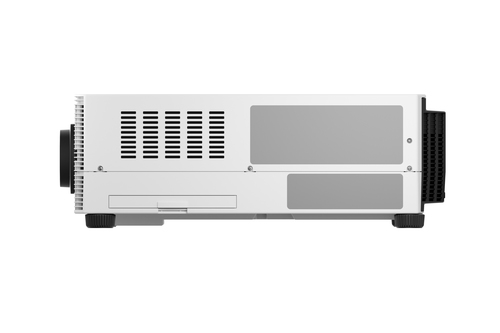

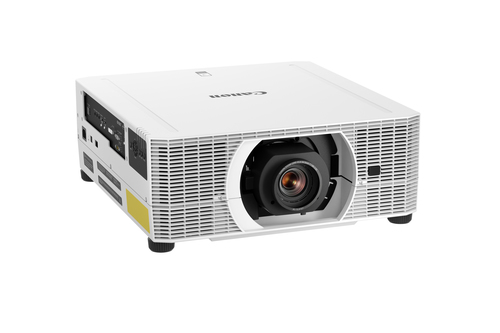

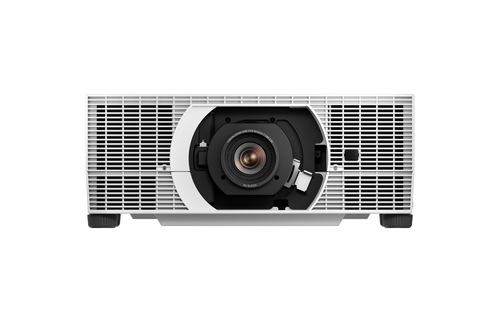

Canon XEED WUX5800Z Large venue projector 5800 ANSI lumens LCOS WUXGA (1920x1200) White

Canon XEED WUX5800Z Large venue projector 5800 ANSI lumens LCOS WUXGA (1920x1200) White

Model WUX5800ZPart no. 2500C003EAN 4549292116786

80 specifications
  • Noise35 dB
  • TypeLarge venue projector
  • Weight17 kg
  • ColourWhite
  • Projector brightness5800 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
35 dB
Type
Large venue projector
Weight
17 kg
Colour
White
Projector brightness
5800 ANSI lumens
Light source type
Laser
Brand
Canon
Model
WUX5800Z
Part number
2500C003
EAN / UPC
4549292116786
Also known as
Canon XEED WUX5800Z Large venue projector 5800 ANSI lumens LCOS WUXGA (1920x1200) White

Specifications

80 specifications in 17 groups

Projector

Projector brightness5800 ANSI lumens
Projection technologyLCOS
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)4000:1
Native aspect ratio16:10
Screen size compatibility1016 - 15240 mm (40 - 600")
Projection distance0.44 - 89 m
Projector brightness (economic mode)4060 ANSI lumens
Uniformity90%
Horizontal scan range15.625 - 75 kHz
Vertical scan range24 - 60 Hz
Keystone correction, horizontal-20 - 20°
Keystone correction, vertical-20 - 20°
Matrix size1.8 cm (0.71")
Matrix type3-panel (p-Si TFT active)
Heat dissipation1654 BTU/h

Light source

Light source typeLaser

Lens system

FocusAuto
Focal length range23 - 34.5 mm
Aperture range (F-F)1.89 - 2.65
Zoom capabilityYes
Zoom typeAuto
Digital zoom12x
Optical zoom1.5x
Throw ratio1.49 - 2.24:1
Horizontal lens shift range-10 - 10%
Vertical lens shift range-15 - 55%

Video

Full HDYes
3DNo
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video colour modesCinema, Dynamic, Photo, Presentation, sRGB

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portYes
DisplayPorts quantity1
S-Video inputs quantity0
HDBaseT portYes
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)

Storage

Card reader integratedNo

Features

Noise level35 dB
Noise level (economic mode)32 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power1 W
Image formats supportedJPEG

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)485 W
Power consumption (standby)2 W
Power consumption (PowerSave)394 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 85%

Weight & dimensions

Weight17 kg
Width480 mm
Depth545 mm
Height196 mm

Packaging content

Remote control includedYes
Remote control typeIR

Logistics data

Harmonized System (HS) code85286200

Other features

RS-232 ports1
