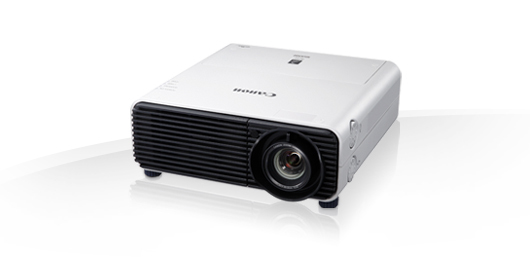

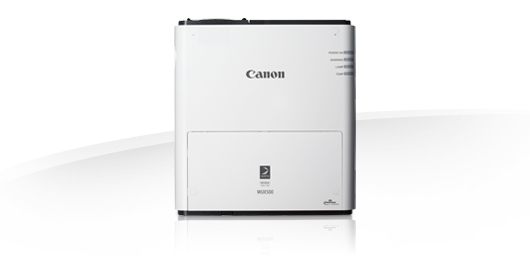

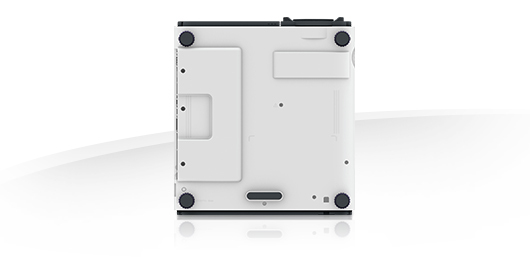

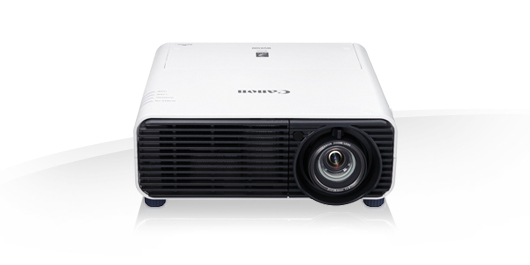

Canon WUX500 Medical

Canon WUX500 Medical

Model WUX500 MedicalPart no. 0071C005EAN 8714574629803

75 specifications
  • Noise37 dB
  • TypeStandard throw projector
  • Weight5.9 kg
  • ColourBlack, White
  • Projector brightness5000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
37 dB
Type
Standard throw projector
Weight
5.9 kg
Colour
Black, White
Projector brightness
5000 ANSI lumens
Light source type
Lamp
Brand
Canon
Model
WUX500 Medical
Part number
0071C005
EAN / UPC
8714574629803
Also known as
Canon WUX500 Medical Standard throw projector 5000 ANSI lumens LCOS WUXGA (1920x1200) Black, White

Specifications

75 specifications in 14 groups

Projector

Projector brightness5000 ANSI lumens
Projection technologyLCOS
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)2000:1
Native aspect ratio16:10
Screen size compatibility1016 - 7620 mm (40 - 300")
Projection distance1.2 - 16.2 m
Projector brightness (economic mode)3800 ANSI lumens
Uniformity90%
Keystone correction, horizontal-20 - 20°
Keystone correction, vertical-20 - 20°
Matrix size1.8 cm (0.71")
Matrix type3-panel (p-Si TFT active)

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)5000 h
Lamp typeNSHA
Lamp power260 W
Lamp power (economic mode)200 W

Lens system

FocusManual
Focal length range21.7 - 39 mm
Aperture range (F-F)2.8 - 2.8
Zoom ratio1.8:1
Digital zoom12x
Throw ratio1.39 - 2.51:1
Horizontal lens shift range-10 - 10%
Vertical lens shift range0 - 60%

Video

Full HDYes
Supported graphics resolutions640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576p, 720p, 1080i, 1080p
Video colour modesPhoto, Presentation, sRGB

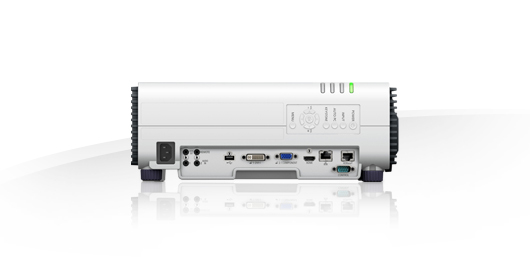

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI connector typeFull-size
HDMI version1.4
DVI portYes
HDBaseT portYes
USB 2.0 ports quantity1
Serial interface typeRS-232C
PC Audio inYes
PC Audio outYes
Remote (IR) output1
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiYes

Features

Noise level37 dB
Noise level (economic mode)30 dB
HDCPYes

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power5 W

Design

Product typeStandard throw projector
Product colourBlack, White
PlacementDesktop, Ceiling

Power

Power sourceAC
Power consumption (typical)365 W
Power consumption (standby)1.3 W
Power consumption (economy mode)295 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Weight5.9 kg
Width337 mm
Depth370 mm
Height136 mm

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedAC, VGA
ManualYes
Warranty cardYes

Other features

RS-232CYes
