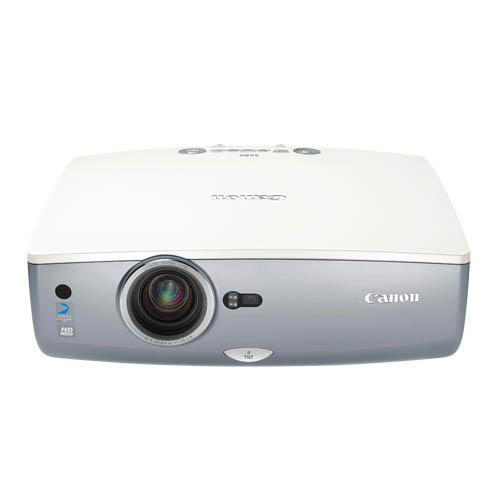

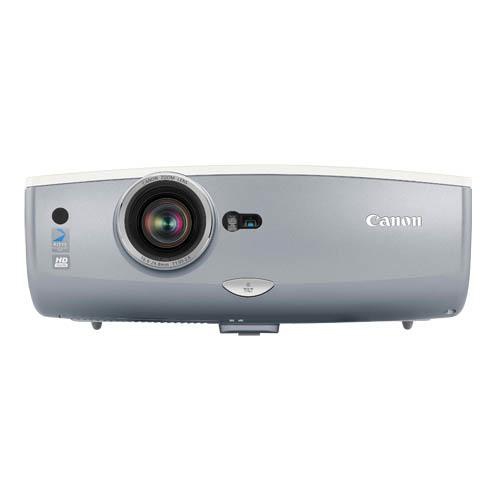

Canon SX80 MarK II

Canon SX80 MarK II

Model SX80 MarK IIPart no. 4232B006EAN 5052179075629

63 specifications
  • Noise35 dB
  • Weight5.2 kg
  • ColourWhite
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
  • FocusAuto/Manual
See all specifications

Overview

Noise
35 dB
Weight
5.2 kg
Colour
White
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Focus
Auto/Manual
Brand
Canon
Model
SX80 MarK II
Part number
4232B006
EAN / UPC
5052179075629
Also known as
Canon XEED SX80 MarK II 3000 ANSI lumens LCOS SXGA+(1400x1050) White

Specifications

63 specifications in 14 groups

Projector

Projector brightness3000 ANSI lumens
Projection technologyLCOS
Projector native resolutionSXGA+(1400x1050)
Contrast ratio (typical)900:1
Screen size compatibility1016 - 7620 mm (40 - 300")
Projection distance1.2 - 9.1 m
Uniformity88%
Horizontal scan range15 - 75 kHz
Vertical scan range50 - 85 Hz
Digital gamma correctionYes
Keystone correction, vertical± 20°
Matrix size1.4 cm (0.55")
Matrix type3-panel (p-Si TFT active)

Light source

Light source typeLamp
Lamp typeNSH
Lamp power230 W

Lens system

FocusAuto/Manual
Focal length range16.6 - 24.8 mm
F-number (relative aperture)1.95
Zoom capabilityYes
Zoom typeAuto/Manual
Digital zoom12x
Magnification1.5x

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL L, PAL N, SECAM
Full HDNo
3DNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 720p

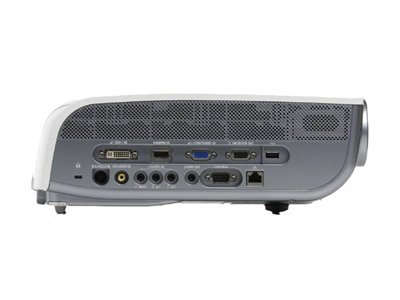

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Component video (YPbPr/YCbCr) in2
Composite video in1
DVI portYes
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in1
Serial interface typeRS-232
USB connector typeUSB Type-A
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Features

Noise level35 dB
Noise level (economic mode)31 dB
Dot clock scanning frequency170 MHz

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power1 W

Design

Product colourWhite

Power

Power consumption (typical)330 W
Power consumption (standby)15 W
Power consumption (PowerSave)270 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-30 - 60 °C

Weight & dimensions

Weight5.2 kg

Packaging content

Remote control includedNo

Other features

Aspect ratio4:3
Audio input3
Audio output1
Dimensions (WxDxH)332 x 340 x 121 mm
RS-232 ports1
