Canon REALiS WUX500ST

Canon REALiS WUX500ST

Model REALiS WUX500STPart no. 2136C002EAN 013803289978

84 specifications
  • Noise38 dB
  • TypeShort throw projector
  • Weight6.3 kg
  • ColourBlack, White
  • Projector brightness5000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
38 dB
Type
Short throw projector
Weight
6.3 kg
Colour
Black, White
Projector brightness
5000 ANSI lumens
Light source type
Lamp
Brand
Canon
Model
REALiS WUX500ST
Part number
2136C002
EAN / UPC
013803289978
Also known as
Canon REALiS WUX500ST Short throw projector 5000 ANSI lumens LCOS WUXGA (1920x1200) Black, White

Specifications

84 specifications in 16 groups

Projector

Projector brightness5000 ANSI lumens
Projection technologyLCOS
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)2000:1
Native aspect ratio16:10
Screen size compatibility762 - 7620 mm (30 - 300")
Projector brightness (economic mode)3460 ANSI lumens
Uniformity80%
Horizontal scan range15.734 - 75 kHz
Vertical scan range24 - 60.317 Hz
Keystone correction, horizontal-12 - 12°
Keystone correction, vertical-12 - 12°
Matrix size1.8 cm (0.71")
Matrix type3-panel (p-Si TFT active)

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)5000 h
Lamp typeSHP
Lamp power280 W
Lamp power (economic mode)200 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Fixed focal length8.8 mm
Aperture range (F-F)2.7 - 2.7
Digital zoom12x
Throw ratio0.56:1
Horizontal lens shift range-10 - 10%
Vertical lens shift range0 - 75%

Video

Full HDYes
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video colour modesPhoto, Presentation, sRGB

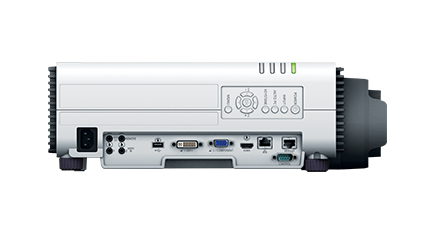

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portYes
S-Video inputs quantity0
HDBaseT portYes
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232C
PC Audio inYes
PC Audio outYes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiYes

Storage

Card reader integratedNo

Features

Noise level38 dB
Noise level (economic mode)30 dB
Dot clock scanning frequency162 MHz

Multimedia

Built-in speaker(s)Yes
RMS rated power5 W
Image formats supportedJPG

Design

Product typeShort throw projector
Product colourBlack, White

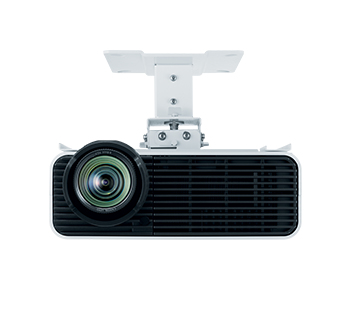

PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)395 W
Power consumption (standby)1.8 W
Power consumption (network standby)0.2 W
Power consumption (economy mode)295 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 85%

Weight & dimensions

Weight6.3 kg
Width337 mm
Depth415 mm
Height136 mm

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedAC, VGA
ManualYes
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
RS-232CYes
