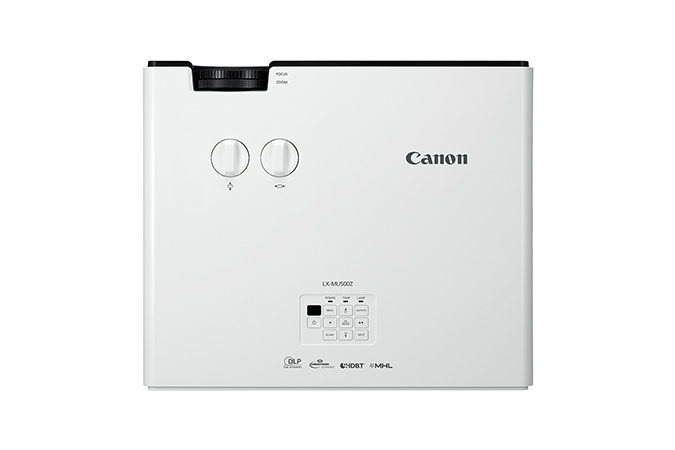

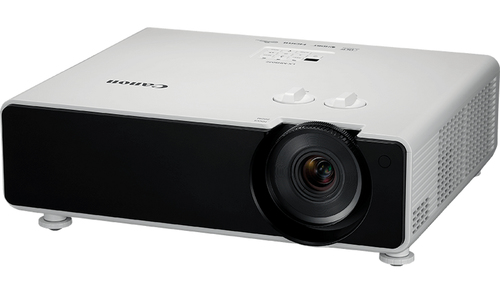

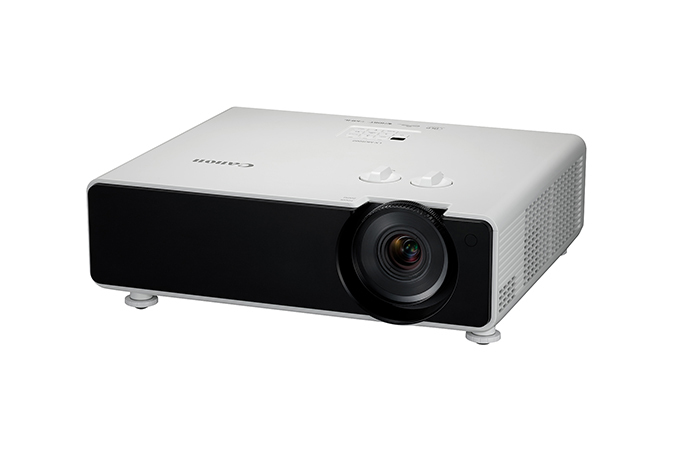

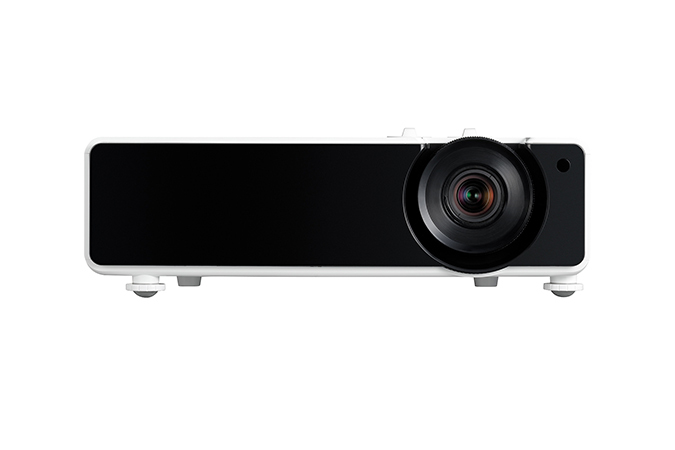

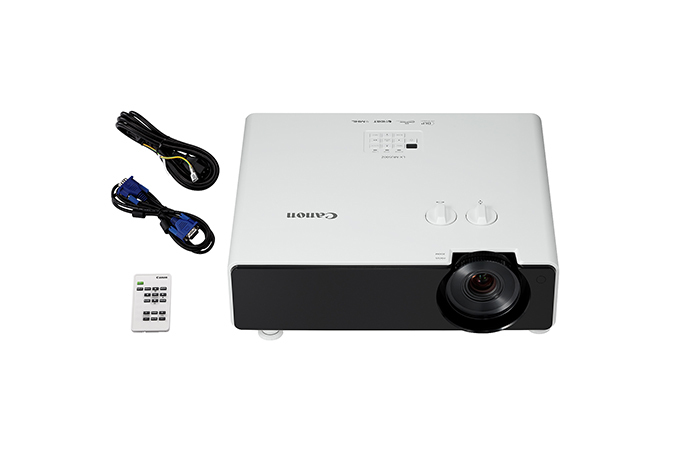

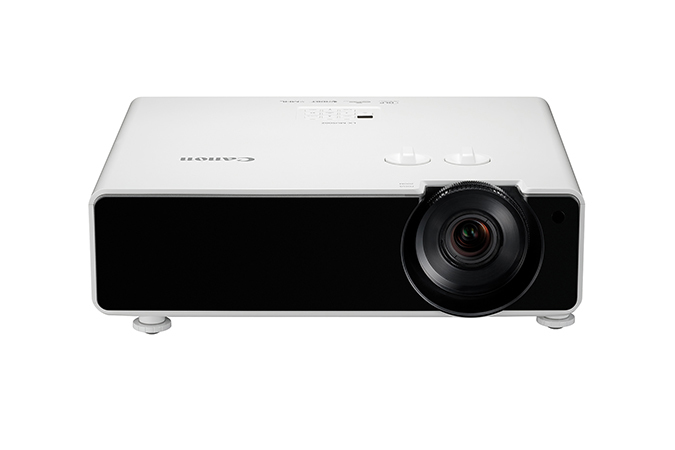

Canon LX MU500Z Standard throw projector 5000 ANSI lumens DLP WUXGA (1920x1200) 3D Black, White
Model MU500ZPart no. 2632C002EAN 013803306675
72 specifications
- Noise37 dB
- TypeStandard throw projector
- Weight8.9 kg
- ColourBlack, White
- Projector brightness5000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 37 dB
- Type
- Standard throw projector
- Weight
- 8.9 kg
- Colour
- Black, White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Brand
- Canon
- Category
- Data Projector
- Model
- MU500Z
- Part number
- 2632C002
- EAN / UPC
- 013803306675
- Also known as
- Canon LX MU500Z Standard throw projector 5000 ANSI lumens DLP WUXGA (1920x1200) 3D Black, White
Specifications
72 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Projection distance | 1.75 - 9.32 m |
| Contrast ratio (dynamic) | 50000:1 |
| Projector brightness (economic mode) | 3750 ANSI lumens |
| Uniformity | 65% |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.22 cm (0.48") |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 1.81 - 2.1 mm |
| Aperture range (F-F) | 14.3 - 22.9 |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Digital zoom | 2x |
| Throw ratio | 1.36 - 2.18:1 |
| Vertical lens shift range | -50 - 50° |
| Horizontal lens shift range | -23 - 23% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported 3D formats | Frame Sequential, Frame packing, Side by side, Top and bottom |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video colour modes | Presentation, sRGB |

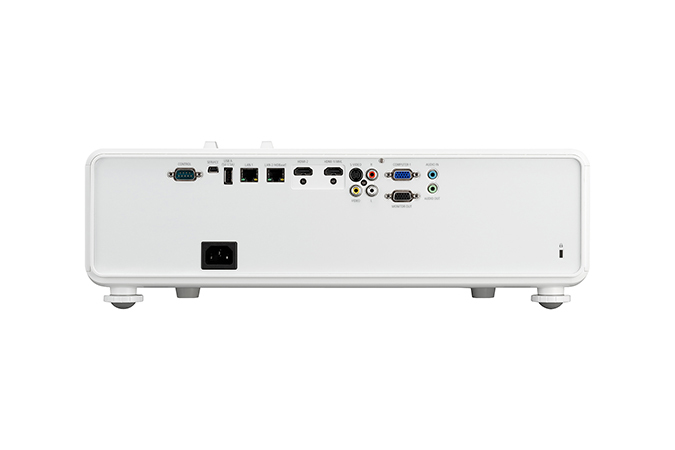

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| Mobile High-Definition Link (MHL) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 35 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | Black, White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 490 W |
| Power consumption (standby) | 2 W |
| Power consumption (network standby) | 0.5 W |
| Power consumption (economy mode) | 395 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8.9 kg |
| Width | 450 mm |
| Depth | 379 mm |
| Height | 154 mm |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
