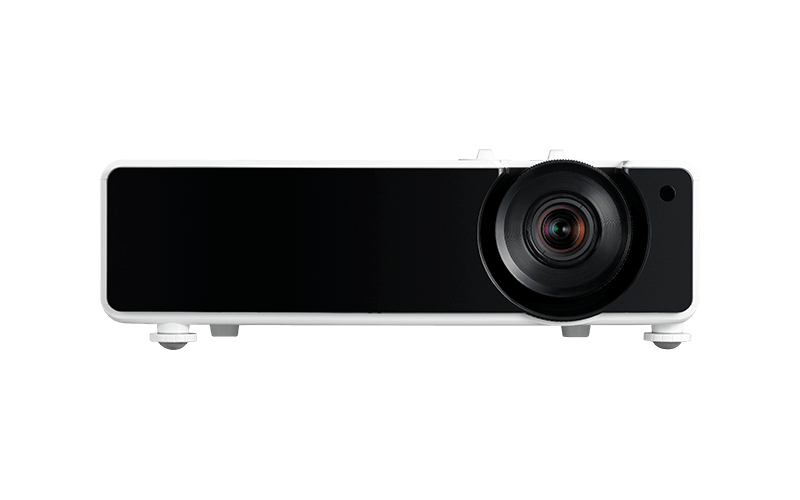

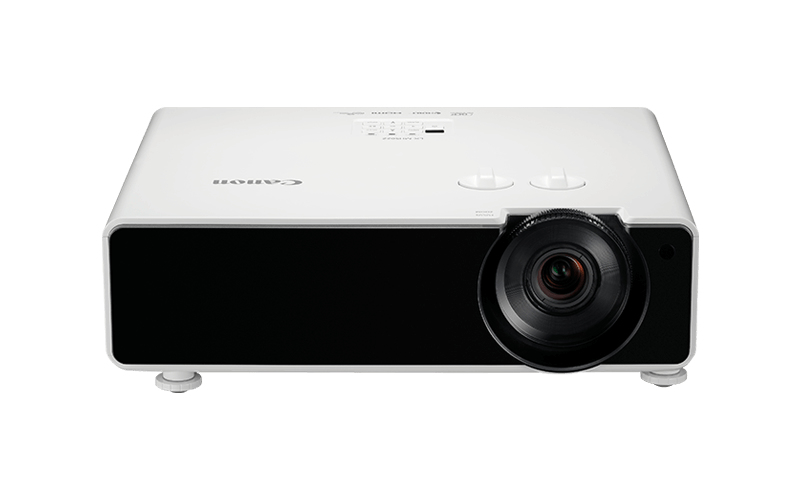

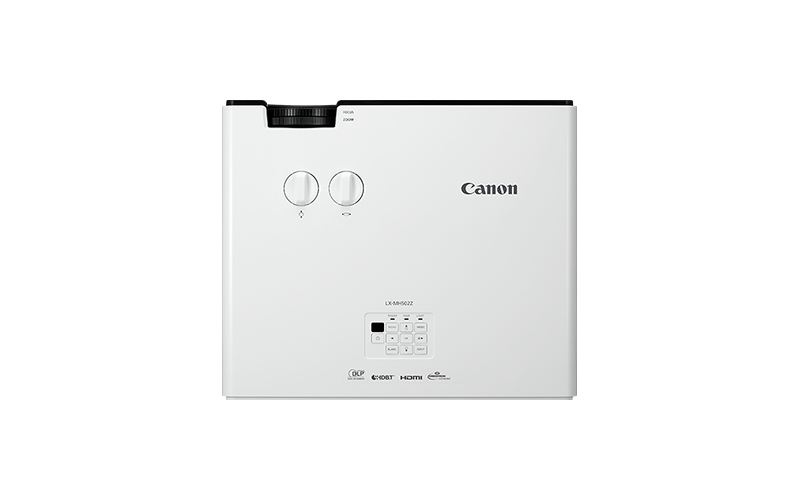

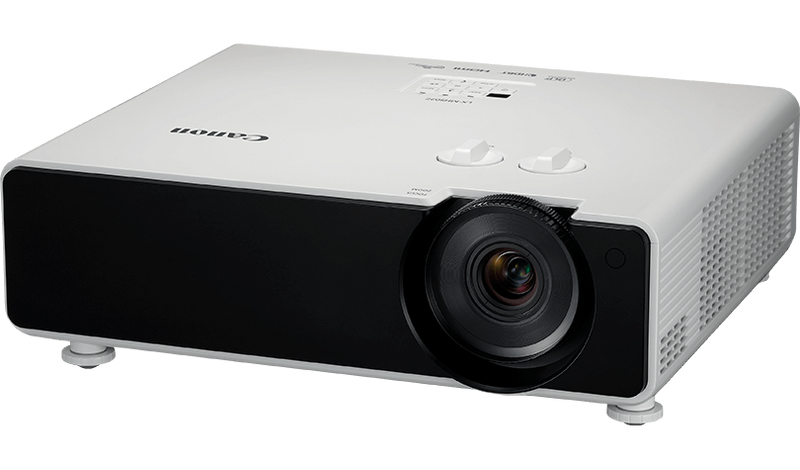

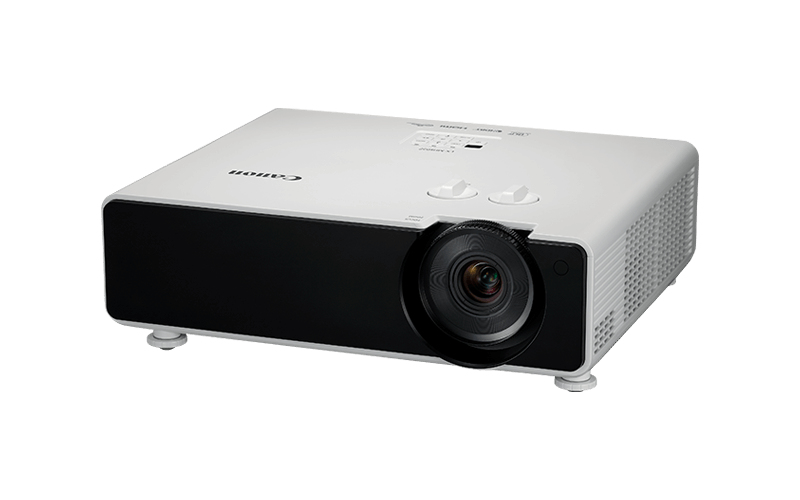

Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White
Model LX-MH502ZPart no. 3576C003AAEAN 4549292135961
72 specifications
- Noise39 dB
- TypeStandard throw projector
- Weight9.3 kg
- ColourBlack, White
- Projector brightness5000 ANSI lumens
- Light source typeLaser/LED hybrid
Overview
- Noise
- 39 dB
- Type
- Standard throw projector
- Weight
- 9.3 kg
- Colour
- Black, White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser/LED hybrid
- Brand
- Canon
- Category
- Data Projector
- Model
- LX-MH502Z
- Part number
- 3576C003AA
- EAN / UPC
- 4549292135961
- Also known as
- Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White
Specifications
72 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Projection distance | 1.8 - 9.58 m |
| Contrast ratio (dynamic) | 50000:1 |
| Projector brightness (economic mode) | 3750 ANSI lumens |
| Uniformity | 80% |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser/LED hybrid |
| Service life of light source | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 1.81 - 2.1 mm |
| Aperture range (F-F) | 14.3 - 22.9 |
| Zoom type | Manual |
| Horizontal lens shift range | -23 - 23% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |

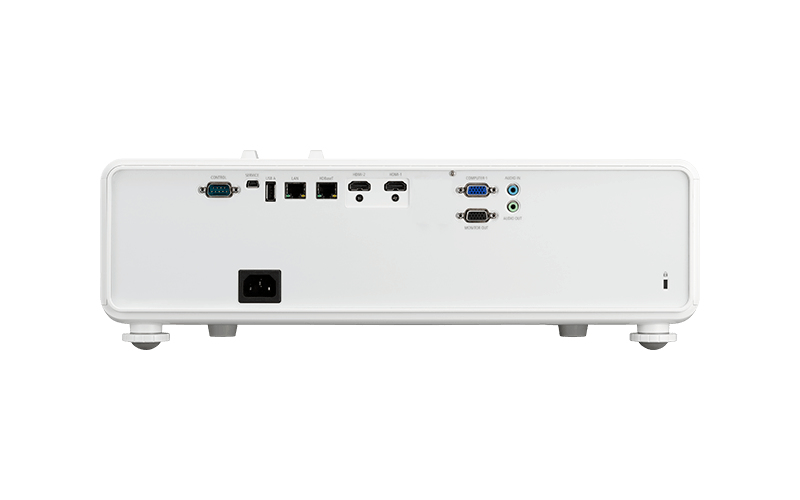

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| PC in (D-Sub) | Yes |
| Mobile High-Definition Link (MHL) | No |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 39 dB |
| Preset modes | Blackboard, Cinema, Presentation, Standard, sRGB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | Black, White |
| Placement | Desktop |
| Cable lock slot | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 510 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.3 kg |
| Width | 450 mm |
| Depth | 379 mm |
| Height | 154 mm |

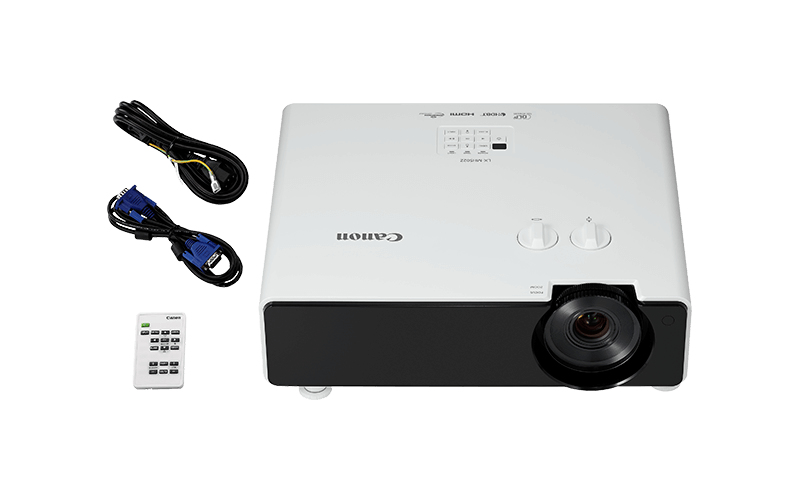

Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
What people say
Reviews & ratings
Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White
No reviews yet
Be the first to tell others how Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White
All data projector comparisons- Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White vsCanon Rayo S1Compare specs
- Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White vsCanon XEED 4K5020Z Large venue projector 5000 ANSI lumens LCOS DCI 4K (4096x2160) BlackCompare specs
- Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White vsCanon M-i1 Portable projector 50 ANSI lumens LED 1080p (1920x1080) SilverCompare specs
- Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White vsCanon LX MU500Z Standard throw projector 5000 ANSI lumens DLP WUXGA (1920x1200) 3D Black, WhiteCompare specs
- Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White vsBenQ SU765 Standard throw projector 5500 ANSI lumens DLP WUXGA (1920x1200) 3D WhiteCompare specs
- Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White vsBenQ SU754+ Standard throw projector 5000 ANSI lumens DLP WUXGA (1920x1200) WhiteCompare specs
- Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White vsNEC NP-P525UL data projector Standard throw projector 5200 ANSI lumens LCD UHD 4K (3840x2160) WhiteCompare specs

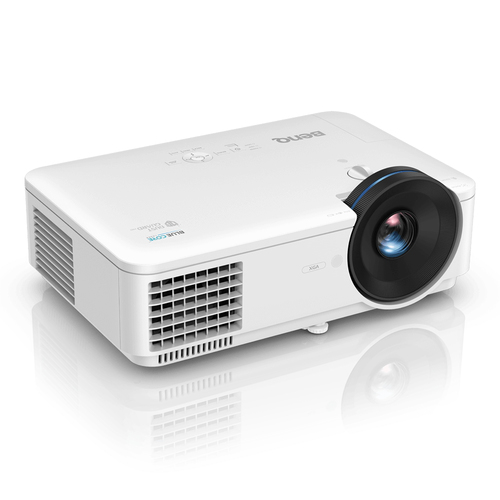

- Canon LX -MH502Z Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) Black, White vsBenQ LX720 data projector Standard throw projector 4000 ANSI lumens DMD XGA (1024x768) 3D WhiteCompare specs
