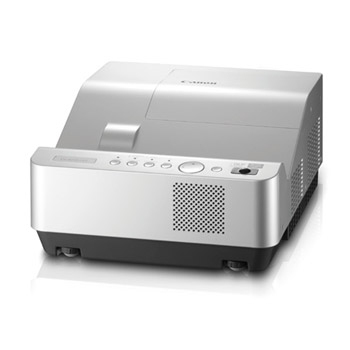

Canon LV-8235 UST

Canon LV-8235 UST

Model LV-8235 USTPart no. 5805B003EAN 4960999813219

62 specifications
  • ConnectivityWired
  • Noise36 dB
  • TypeUltra short throw projector
  • Weight6.2 kg
  • ColourWhite
  • Projector brightness2500 ANSI lumens
See all specifications

Overview

Connectivity
Wired
Noise
36 dB
Type
Ultra short throw projector
Weight
6.2 kg
Colour
White
Projector brightness
2500 ANSI lumens
Brand
Canon
Model
LV-8235 UST
Part number
5805B003
EAN / UPC
4960999813219
Also known as
Canon LV -8235 UST Ultra short throw projector 2500 ANSI lumens DLP WXGA (1280x800) White

Specifications

62 specifications in 14 groups

Projector

Projector brightness2500 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)2000:1
Screen size compatibility1524 - 2794 mm (60 - 110")
Number of colours1.073 billion colours
Uniformity78%
Keystone correction, vertical± 5°
Matrix size1.65 cm (0.65")

Light source

Light source typeLamp
Lamp typeNSH
Lamp power275 W
Lamp power (economic mode)305 W

Lens system

FocusManual
Focal length range2.5 - 4.83 mm
Zoom capabilityYes
Zoom typeManual
Digital zoom4x

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Full HDNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Component video (YPbPr/YCbCr) in1
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity0
Audio (L/R) in1
Headphone outputs1
Serial interface typeRS-232
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Features

Noise level36 dB
Noise level (economic mode)28 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power10 W

Design

Product typeUltra short throw projector
Product colourWhite

Power

Power consumption (typical)375 W
Power consumption (standby)0.85 W
Power consumption (PowerSave)305 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)10 - 60 °C

Weight & dimensions

Weight6.2 kg
Width321 mm
Depth386 mm
Height178 mm

Packaging content

Remote control includedNo

Other features

Aspect ratio16:10
Audio input1
Audio output1
Connectivity technologyWired
Dimensions (WxDxH)321 x 386 x 178 mm
RS-232 ports1
Resolution1280 x 800 pixels
