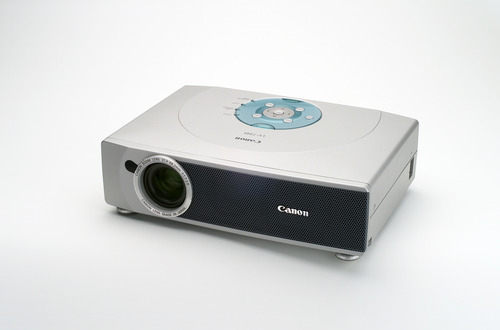

LV-7345 XGA
Model LV-7345 XGAPart no. 7401A001
21 specifications
- Display2.29 cm (0.9")
- Noise37 dB
- Weight4 kg
- Projector brightness2100 ANSI lumens
- Light source typeLamp
- Digital zoom1.3x
Overview
- Display
- 2.29 cm (0.9")
- Noise
- 37 dB
- Weight
- 4 kg
- Projector brightness
- 2100 ANSI lumens
- Light source type
- Lamp
- Digital zoom
- 1.3x
- Brand
- Canon
- Category
- Data Projector
- Model
- LV-7345 XGA
- Part number
- 7401A001
- Also known as
- Canon LV-7345 XGA 2100 ANSI lumens XGA (1024x768)
Specifications
21 specifications in 10 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2100 ANSI lumens |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 350:1 |
| Uniformity | 85% |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 50 - 100 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamp type | UHP |
| Lamp power | 200 W |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 1.3x |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Dot clock scanning frequency | 140 MHz |
Multimedia
| Specification | Value |
|---|---|
| Number of built-in speakers | 1 |
Display
| Specification | Value |
|---|---|
| Display diagonal | 2.29 cm (0.9") |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 300 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 331.5 x 89.5 x 231.7 mm |
| Horizontal resolution | 800 lines |
| Resolution | 1024 x 768 pixels |
