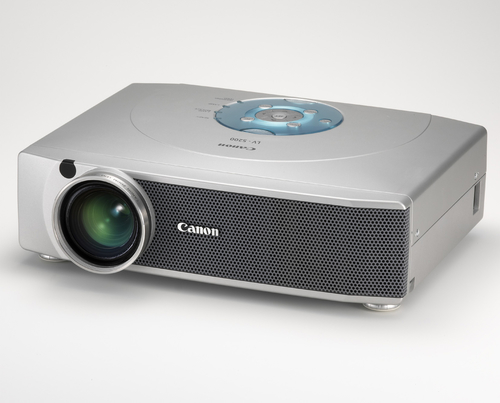

LV-5200 BODY SVGA
Model LV-5200 BODY SVGAPart no. 8609A003
21 specifications
- Display2.03 cm (0.8")
- Noise34 dB
- Weight4.3 kg
- Projector brightness1700 ANSI lumens
- Light source typeLamp
- FocusAuto
Overview
- Display
- 2.03 cm (0.8")
- Noise
- 34 dB
- Weight
- 4.3 kg
- Projector brightness
- 1700 ANSI lumens
- Light source type
- Lamp
- Focus
- Auto
- Brand
- Canon
- Category
- Data Projector
- Model
- LV-5200 BODY SVGA
- Part number
- 8609A003
- Also known as
- Canon LV-5200 BODY SVGA 1700 ANSI lumens SVGA (800x600)
Specifications
21 specifications in 10 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1700 ANSI lumens |
| Projector native resolution | SVGA (800x600) |
| Contrast ratio (typical) | 350:1 |
| Uniformity | 85% |
| Horizontal scan range | 15 - 80 kHz |
| Vertical scan range | 50 - 100 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamp power | 180 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Digital zoom | 1.5x |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
| Dot clock scanning frequency | 140 MHz |
| Plug and Play | Yes |
Multimedia
| Specification | Value |
|---|---|
| Number of built-in speakers | 1 |
Display
| Specification | Value |
|---|---|
| Display diagonal | 2.03 cm (0.8") |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 300 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.3 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 331.5 x 89.5 x 244.1 mm |
| Horizontal resolution | 500 lines |
