Canon 8235 UST

Canon 8235 UST

Model 8235 USTPart no. 5805B002EAN 013803143263

66 specifications
  • Noise36 dB
  • Weight6.21 kg
  • ColourBlack, Silver
  • Projector brightness2500 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Noise
36 dB
Weight
6.21 kg
Colour
Black, Silver
Projector brightness
2500 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
Canon
Model
8235 UST
Part numbers
5805B002, 5805B005
EAN / UPC
013803143263, 138031432634, 8714574577593
Also known as
Canon LV 8235 UST 2500 ANSI lumens DLP WXGA (1280x800) Black, Silver

Specifications

66 specifications in 16 groups

Projector

Projector brightness2500 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)2000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1524 - 2794 mm (60 - 110")
Projection distance0.23 - 0.455 m
Uniformity78%
Horizontal scan range15 - 93 kHz
Vertical scan range50 - 120 Hz
Keystone correction, vertical±5°

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)3000 h
Lamp typeNSHA
Lamp power275 W

Lens system

FocusManual
Zoom ratio2.0:1
Throw ratio0.19:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3DNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1035i, 1080i, 1080p, 480i, 480p, 576i, 576p, 720p

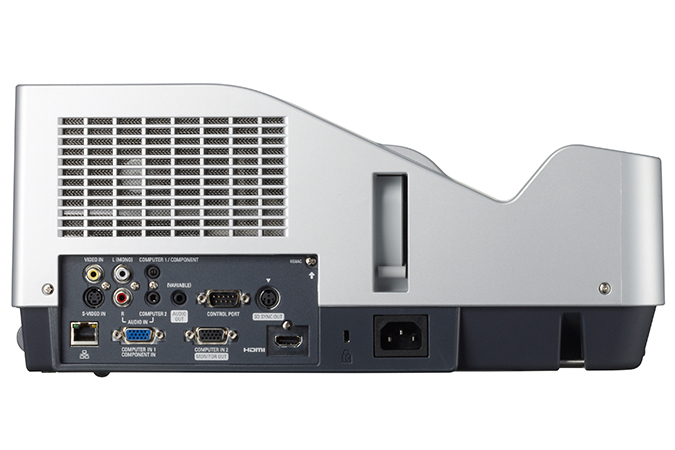

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity0
Audio (L/R) in1
Headphone outputs1
Serial interface typeRS-232
PC Audio inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level36 dB
Noise level (economic mode)28 dB
Preset modesCinema, Presentation, Standard

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power10 W

Design

Product colourBlack, Silver

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)400 W
Power consumption (PowerSave)320 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Storage relative humidity (H-H)5 - 80%

Weight & dimensions

Weight6.21 kg
Width320 mm
Depth386.1 mm
Height170.2 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
