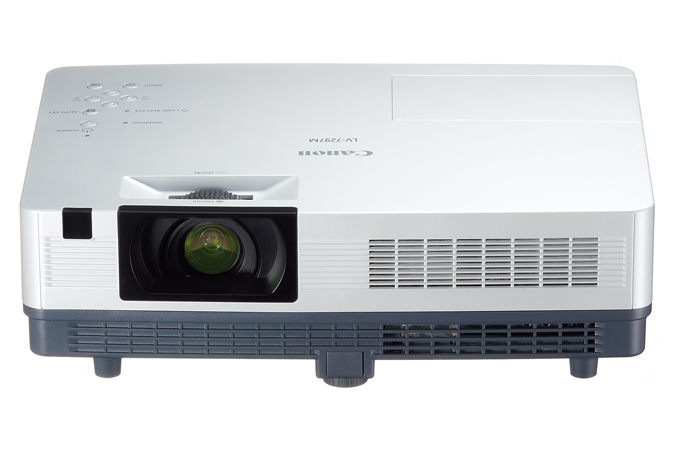

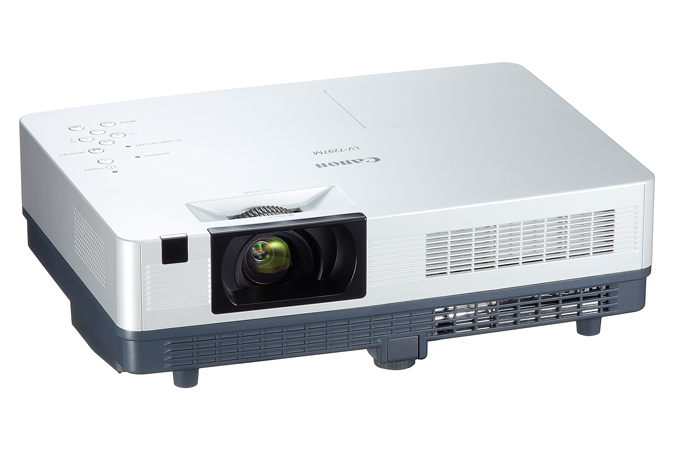

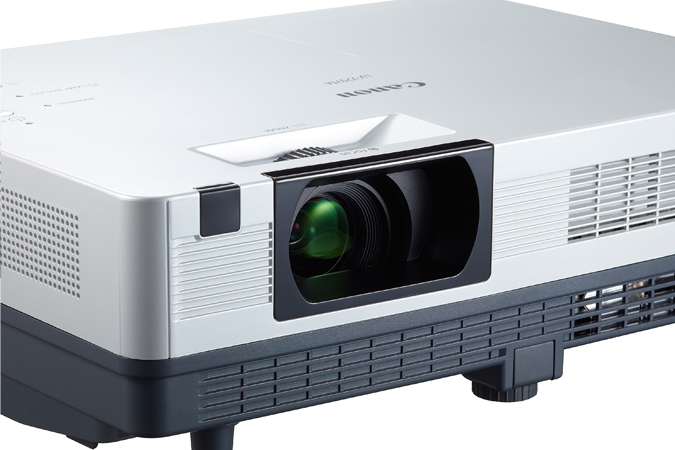

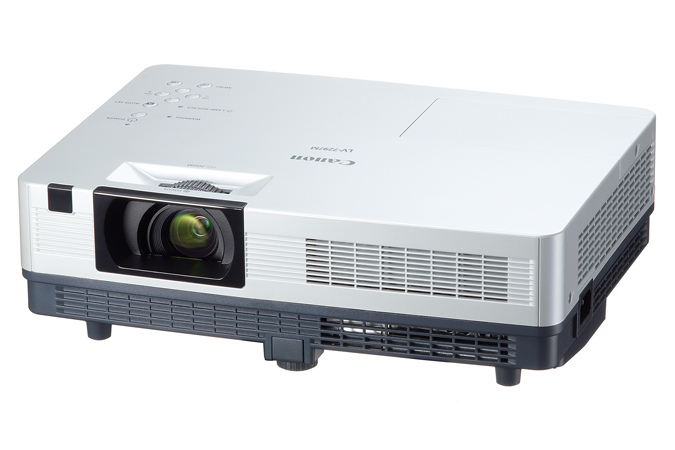

Canon LV 7297M 2600 ANSI lumens LCD XGA (1024x768) Black, White

Canon LV 7297M 2600 ANSI lumens LCD XGA (1024x768) Black, White

Model 7297MPart no. 6831B002EAN 8714574584980

68 specifications
  • Noise36.4 dB
  • Weight3 kg
  • ColourBlack, White
  • Projector brightness2600 ANSI lumens
  • Service life of light source4000 h
  • FocusManual
See all specifications

Overview

Noise
36.4 dB
Weight
3 kg
Colour
Black, White
Projector brightness
2600 ANSI lumens
Service life of light source
4000 h
Focus
Manual
Brand
Canon
Model
7297M
Part numbers
6831B002, 6831B003, 6831B007
EAN / UPC
8714574584980, 013803157680, 4960999916248
Also known as
Canon LV 7297M 2600 ANSI lumens LCD XGA (1024x768) Black, White

Specifications

68 specifications in 16 groups

Projector

Projector brightness2600 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)500:1
Native aspect ratio4:3
Supported aspect ratios4:3
Screen size compatibility1016 - 7620 mm (40 - 300")
Projection distance1.3 - 11.8 m
Uniformity85%
Horizontal scan range15 - 93 kHz
Vertical scan range50 - 120 Hz
Keystone correction, vertical±30; ±20°

Light source

Service life of light source4000 h
Service life of light source (economic mode)6000 h
Lamp typeUHP

Lens system

FocusManual
Focal length range18.38 - 22.06 mm
Aperture range (F-F)2 - 2.15
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.2:1
Throw ratio1.6 - 1.93:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Full HDYes
3DNo
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

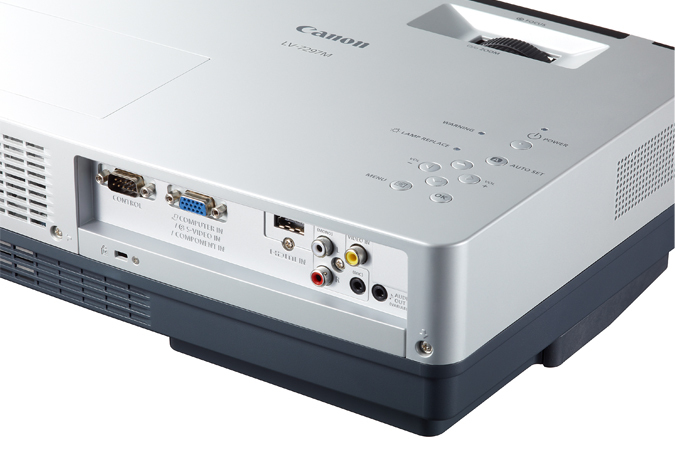

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity0
Audio (L/R) in1
Headphone outputs1
Serial interface typeRS-232
PC Audio inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level36.4 dB
Noise level (economic mode)29 dB
Preset modesCinema, Presentation, Standard

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power1 W

Design

Product colourBlack, White

Display

Built-in displayNo

Power

Power sourceAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 80%

Weight & dimensions

Weight3 kg
Width333.5 mm
Depth247 mm
Height101 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
ManualYes
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
