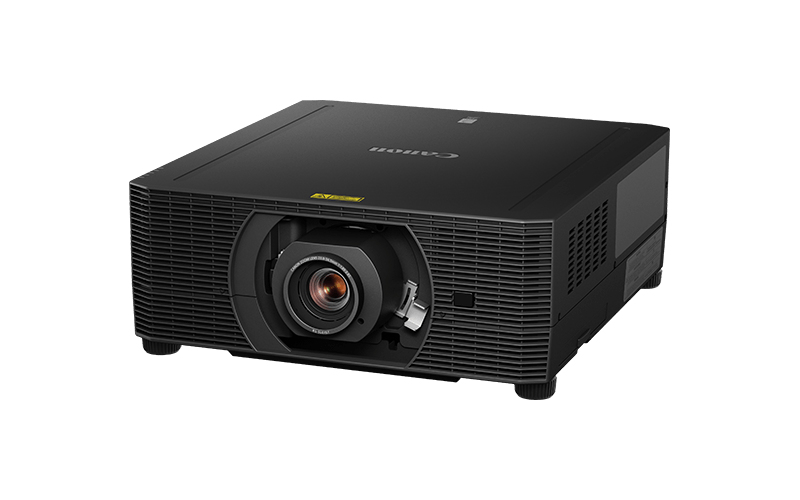

Canon XEED 4K5020Z Large venue projector 5000 ANSI lumens LCOS DCI 4K (4096x2160) Black
Canon

XEED 4K5020Z Large venue projector 5000 ANSI lumens LCOS DCI 4K (4096x2160) Black

Model 4K5020ZPart no. 2503C005EAN 8714574660660

69 specifications
  • Noise37 dB
  • TypeLarge venue projector
  • Weight18 kg
  • ColourBlack
  • Projector brightness5000 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
37 dB
Type
Large venue projector
Weight
18 kg
Colour
Black
Projector brightness
5000 ANSI lumens
Light source type
Laser
Brand
Canon
Model
4K5020Z
Part numbers
2503C005, 2503C003
EAN / UPC
8714574660660, 4549292121483
Also known as
Canon XEED 4K5020Z Large venue projector 5000 ANSI lumens LCOS DCI 4K (4096x2160) Black

Specifications

69 specifications in 14 groups

Projector

Projector brightness5000 ANSI lumens
Projection technologyLCOS
Projector native resolutionDCI 4K (4096x2160)
Contrast ratio (typical)3600:1
Native aspect ratio17:9
Screen size compatibility1016 - 15240 mm (40 - 600")
Projection distance0.45 - 86 m
Contrast ratio (dynamic)20000:1
Uniformity80%
Keystone correction, horizontal-20 - 20°
Keystone correction, vertical-20 - 20°
Matrix size1.88 cm (0.74")
Matrix type3-panel (p-Si TFT active)
Heat dissipation1876 BTU/h

Light source

Light source typeLaser
Service life of light source20000 h

Lens system

FocusAuto
Focal length range22.7 - 39.8 mm
Aperture range (F-F)2.1 - 2.4
Zoom capabilityYes
Throw ratio1.34:1 - 2.35:1
Horizontal lens shift range-11 - 11%
Vertical lens shift range-73 - 73%

Video

Full HDYes
3DNo
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1366 x 768, 1440 x 900 (WXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1080, 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160

Ports & interfaces

VGA (D-Sub) ports quantity0
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portNo
S-Video inputs quantity0
HDBaseT portYes
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
PC Audio inYes
Mobile High-Definition Link (MHL)No
AC (power) inYes
DC-in jackYes

Network

Smart TVNo
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)

Storage

Card reader integratedNo

Features

Noise level37 dB
Noise level (economic mode)29 dB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power1 W

Design

Product typeLarge venue projector
Market positioningBusiness
Product colourBlack
PlacementDesktop

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)550 W
Power consumption (standby)1.6 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Weight18 kg
Width480 mm
Depth545 mm
Height196 mm
