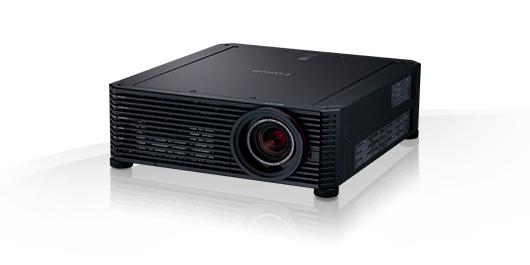

Canon XEED 4K501ST Large venue projector 5000 ANSI lumens LCOS 4K (4096x2400) Black

Canon XEED 4K501ST Large venue projector 5000 ANSI lumens LCOS 4K (4096x2400) Black

Model 4K501STPart no. 1639C003EAN 4549292075915

66 specifications
  • Noise39 dB
  • TypeLarge venue projector
  • Weight18 kg
  • ColourBlack
  • Projector brightness5000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
39 dB
Type
Large venue projector
Weight
18 kg
Colour
Black
Projector brightness
5000 ANSI lumens
Light source type
Lamp
Brand
Canon
Model
4K501ST
Part number
1639C003
EAN / UPC
4549292075915
Also known as
Canon XEED 4K501ST Large venue projector 5000 ANSI lumens LCOS 4K (4096x2400) Black

Specifications

66 specifications in 14 groups

Projector

Projector brightness5000 ANSI lumens
Projection technologyLCOS
Projector native resolution4K (4096x2400)
Contrast ratio (typical)3000:1
Native aspect ratio17:10
Screen size compatibility1016 - 15240 mm (40 - 600")
Projection distance0.9 - 17.7 m
Projector brightness (economic mode)3750 ANSI lumens
Uniformity88%
Keystone correction, horizontal-20 - 20°
Keystone correction, vertical-20 - 20°
Matrix size1.93 cm (0.76")

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp typeNSHA
Lamp power400 W
Lamp power (economic mode)300 W

Lens system

Focal length range17.2 - 22.3 mm
Aperture range (F-F)2.6 - 2.6
Zoom ratio1.3:1
Horizontal lens shift range-10 - 10%
Vertical lens shift range-60 - 60%

Video

Full HDYes
Supported graphics resolutions4096 x 2400, 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1366 x 768, 1440 x 900, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1080, 2560 x 1440, 3840 x 2160, 4096 x 2160

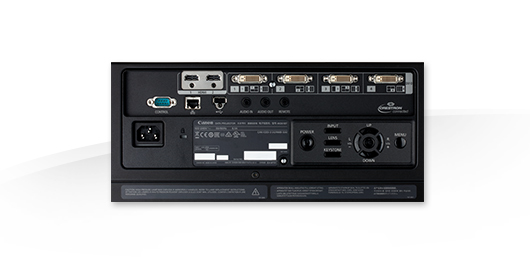

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portYes
S-Video inputs quantity0
USB 2.0 ports quantity1
Audio (L/R) in0
Headphone outputs1
Microphone inYes
Serial interface typeRS-232C

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo

Features

Noise level39 dB
Noise level (economic mode)34 dB
Preset modesDynamic, Presentation, Standard, sRGB

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power5 W

Design

Product typeLarge venue projector
Product colourBlack
PlacementDesktop, Ceiling

Power

Power sourceAC
Power consumption (typical)600 W
Power consumption (standby)0.8 W
Power consumption (economy mode)475 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 85%

Weight & dimensions

Weight18 kg
Width470 mm
Depth533.5 mm
Height175 mm

Packaging content

Remote control includedYes
Remote control typeIR

Other features

RS-232 ports0
RS-232CYes
