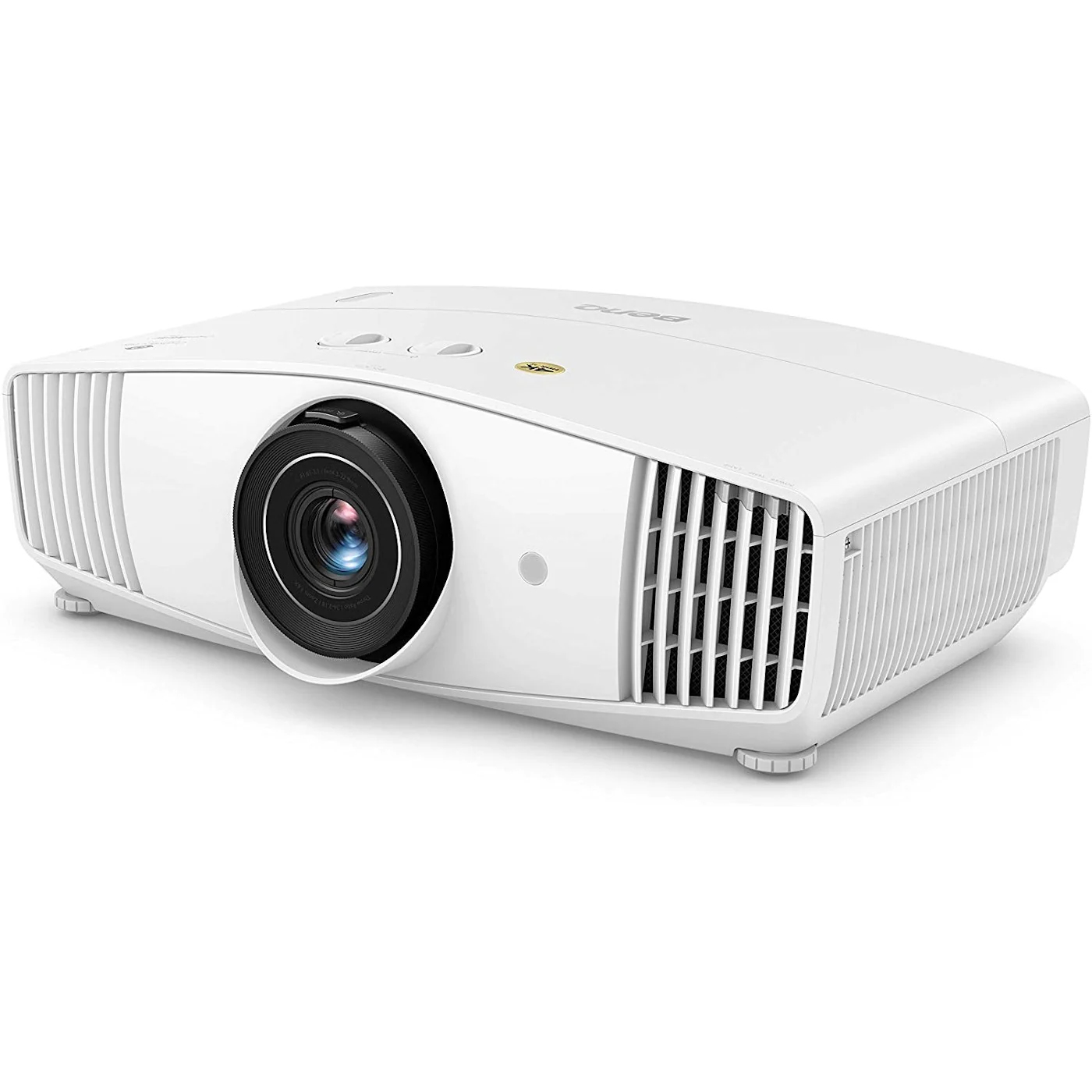

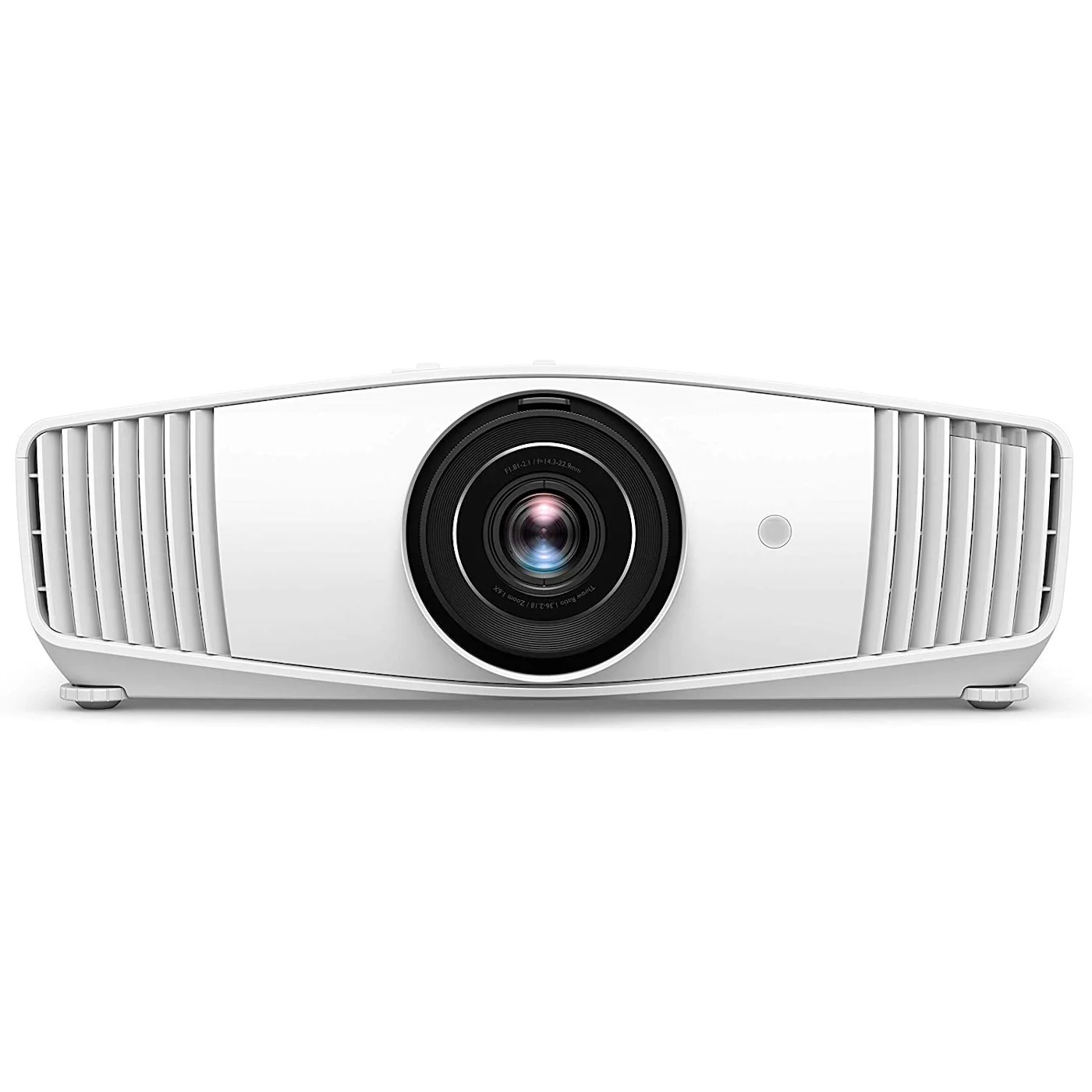

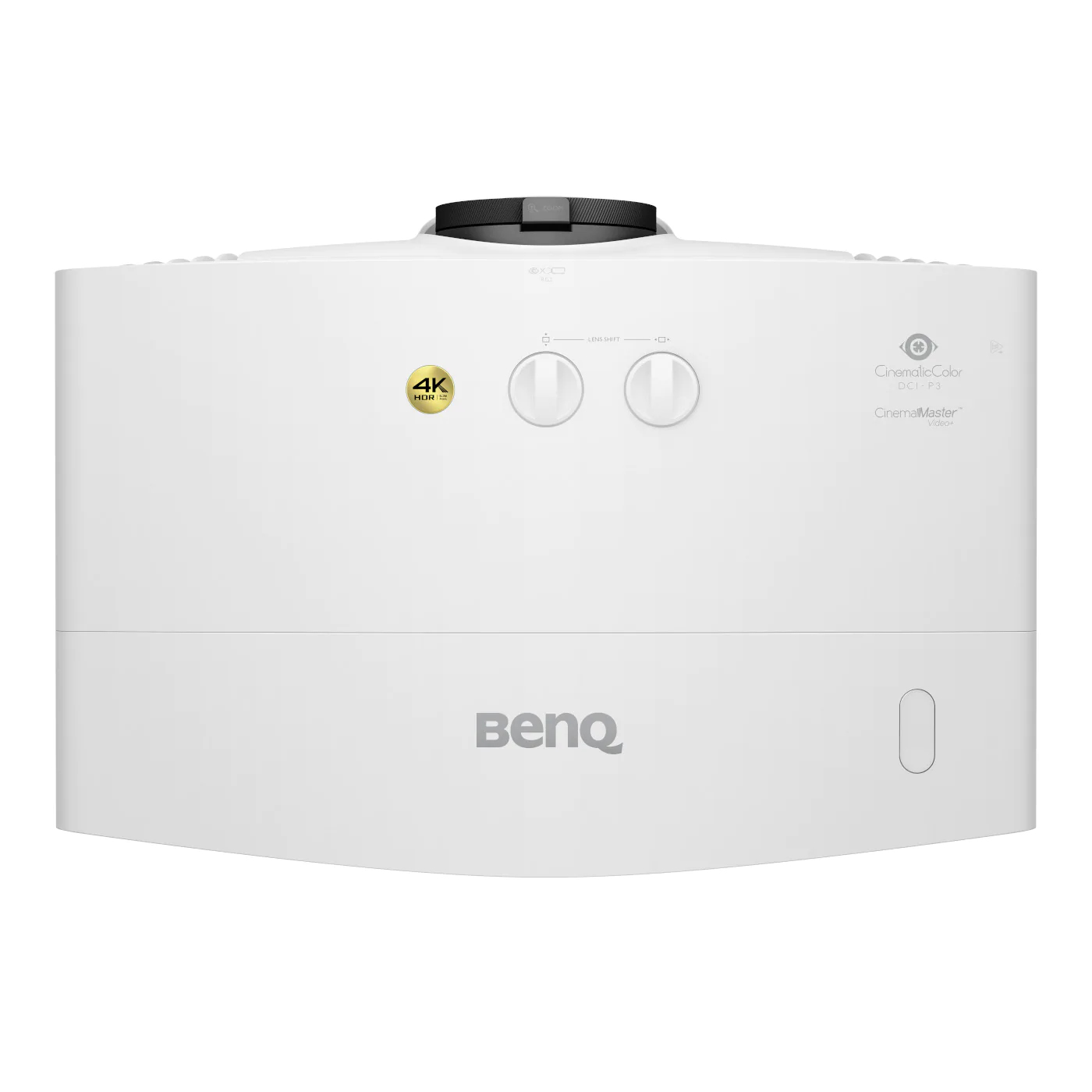

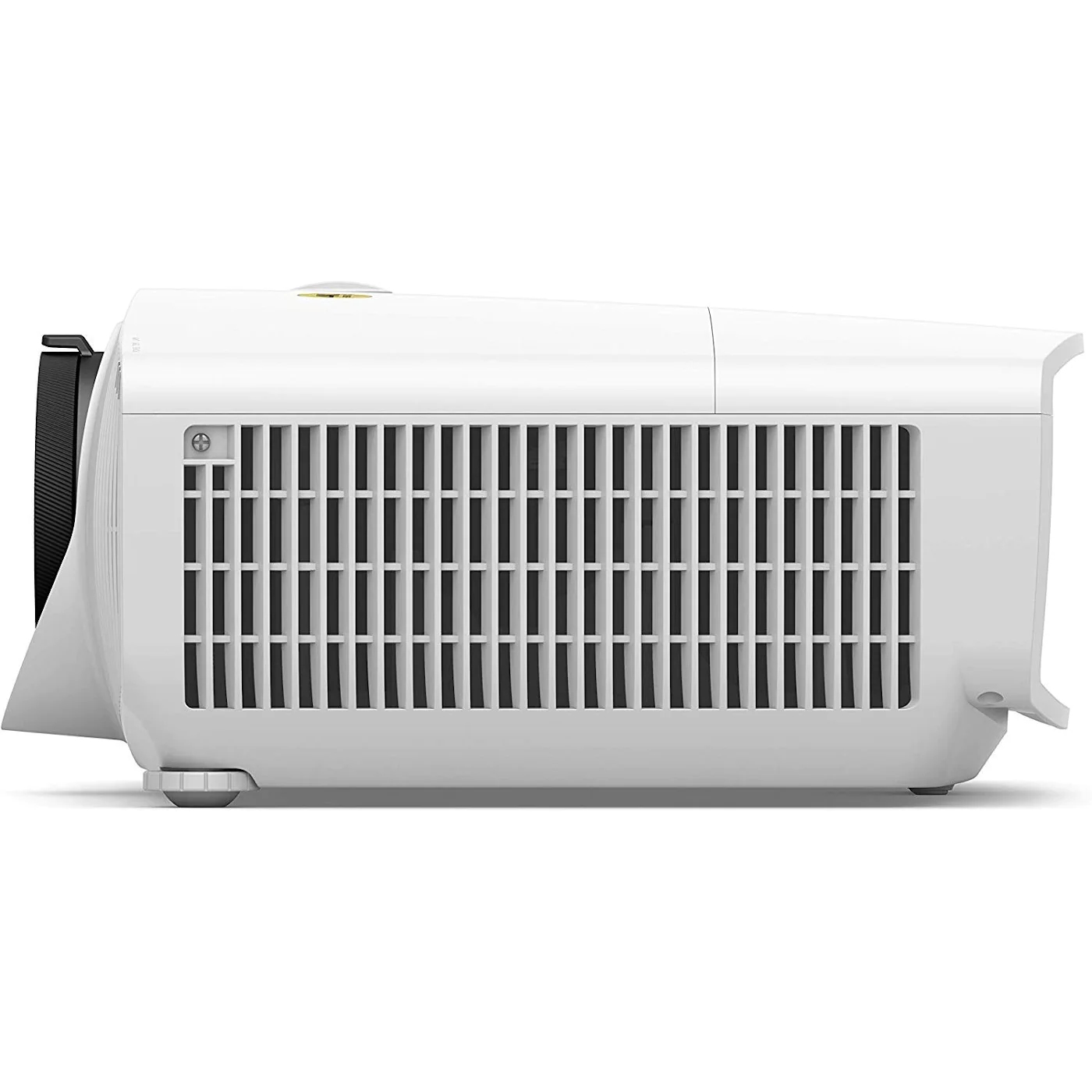

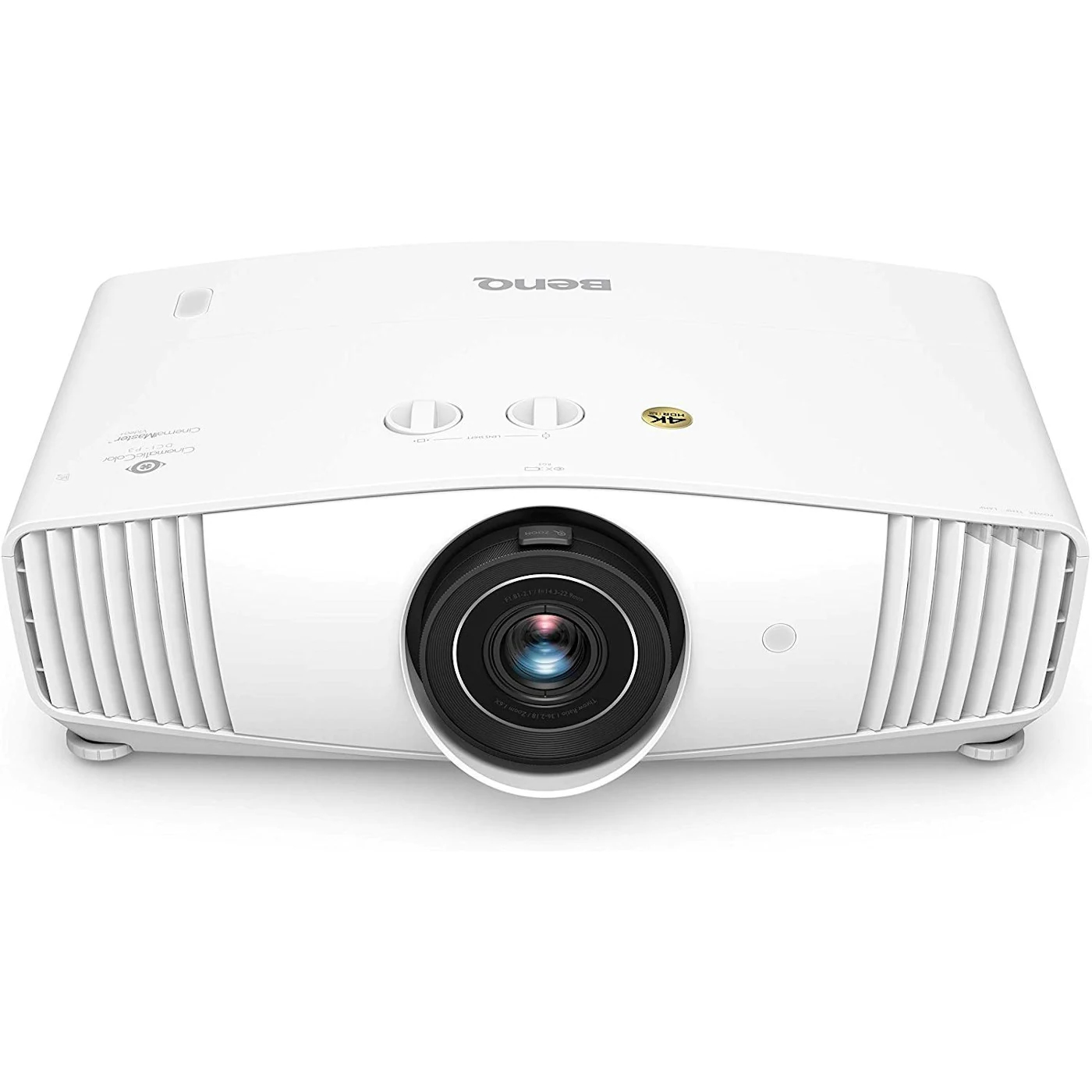

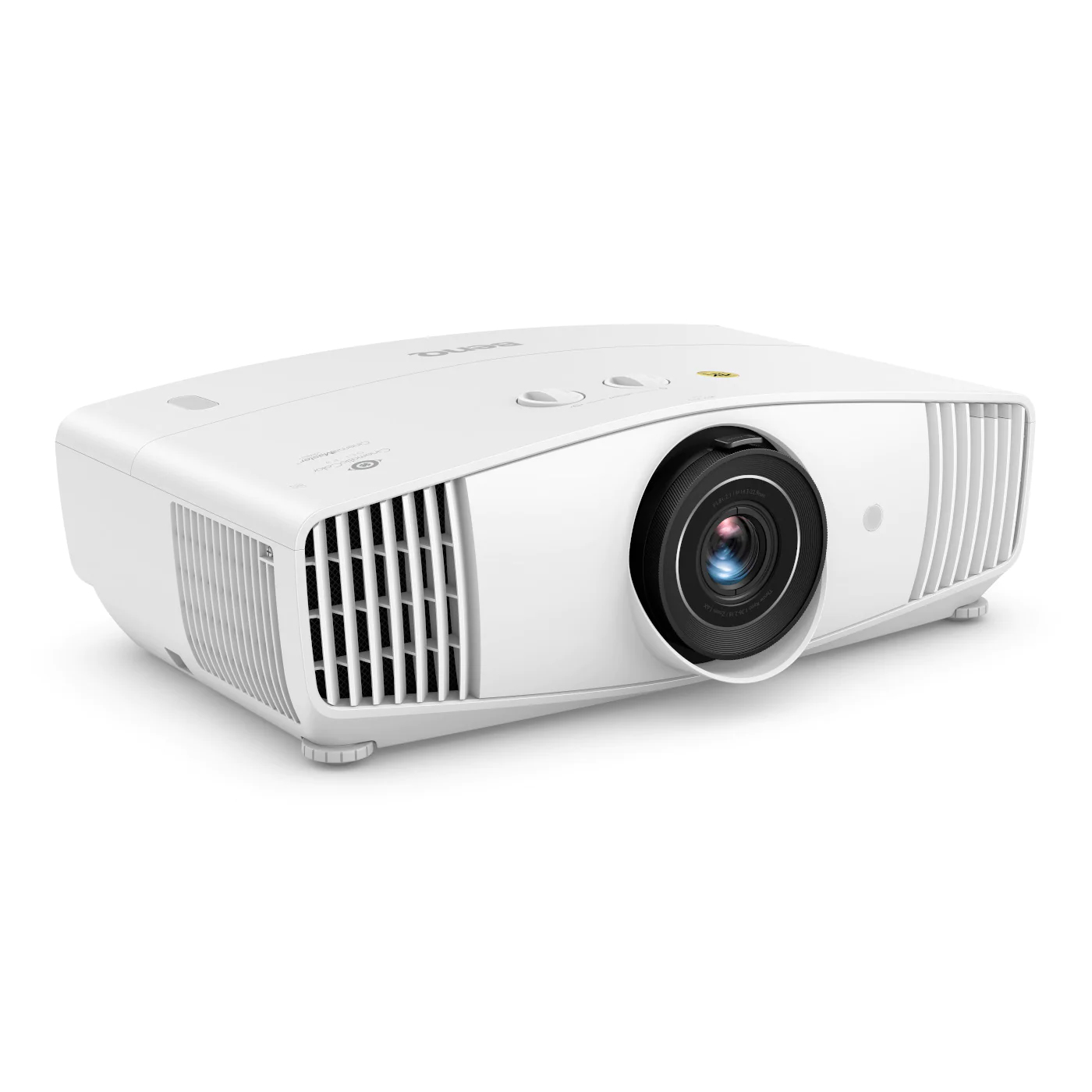

W5700S Standard throw projector 1800 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Model W5700SPart no. 9H.JKV77.18EEAN 4718755081767
79 specifications
- Noise32 dB
- TypeStandard throw projector
- Weight6.5 kg
- ColourWhite
- Projector brightness1800 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 6.5 kg
- Colour
- White
- Projector brightness
- 1800 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- W5700S
- Part numbers
- 9H.JKV77.18E, 9H.JKV77.10E, W5700S
- EAN / UPC
- 4718755081767
- Also known as
- BenQ W5700S Standard throw projector 1800 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Specifications
79 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1800 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Smart projector | No |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Contrast ratio (dynamic) | 100000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 245 W |
| Lamps quantity | 1 lamp(s) |

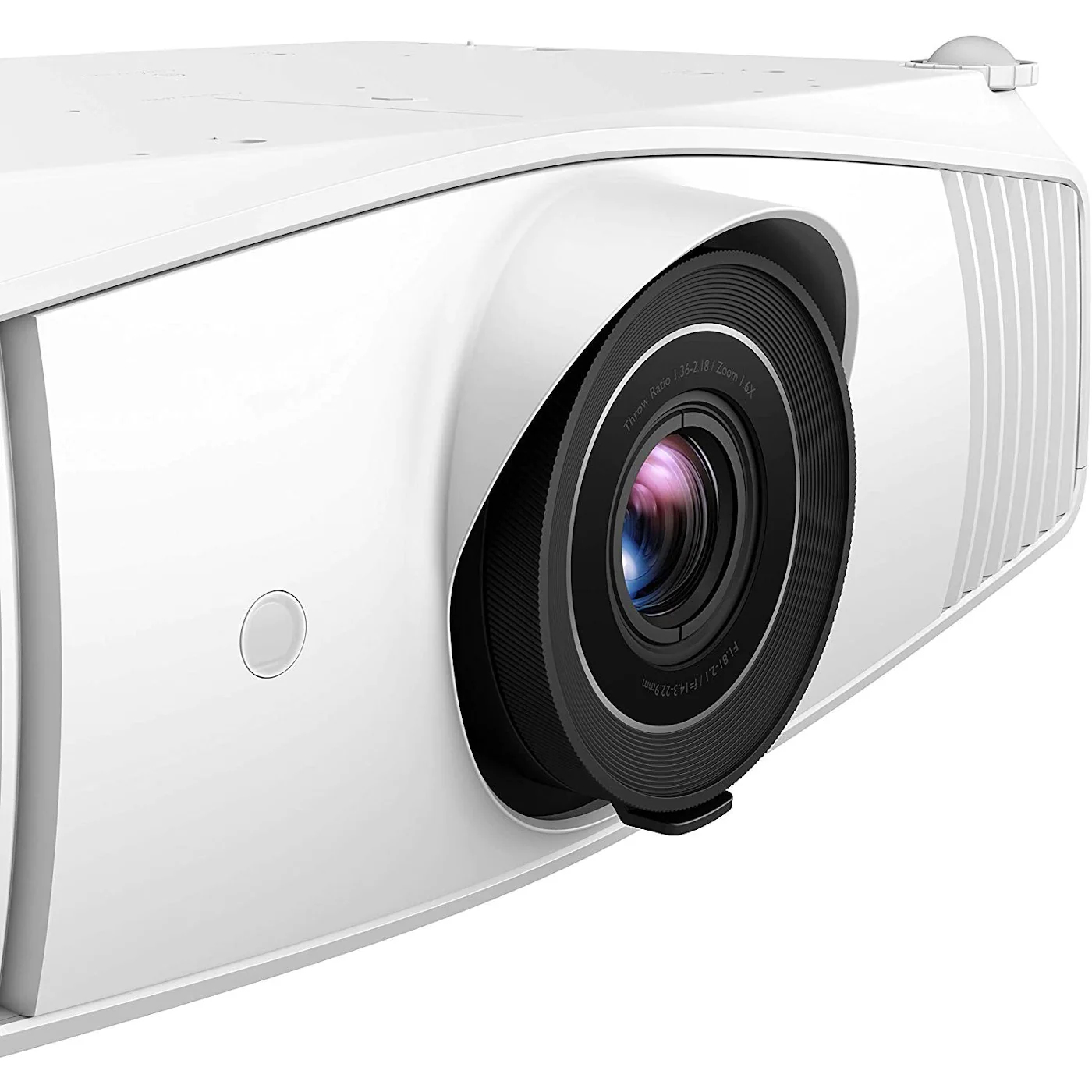

Lens system
| Specification | Value |
|---|---|
| Focal length range | 14.3 - 22.9 mm |
| Aperture range (F-F) | 1.81 - 2.1 |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.36 ~ 2.18 |

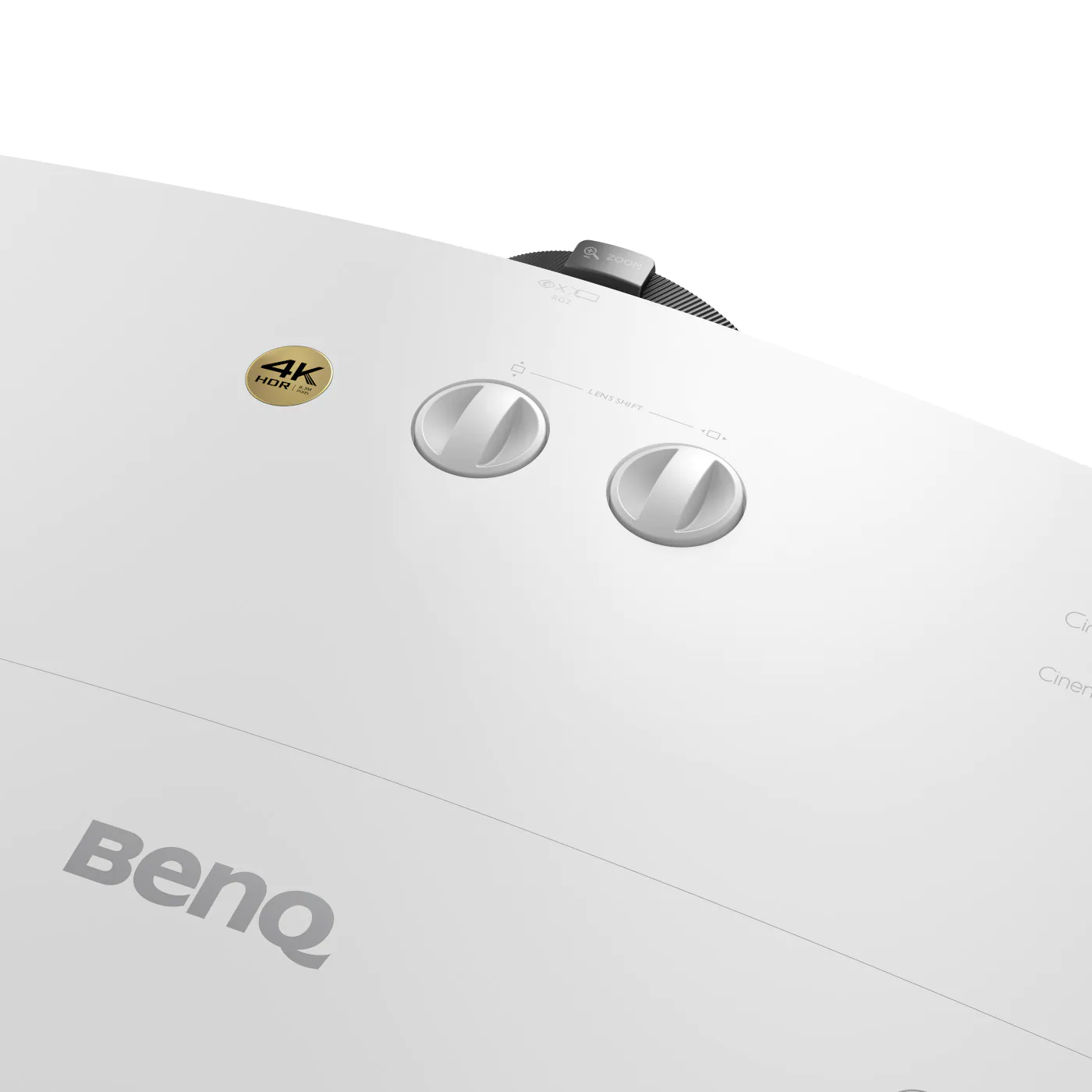

| Horizontal lens shift range | -23 - 23% |
| Vertical lens shift range | -60 - 60% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |

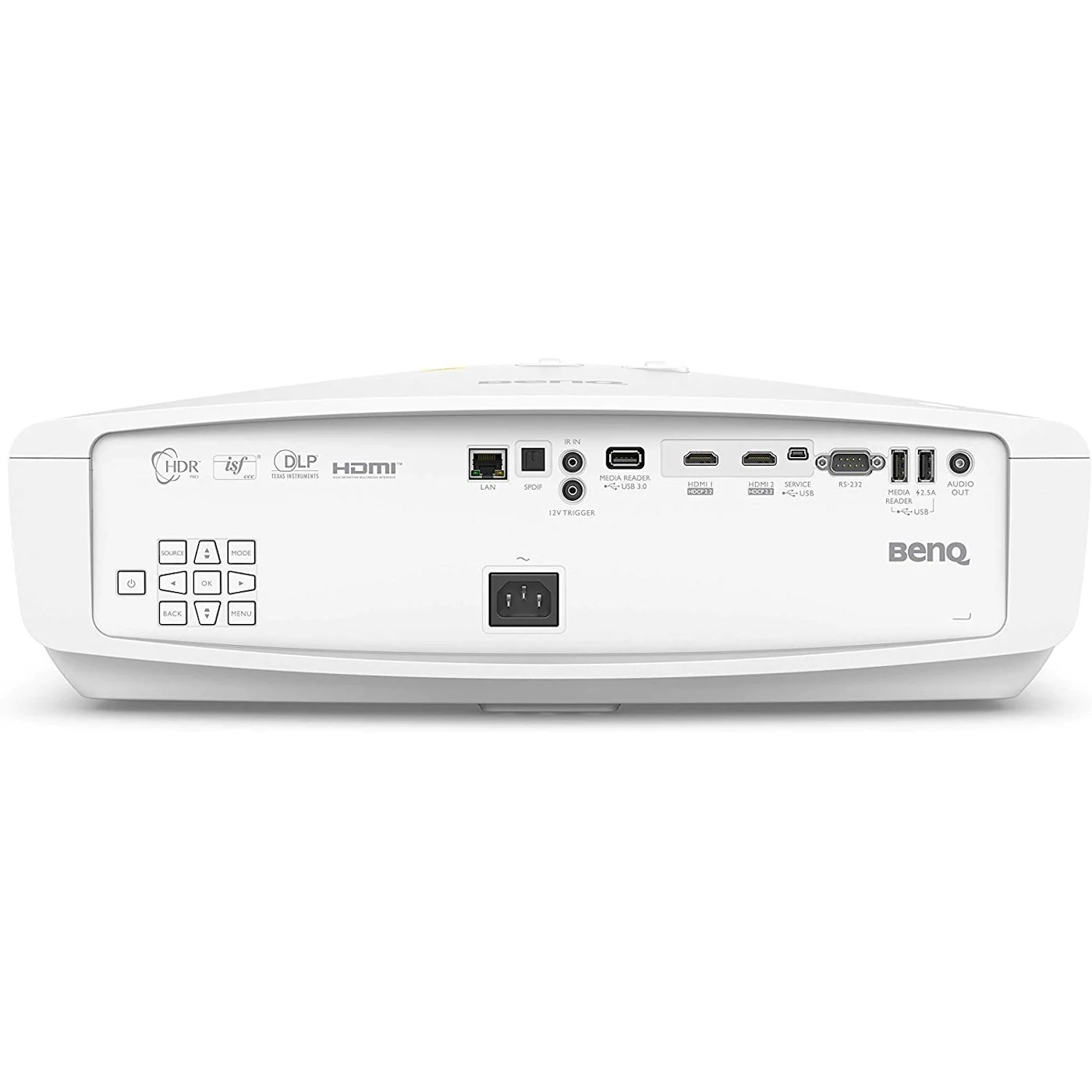

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 2.0b |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 26 dB |
| HDCP | Yes |
| Preset modes | ISF Day, ISF Night |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Finnish, French, Greek, Hindi, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
| Number of OSD languages | 28 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 330 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 405 W |
| Power consumption (economy mode) | 247 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Cord length | 3 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.5 kg |
| Width | 482 mm |
| Depth | 349 mm |
| Height | 168 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
