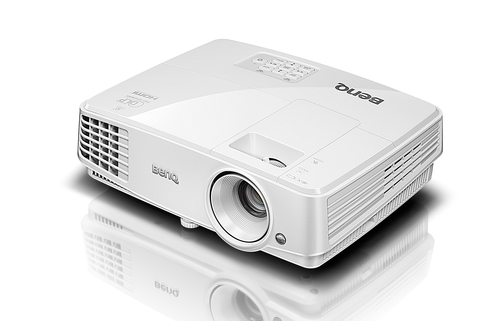

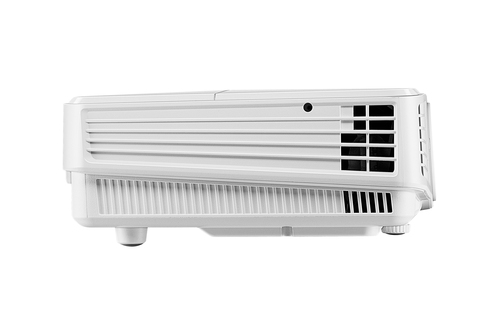

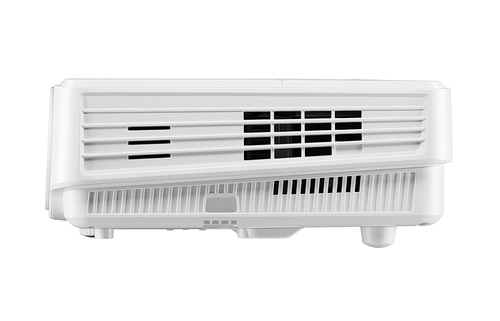

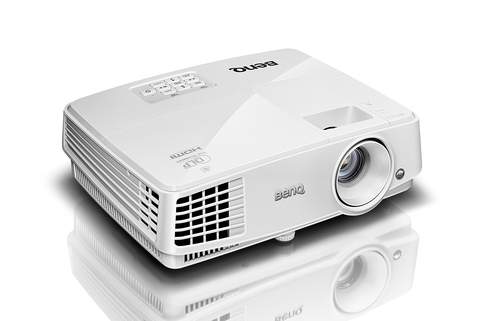

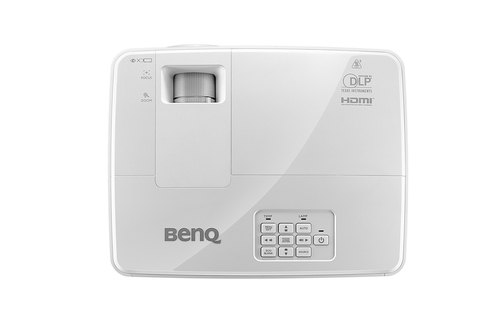

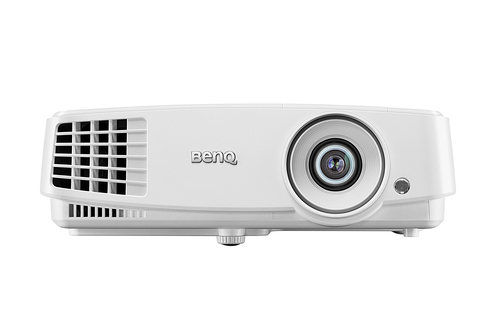

BenQ TW523P Standard throw projector 3000 ANSI lumens DLP WXGA (1280x800) 3D White

BenQ TW523P Standard throw projector 3000 ANSI lumens DLP WXGA (1280x800) 3D White

Model TW523PPart no. 9H.JC277.14EEAN 4718755051531

71 specifications
  • Noise33 dB
  • TypeStandard throw projector
  • Weight1.9 kg
  • ColourWhite
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
33 dB
Type
Standard throw projector
Weight
1.9 kg
Colour
White
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Brand
BenQ
Model
TW523P
Part number
9H.JC277.14E
EAN / UPC
4718755051531
Also known as
BenQ TW523P Standard throw projector 3000 ANSI lumens DLP WXGA (1280x800) 3D White

Specifications

71 specifications in 15 groups

Projector

Projector brightness3000 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)13000:1
Native aspect ratio16:10
Screen size compatibility1066.8 - 7620 mm (42 - 300")
Number of colours1.073 billion colours
Horizontal synchronization (max)102 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, vertical± 40°
Vertical synchronization (max)120 kHz
Vertical synchronization (min)23 kHz

Light source

Light source typeLamp
Service life of light source4500 h
Service life of light source (economic mode)6000 h
Lamp power190 W

Lens system

Focal length range21 - 23.1 mm
Aperture range (F-F)2.56 - 2.8
Zoom ratio1.1:1
Throw ratio1.5 - 1.65:1
Offset100%

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDNo
3DYes
Supported graphics resolutions1600 x 1200 (UXGA), 640 x 480 (VGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

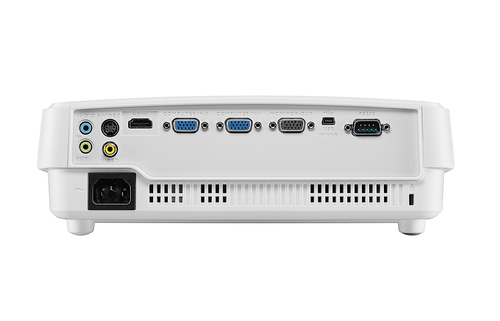

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in0
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
USB connector typeMini-USB B

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level33 dB
Noise level (economic mode)28 dB
Preset modesCinema, Dynamic, Presentation, sRGB
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesArabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish
Number of OSD languages27

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W

Design

Product typeStandard throw projector
Market positioningHome cinema
Product colourWhite
PlacementDesktop

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)270 W
Power consumption (standby)0.5 W
Power consumption (PowerSave)220 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Weight1.9 kg
Width283 mm
Depth222 mm
Height95 mm

Packaging content

Remote control includedYes
Cables includedAC, VGA
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
