TK860 3300 ANSI lumens DLP UHD 4K (3840x2160) White, Grey
Model TK860Part no. 9H.JNP77.37EEAN 4718755088001
63 specifications
- Noise30 dB
- Weight4.2 kg
- ColourWhite, Grey
- Projector brightness3300 ANSI lumens
- Light source typeLamp
- Focal length range12 - 15.6 mm
Overview
- Noise
- 30 dB
- Weight
- 4.2 kg
- Colour
- White, Grey
- Projector brightness
- 3300 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 12 - 15.6 mm
- Brand
- BenQ
- Category
- Data Projector
- Model
- TK860
- Part number
- 9H.JNP77.37E
- EAN / UPC
- 4718755088001
- Also known as
- BenQ TK860 3300 ANSI lumens DLP UHD 4K (3840x2160) White, Grey
Specifications
63 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3300 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 50000:1 |
| Native aspect ratio | 16:9 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 12 - 15.6 mm |
| Aperture range (F-F) | 1.9 - 2.47 |
| Zoom ratio | 1.3:1 |
| Throw ratio | 1.13~1.47 |
| Vertical lens shift range | 0 - 10% |
| Offset | 100% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
| Supported video modes | 1080p, 2160p |
| Video colour modes | Living room, Sports |

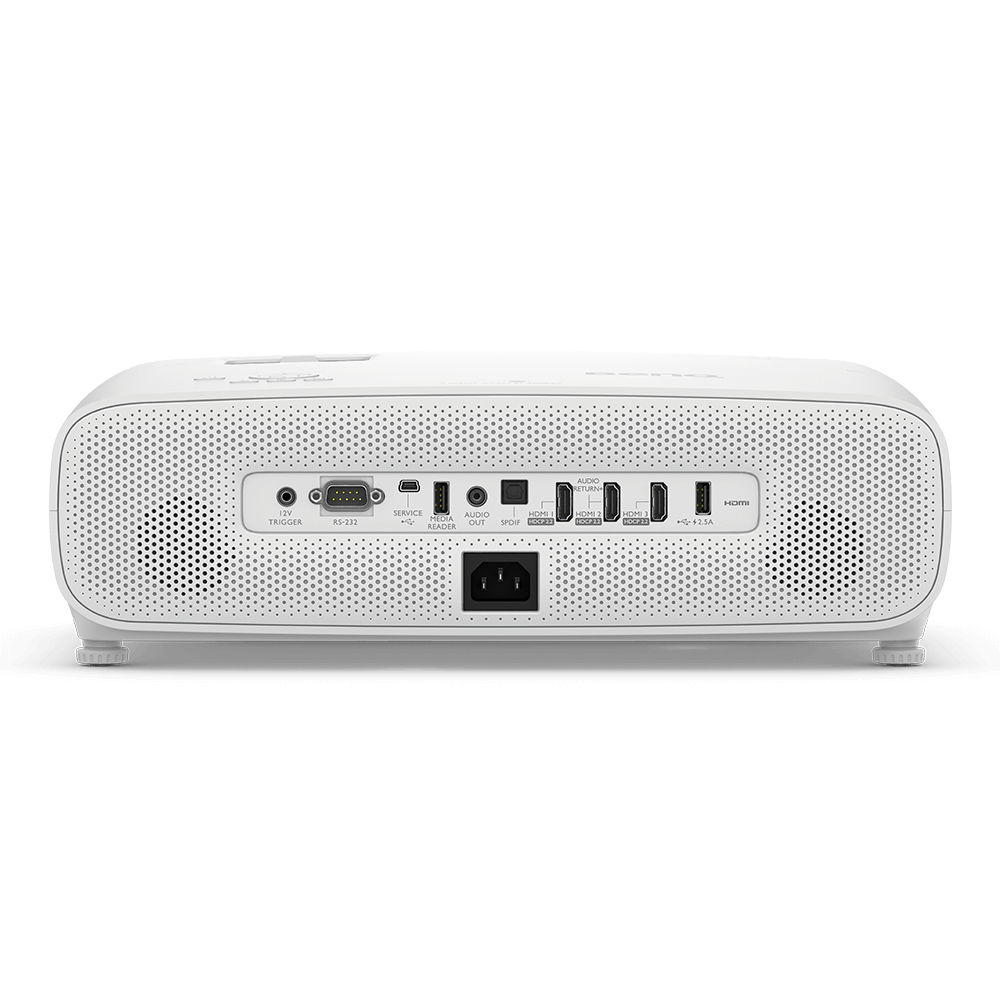

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.0b |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 30 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| Preset modes | 3D, Bright, Cinema, Game |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Audio decoders | Dolby Atmos |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White, Grey |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 330 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.2 kg |
| Width | 380 mm |
| Depth | 263 mm |
| Height | 127 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Security updates end date | 31/12/2026 |
