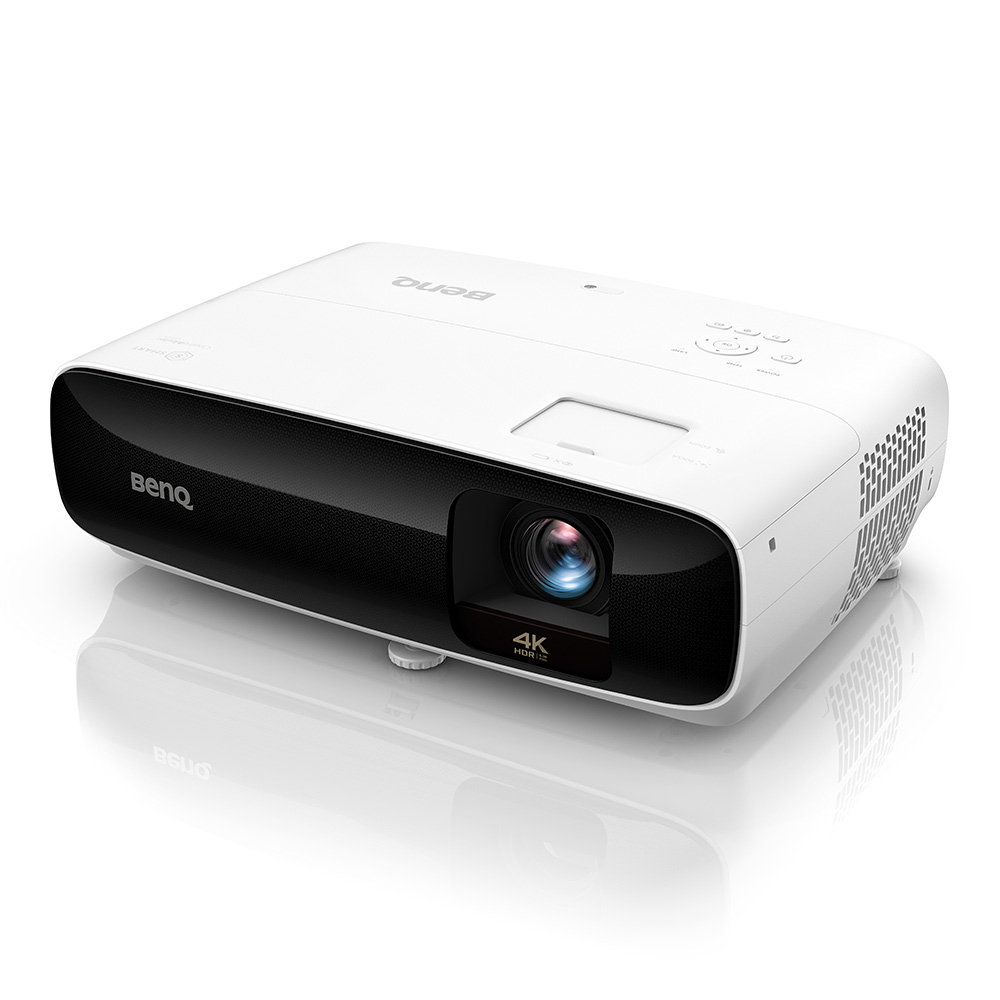

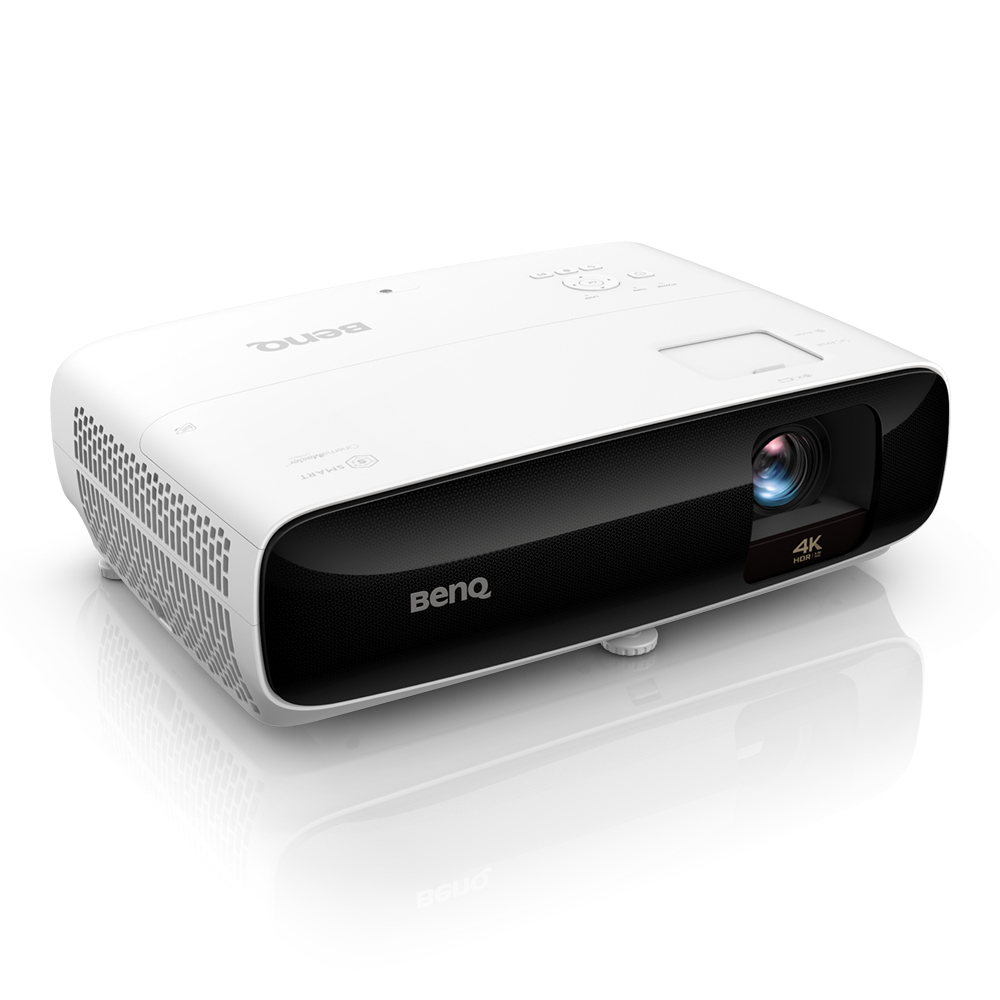

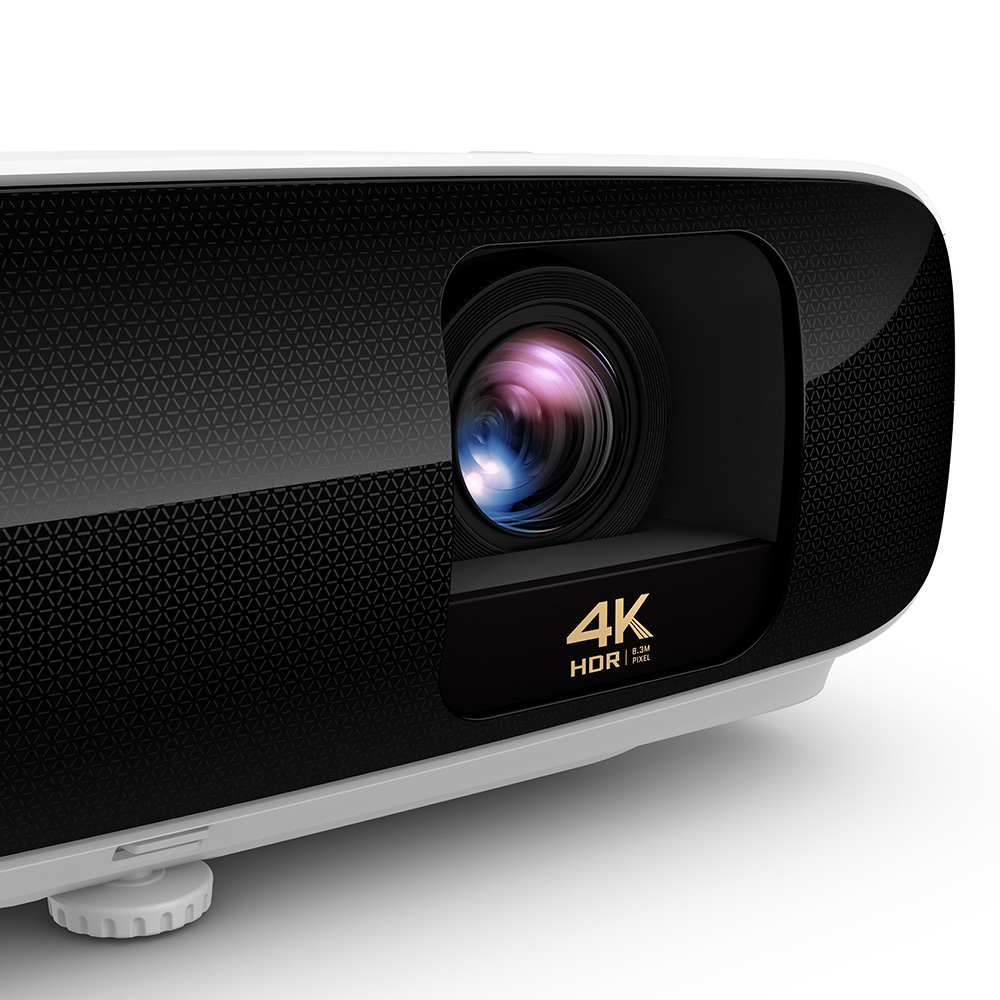

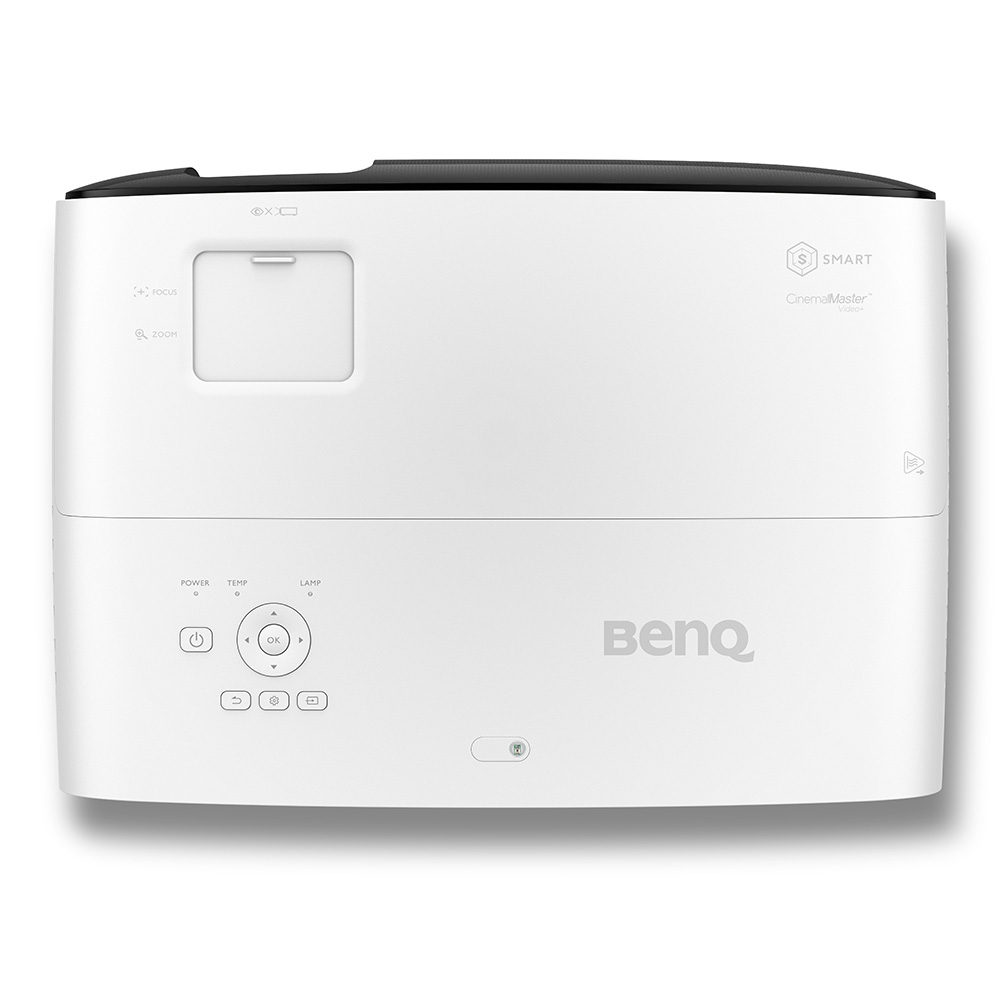

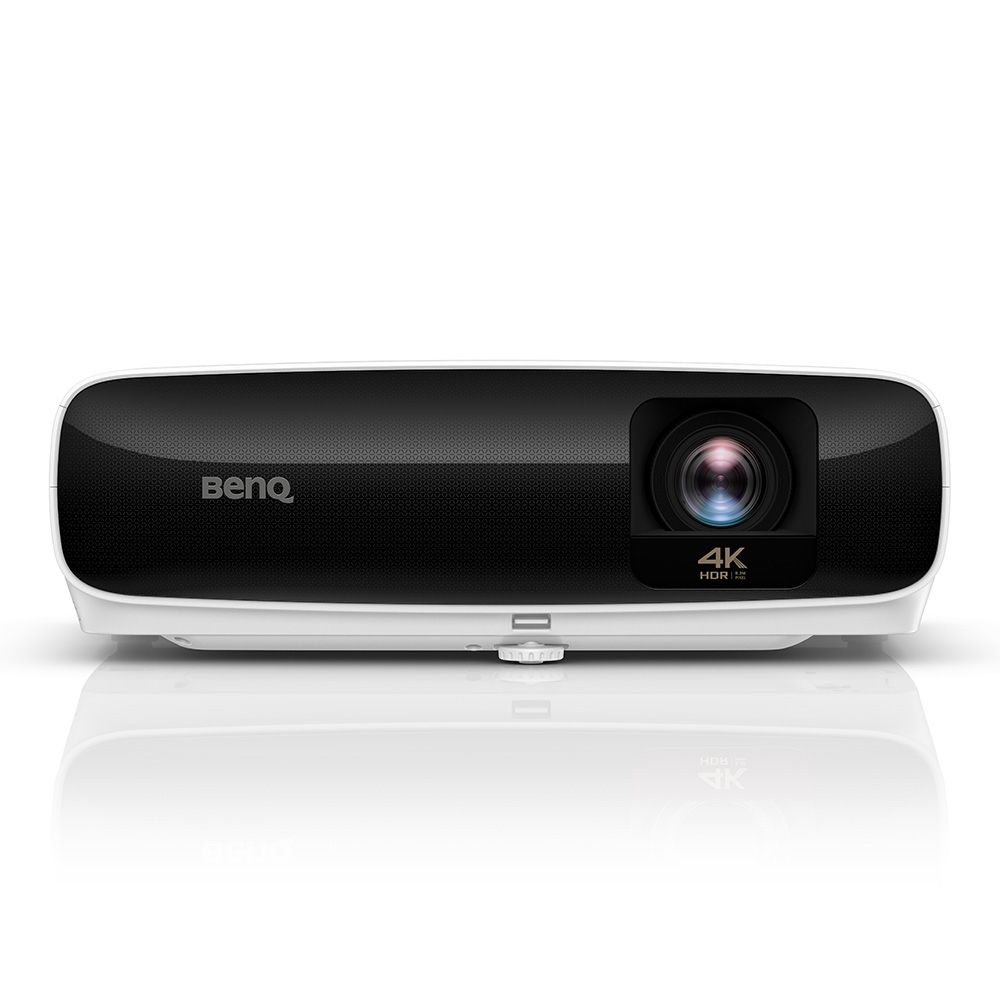

TK810 Standard throw projector 3200 ANSI lumens DLP UHD 4K (3840x2160) Black, White
Model TK810Part no. 9H.JL977.33EEAN 4718755078309
74 specifications
- Noise32 dB
- TypeStandard throw projector
- Weight4.2 kg
- ColourBlack, White
- Projector brightness3200 ANSI lumens
- Service life of light source4000 h
Overview
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 4.2 kg
- Colour
- Black, White
- Projector brightness
- 3200 ANSI lumens
- Service life of light source
- 4000 h
- Brand
- BenQ
- Category
- Data Projector
- Model
- TK810
- Part numbers
- 9H.JL977.33E, TK810
- EAN / UPC
- 4718755078309
- Also known as
- BenQ TK810 Standard throw projector 3200 ANSI lumens DLP UHD 4K (3840x2160) Black, White
Specifications
74 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3200 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1016 - 5080 mm (40 - 200") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix type | DMD |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 15.7 - 17.27 mm |
| Aperture range (F-F) | 2 - 2.2 |
| Zoom capability | Yes |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.48-1.62 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 1024 x 576 (WSVGA), 1024 x 600, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1400 x 900, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |

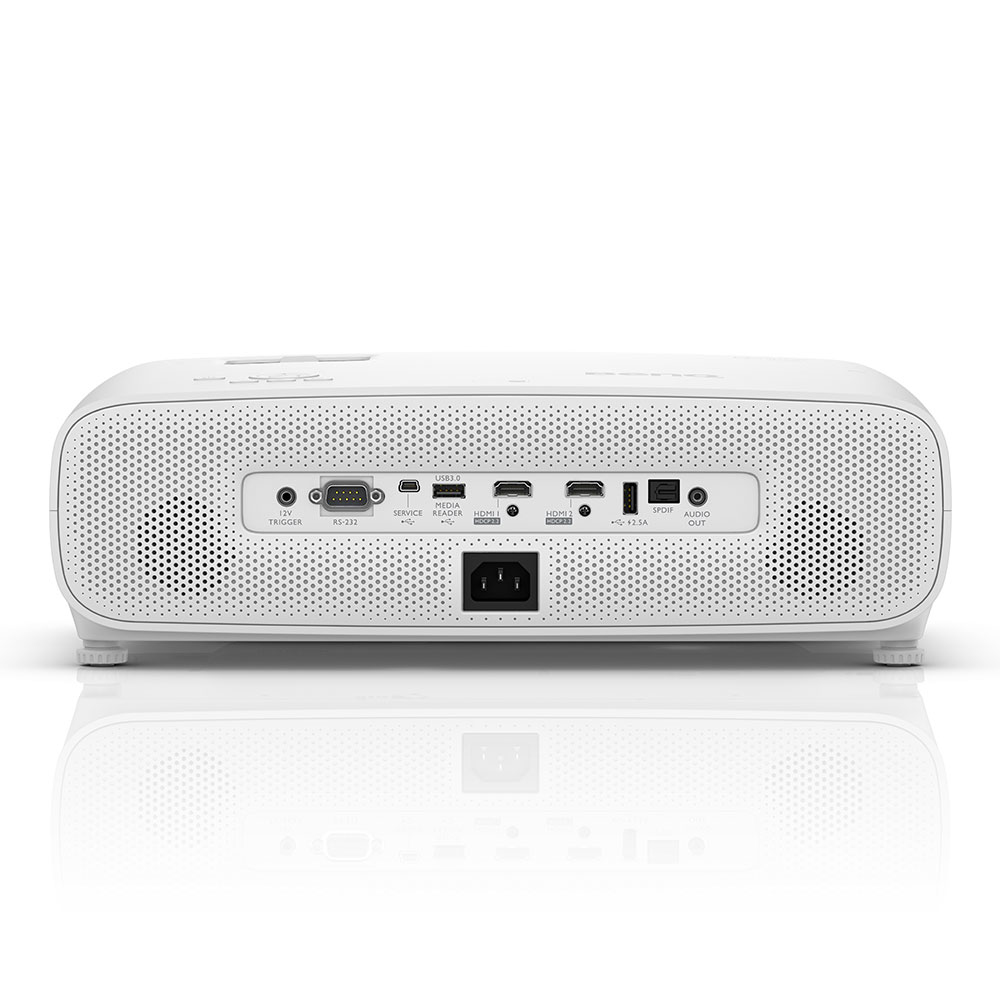

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 2.0b |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 30 dB |
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | Black, White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 30 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 350 W |
| Power consumption (PowerSave) | 280 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 12200 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.2 kg |
| Width | 380 mm |
| Depth | 263 mm |
| Height | 127 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
