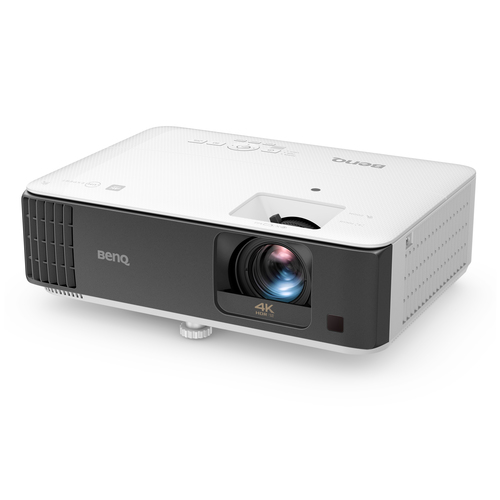

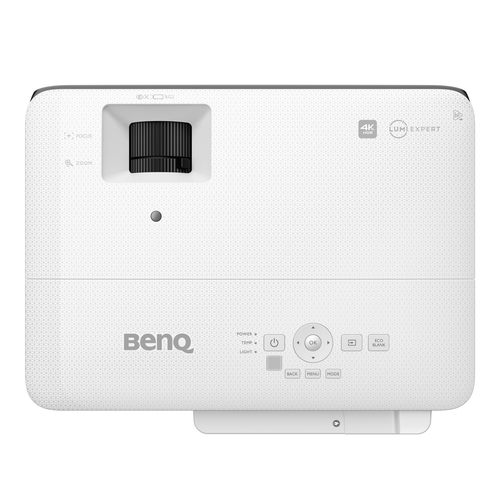

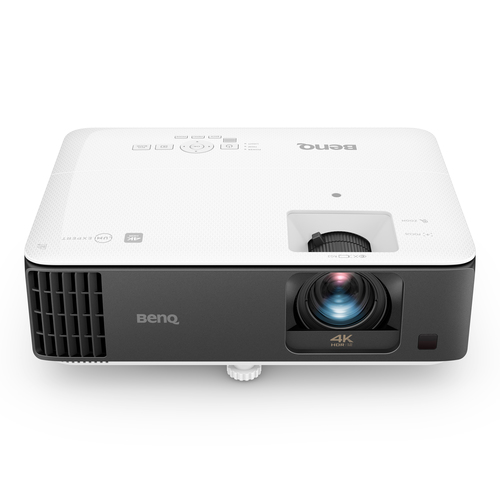

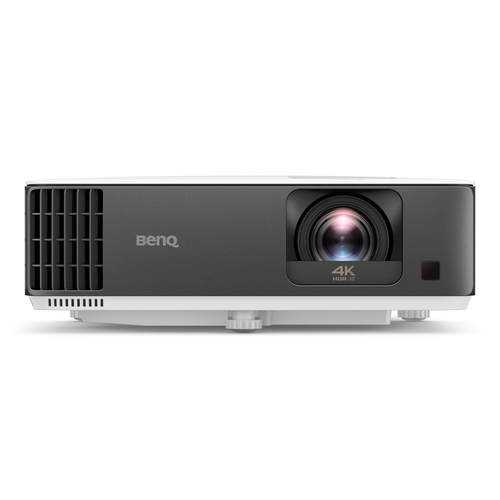

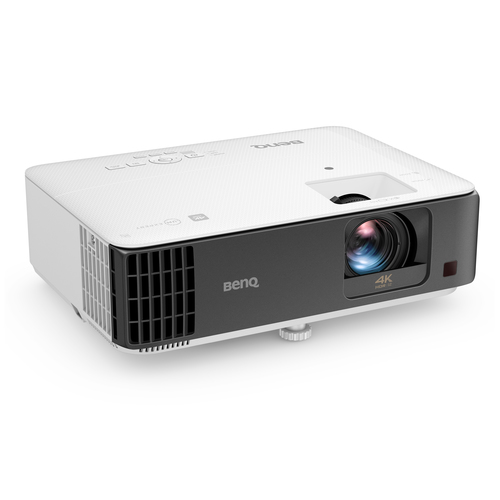

TK700STi Short throw projector 3000 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Model TK700STiPart no. 9H.JNL77.17EEAN 840046044350
79 specifications
- Noise34 dB
- TypeShort throw projector
- OSAndroid TV
- Weight3.1 kg
- ColourWhite
- Projector brightness3000 ANSI lumens
Overview
- Noise
- 34 dB
- Type
- Short throw projector
- OS
- Android TV
- Weight
- 3.1 kg
- Colour
- White
- Projector brightness
- 3000 ANSI lumens
- Brand
- BenQ
- Category
- Data Projector
- Model
- TK700STi
- Part numbers
- 9H.JNL77.17E, 9H.JNL77.17P, TK700STI, 9H.JNL77.17L
- EAN / UPC
- 840046044350, 4718755084300
- Also known as
- BenQ TK700STi Short throw projector 3000 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Specifications
79 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.19 cm (0.47") |
| Matrix type | DMD |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 9.25 - 11.1 mm |
| Zoom capability | Yes |
| Zoom ratio | 1.2:1 |
| Throw ratio | 0.9-1.08:1 |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
| Supported 3D formats | Frame Sequential |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Video colour modes | Cinema, Game, Living room, Sports |

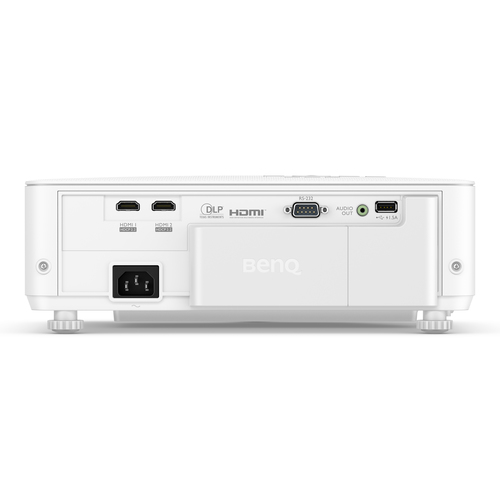

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 34 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| Preset modes | 3D, Bright, Cinema, Custom, Game, Standard |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 30 |
| Country of origin | China |
| High Dynamic Range (HDR) supported | Yes |
| Operating system installed | Android TV |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 5 W |
| Equalizer | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Gaming |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 305 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 312 mm |
| Depth | 246 mm |
| Height | 110 mm |
| Package width | 340 mm |
| Package depth | 460 mm |
| Package height | 175 mm |
| Package weight | 4.38 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
