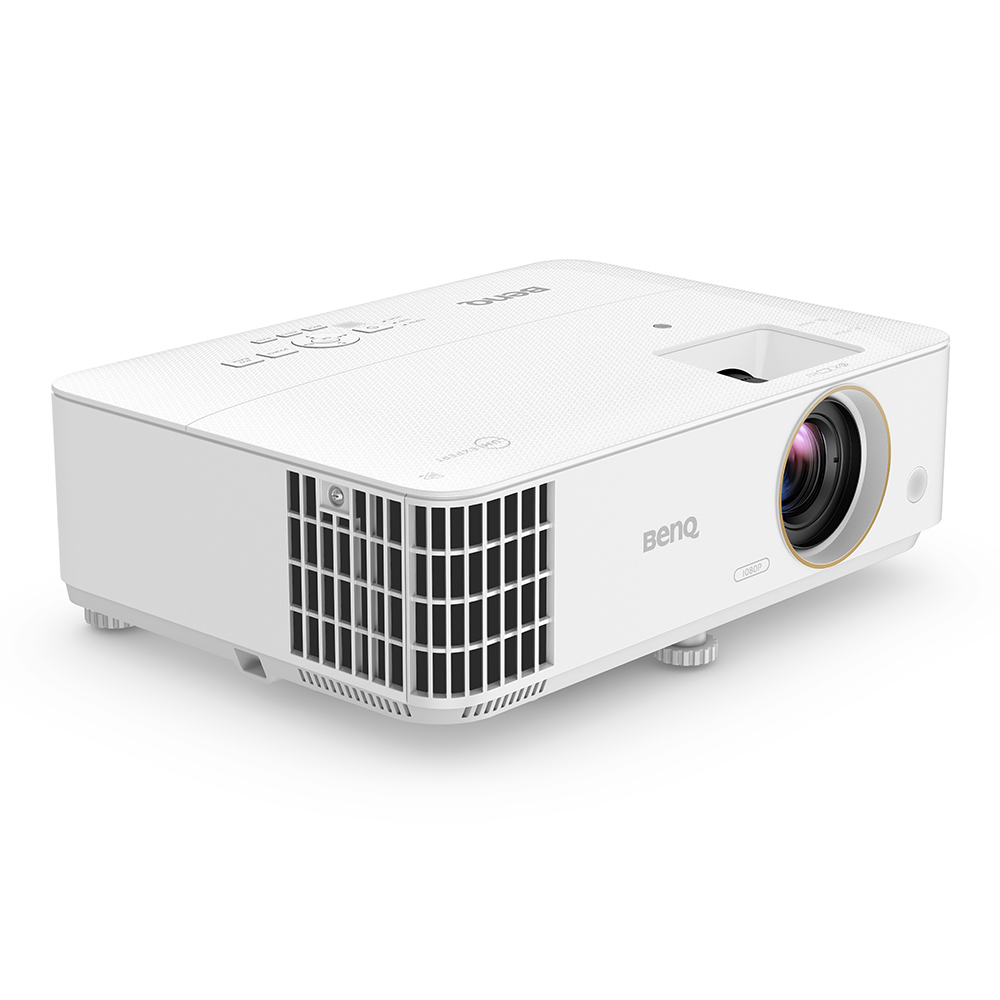

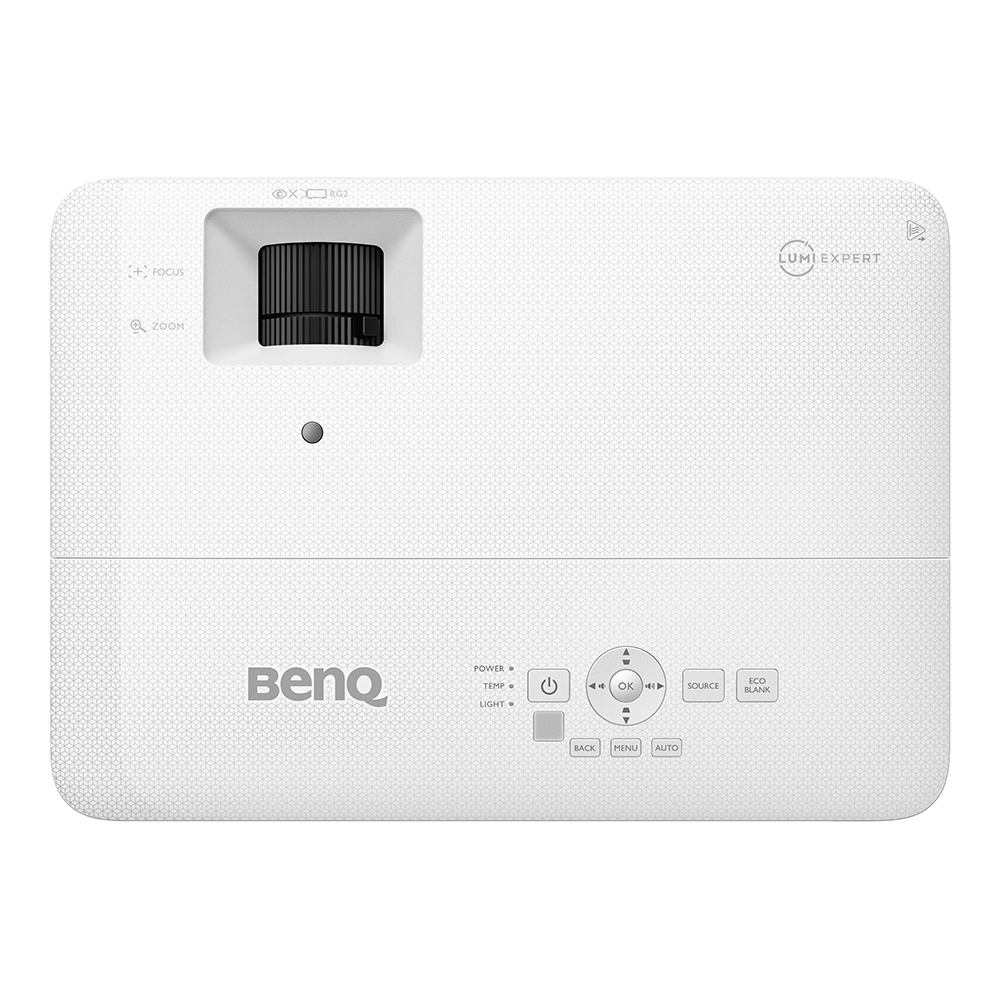

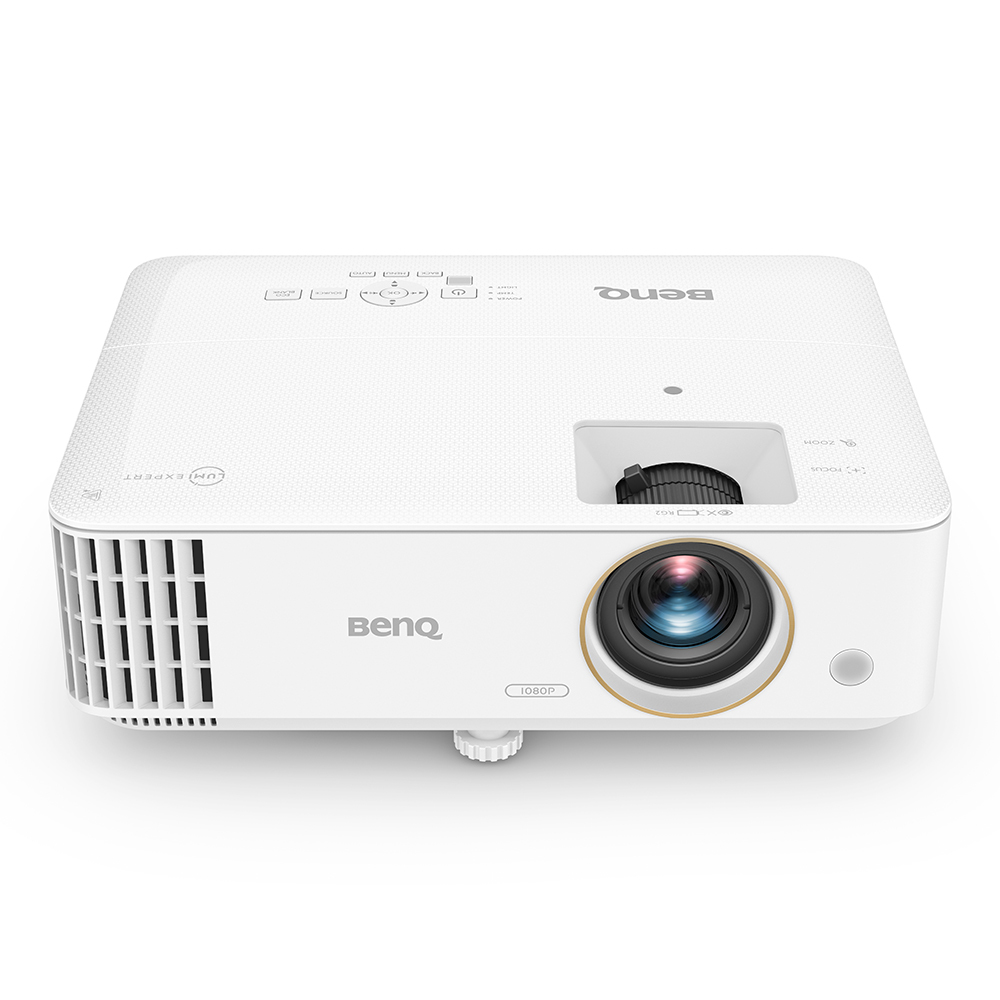

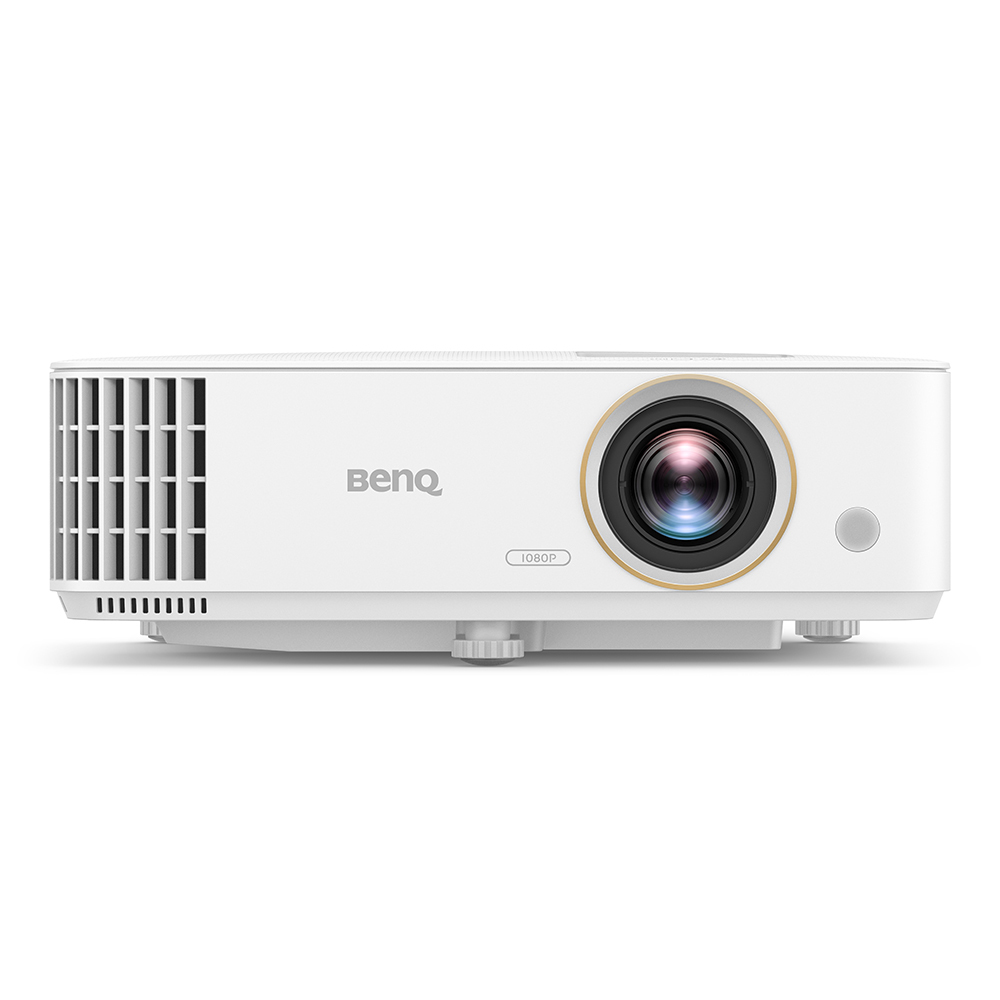

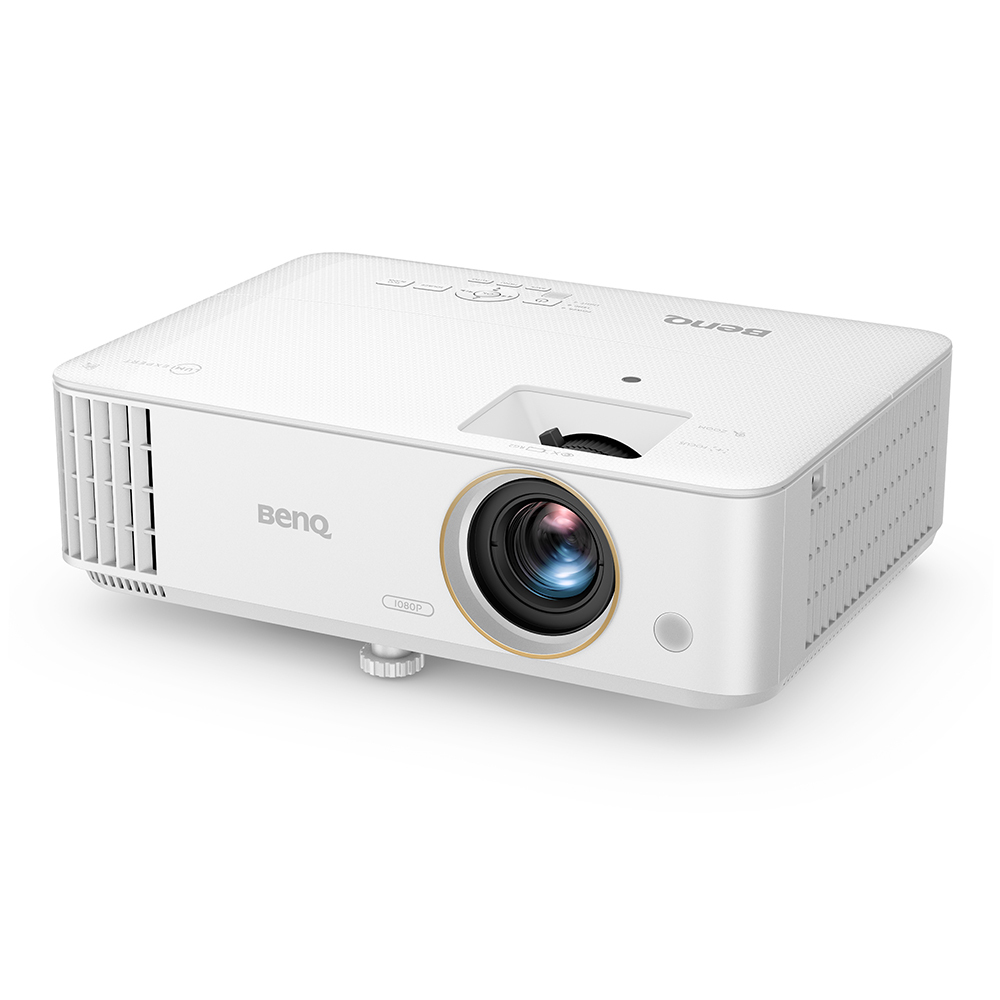

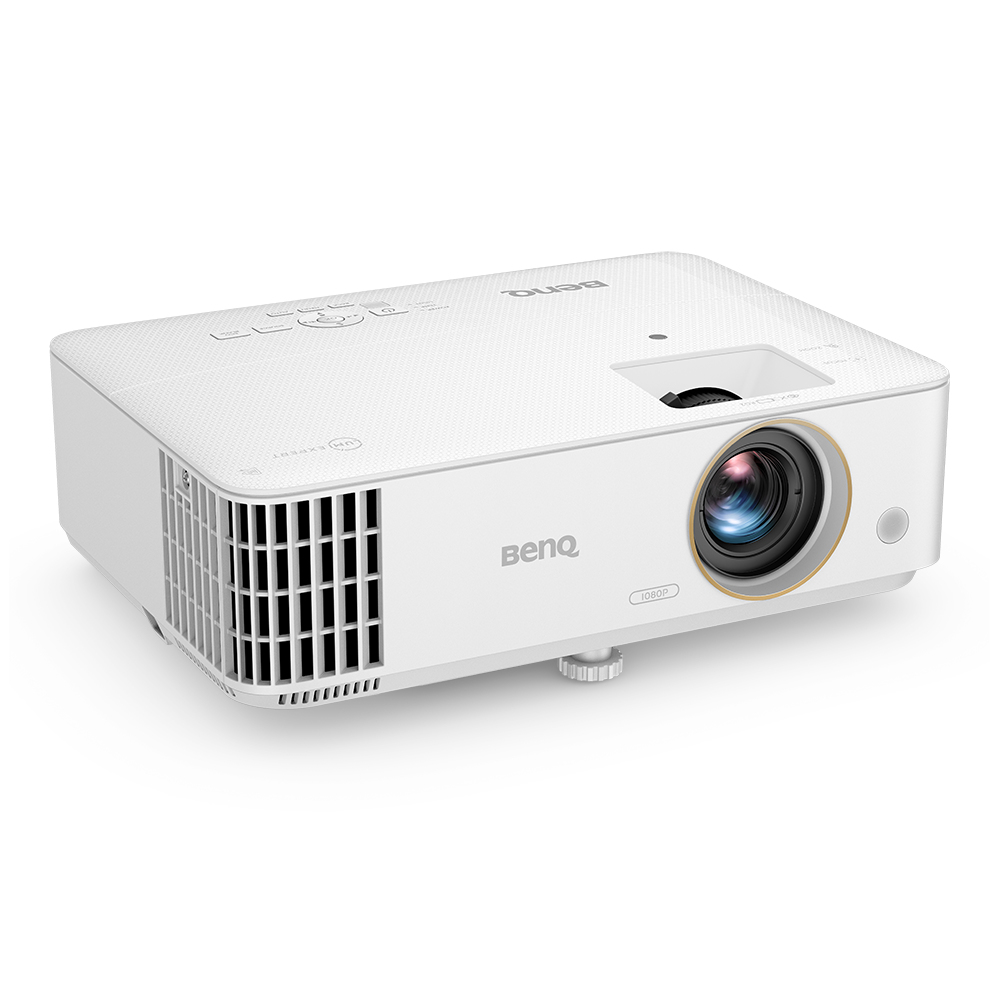

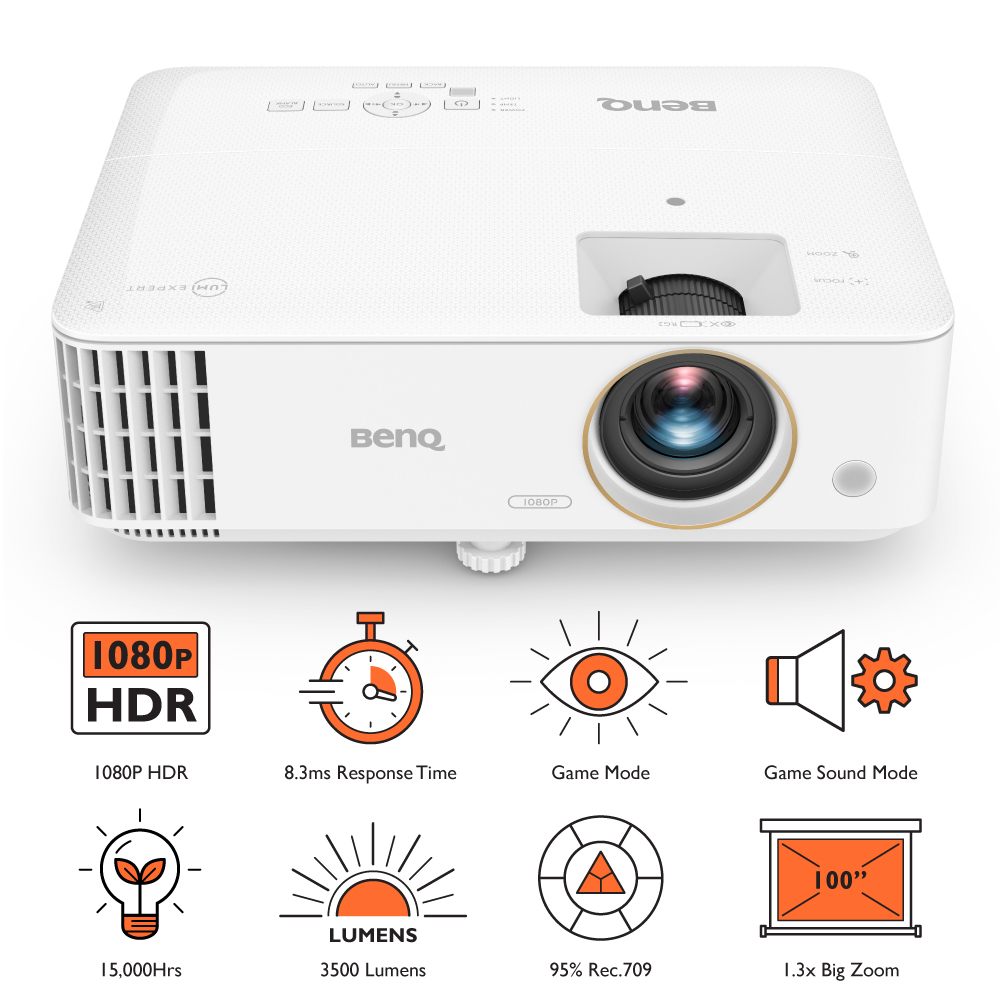

TH685 Standard throw projector 3500 ANSI lumens DLP WUXGA (1920x1200) White
Model TH685Part no. 9H.JL877.13EEAN 4718755081705
89 specifications
- Noise35 dB
- TypeStandard throw projector
- Weight2.8 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 35 dB
- Type
- Standard throw projector
- Weight
- 2.8 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- TH685
- Part numbers
- 9H.JL877.13E, TH685
- EAN / UPC
- 4718755081705
- Also known as
- BenQ TH685 Standard throw projector 3500 ANSI lumens DLP WUXGA (1920x1200) White
Specifications
89 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 245 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 11.9 - 15.5 mm |
| Aperture range (F-F) | 1.94 - 2.07 |
| Zoom capability | Yes |
| Zoom ratio | 1.3:1 |
| Throw ratio | 1.13 - 1.46 |
| Vertical lens shift range | -5 - 5% |
| Offset | 105% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

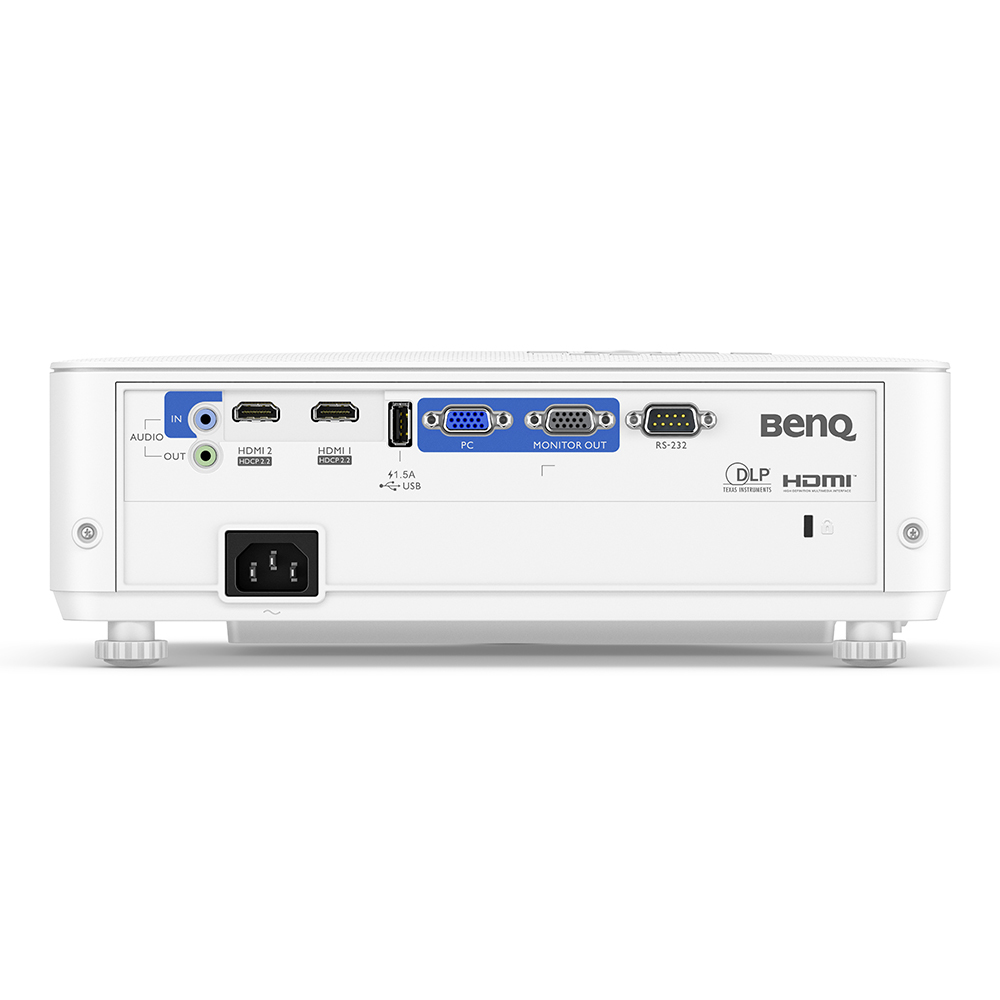

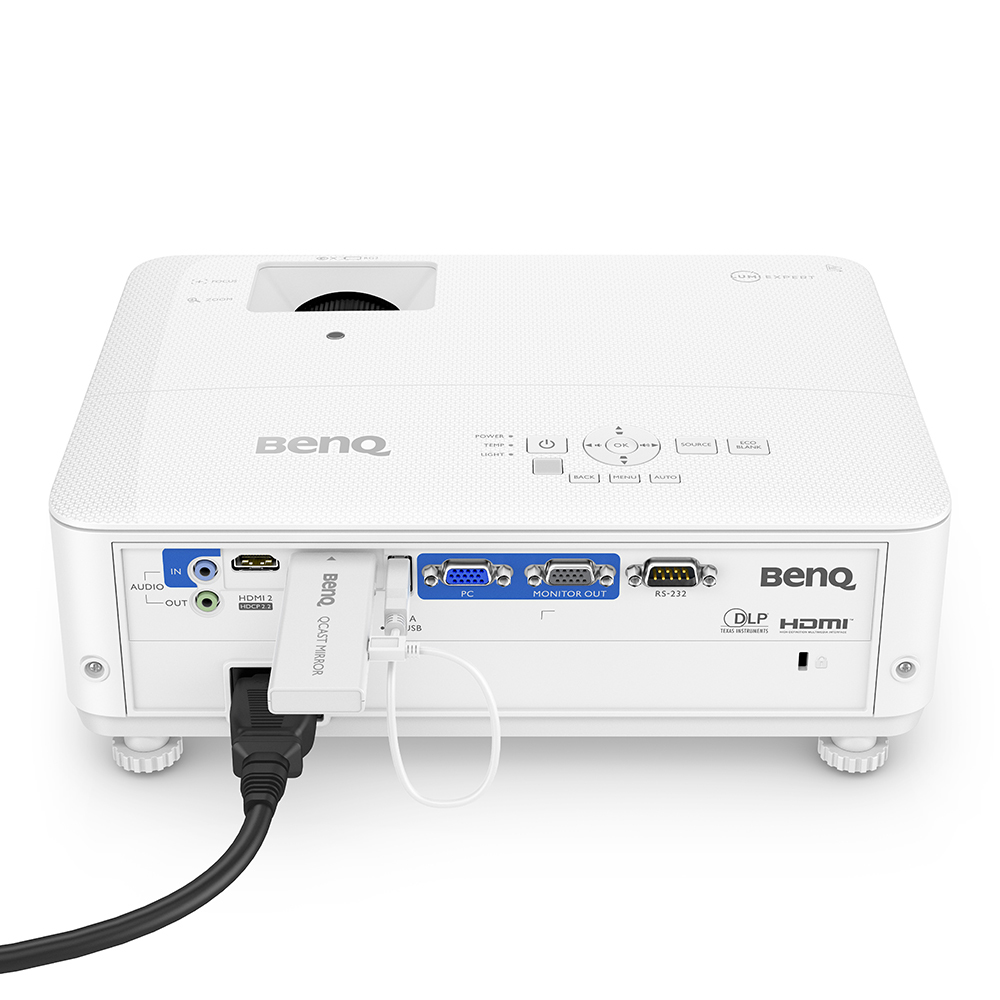

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 2.0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 35 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 30 |
| Country of origin | China |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Hybrid Log-Gamma (HLG) |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 5 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 297 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 340 W |
| Power consumption (economy mode) | 206 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 1499 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 312 mm |
| Depth | 225 mm |
| Height | 110 mm |
| Package width | 400 mm |
| Package depth | 260 mm |
| Package height | 150 mm |
| Package weight | 3.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
