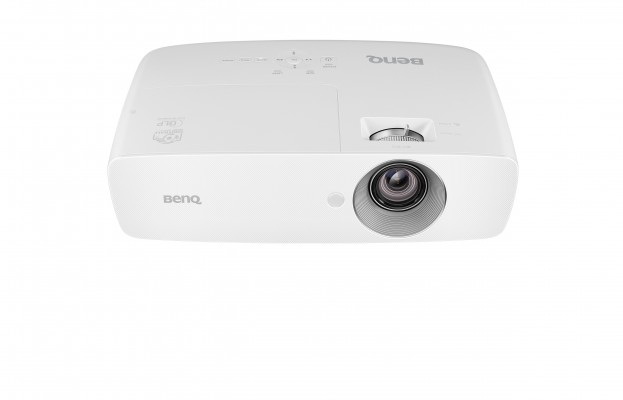

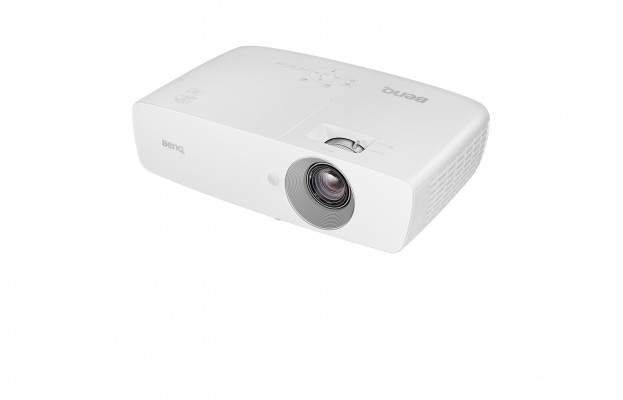

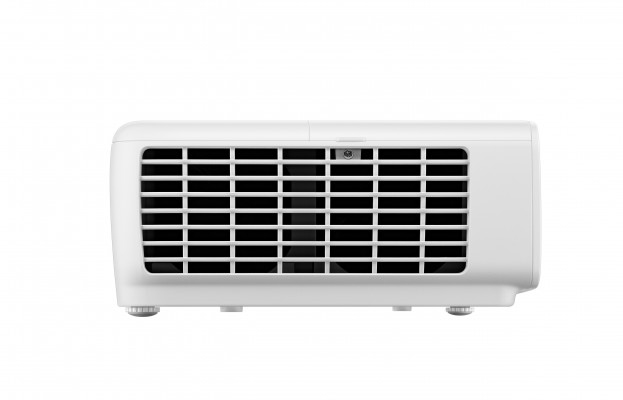

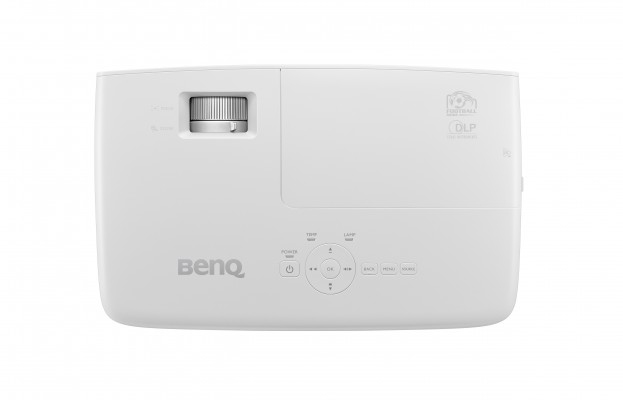

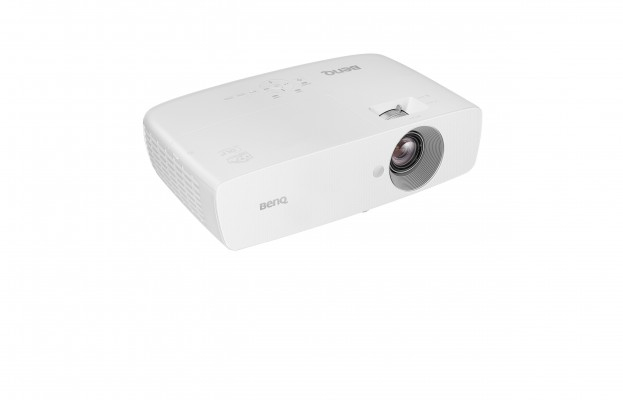

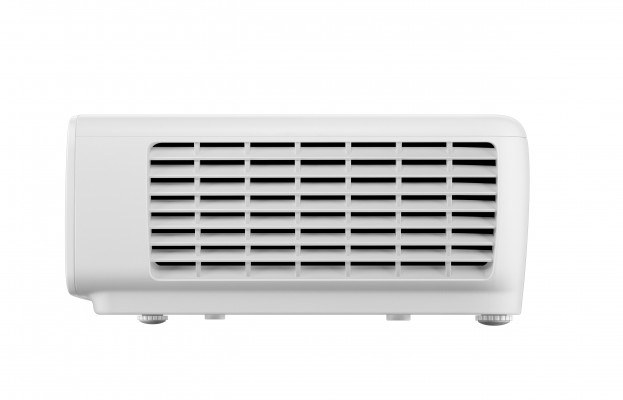

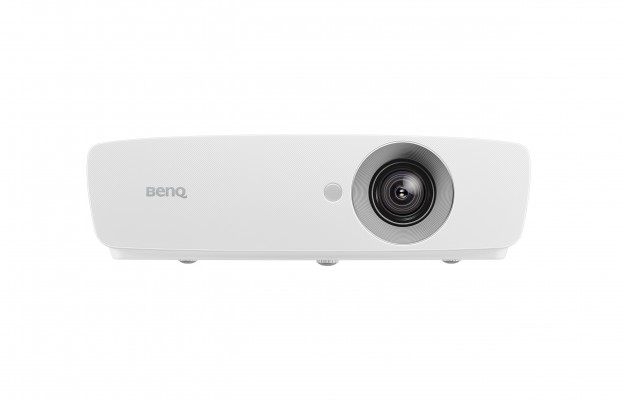

BenQ TH683 Standard throw projector 3200 ANSI lumens DLP 1080p (1920x1080) 3D White

BenQ TH683 Standard throw projector 3200 ANSI lumens DLP 1080p (1920x1080) 3D White

Model TH683Part no. 9H.JED77.23EEAN 4718755062520

73 specifications
  • Noise34 dB
  • TypeStandard throw projector
  • Weight2.65 kg
  • ColourWhite
  • Projector brightness3200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
34 dB
Type
Standard throw projector
Weight
2.65 kg
Colour
White
Projector brightness
3200 ANSI lumens
Light source type
Lamp
Brand
BenQ
Model
TH683
Part numbers
9H.JED77.23E, 9H.JED77.23P
EAN / UPC
4718755062520
Also known as
BenQ TH683 Standard throw projector 3200 ANSI lumens DLP 1080p (1920x1080) 3D White

Specifications

73 specifications in 13 groups

Projector

Projector brightness3200 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Native aspect ratio16:9
Supported aspect ratios16:9
Screen size compatibility1524 - 7620 mm (60 - 300")
Contrast ratio (dynamic)10000:1
Number of colours1.073 billion colours
Horizontal synchronization (max)102 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, vertical-40 - 40°
Vertical synchronization (max)0.12 kHz
Vertical synchronization (min)0.023 kHz

Light source

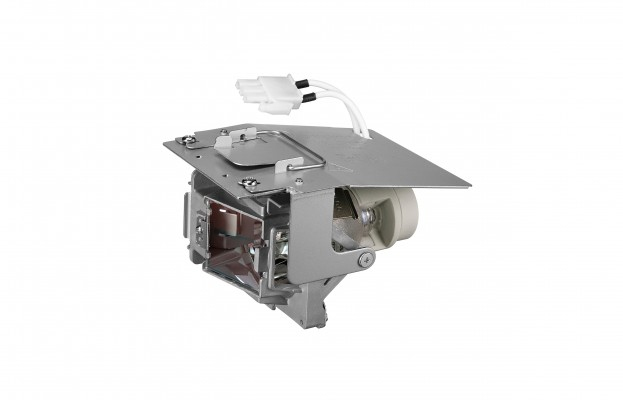

Light source typeLamp
Service life of light source3500 h
Service life of light source (economic mode)5000 h
Lamp power210 W

Lens system

Focal length range16.88 - 21.88 mm
Aperture range (F-F)2.59 - 2.87
Zoom ratio1.3:1
Throw ratio1.15 - 1.5
Offset115%

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDYes
3DYes
Supported 3D formatsFrame Sequential, Frame packing, Side by side, Top and bottom
Supported graphics resolutions640 x 480 (VGA), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video colour modesBright cinema, Cinema, Game, Sports

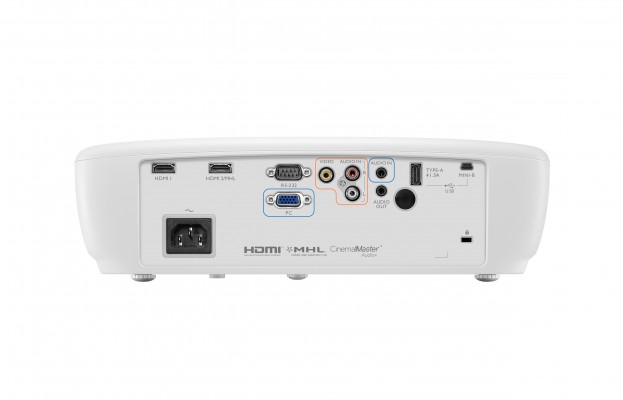

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity2
HDMI version1.4b
Composite video in1
USB 2.0 ports quantity1
Mini-USB 2.0 ports quantity1
Audio (L/R) in1
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
PC in (D-Sub)Yes
Remote (IR) output2
MHL version2.0
Mobile High-Definition Link (MHL)Yes

Features

Noise level34 dB
Noise level (economic mode)29 dB
On Screen Display (OSD) languagesBulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish
Number of OSD languages28

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power10 W

Design

Product typeStandard throw projector
Market positioningHome cinema
Product colourWhite
Cable lock slotYes

Power

Power sourceAC
Power consumption (typical)270 W
Power consumption (standby)0.5 W
Power consumption (PowerSave)220 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Operational conditions

Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Weight2.65 kg
Width346.2 mm
Depth214.8 mm
Height101.7 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
ManualYes
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
