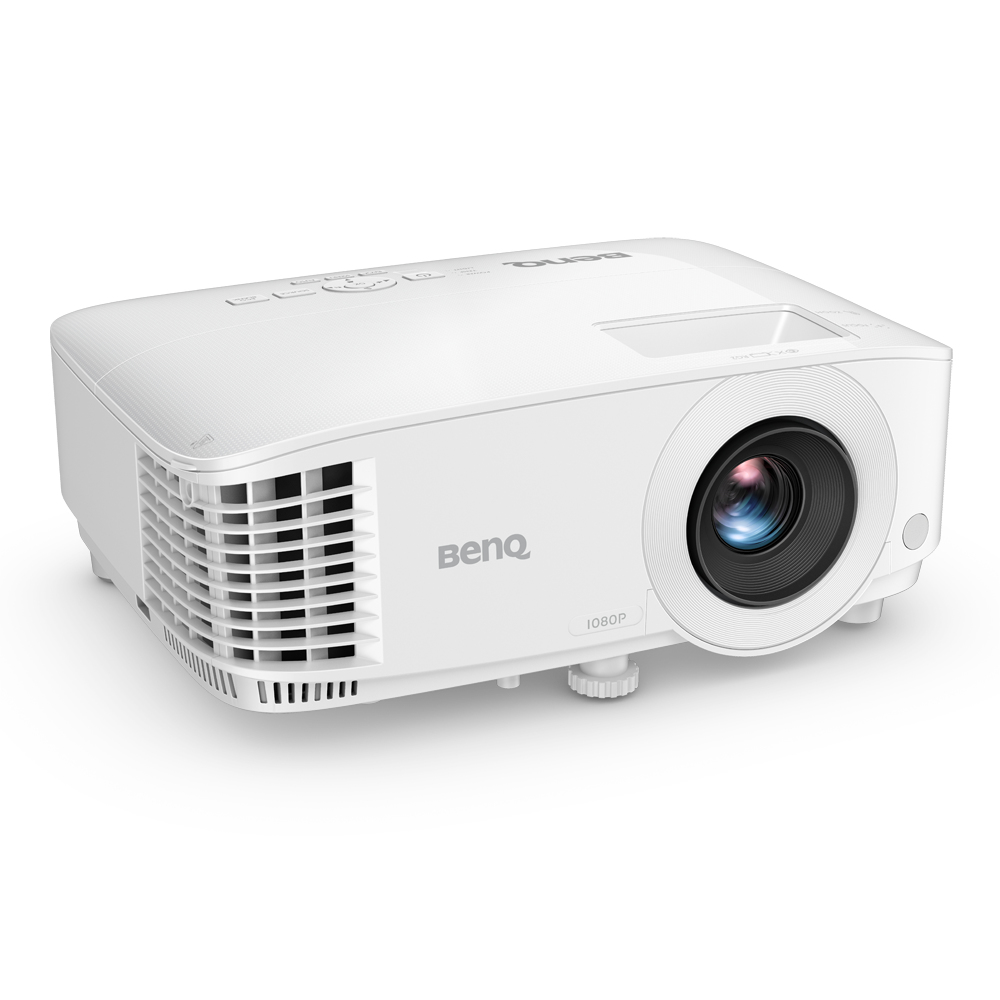

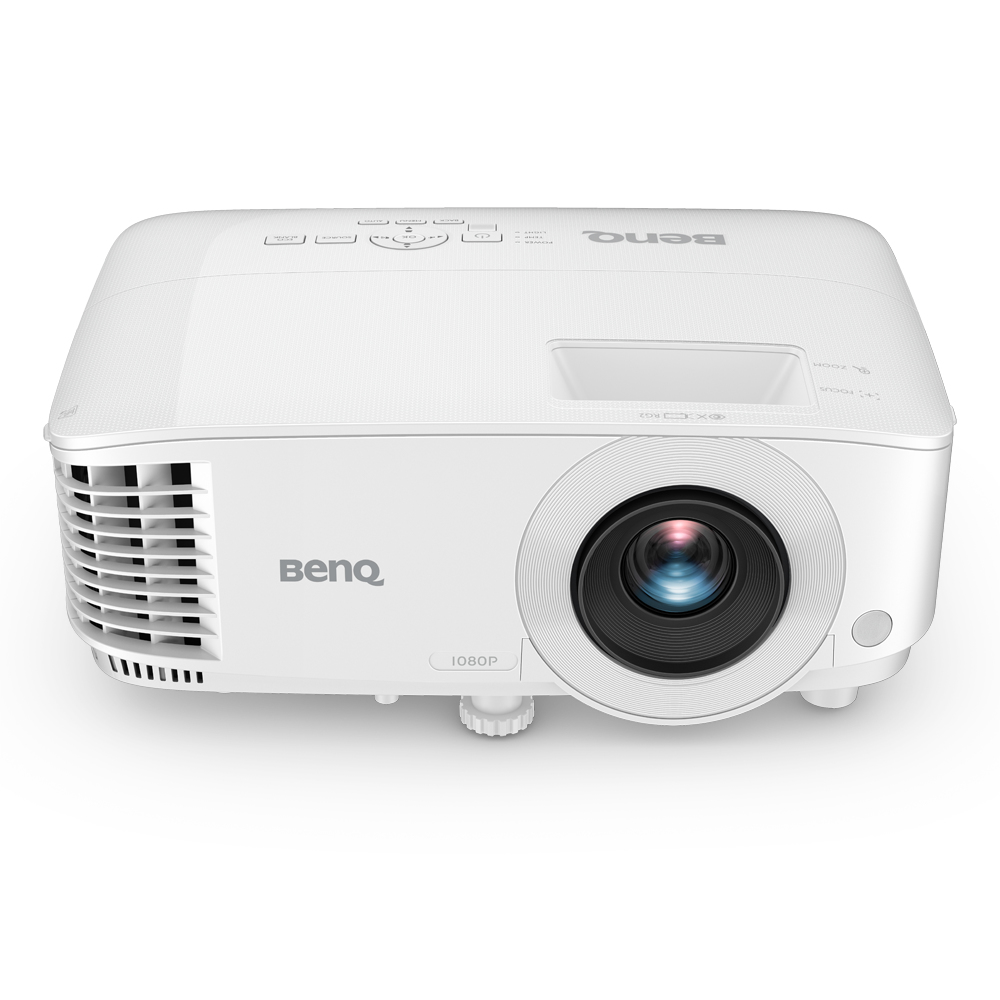

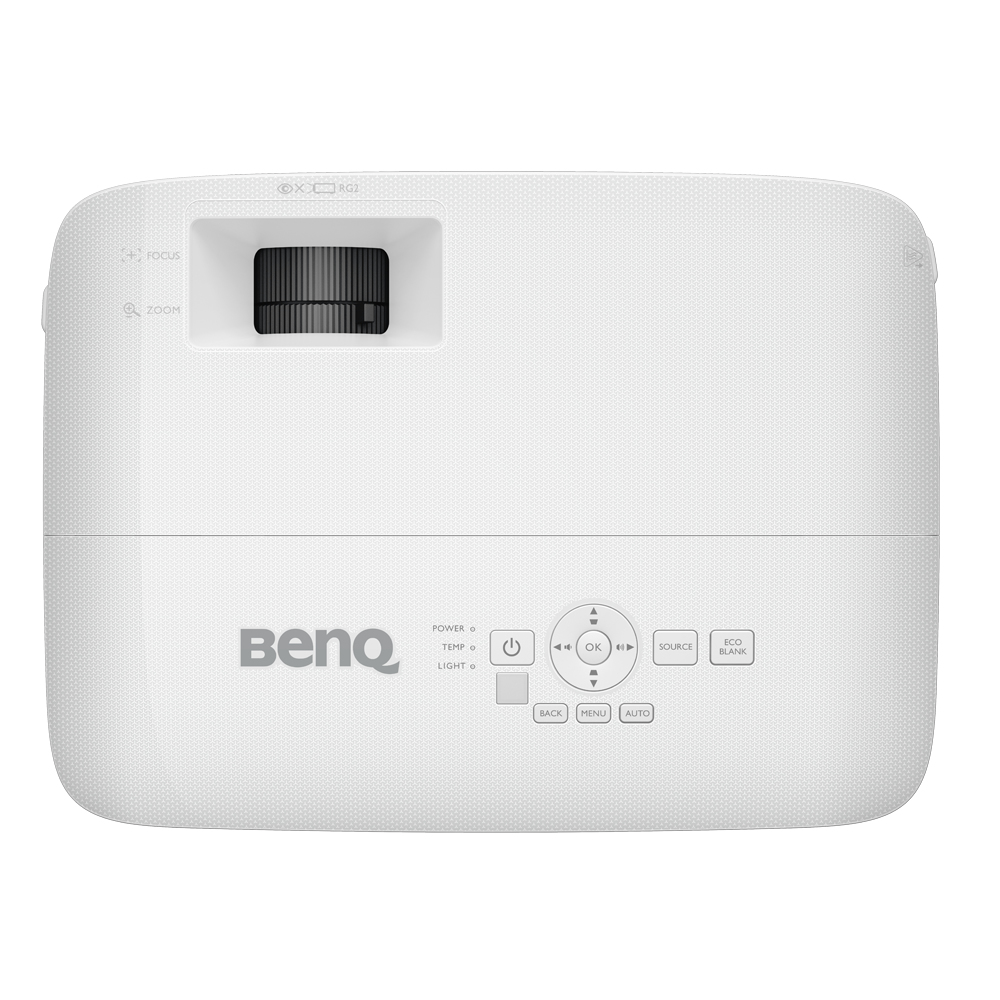

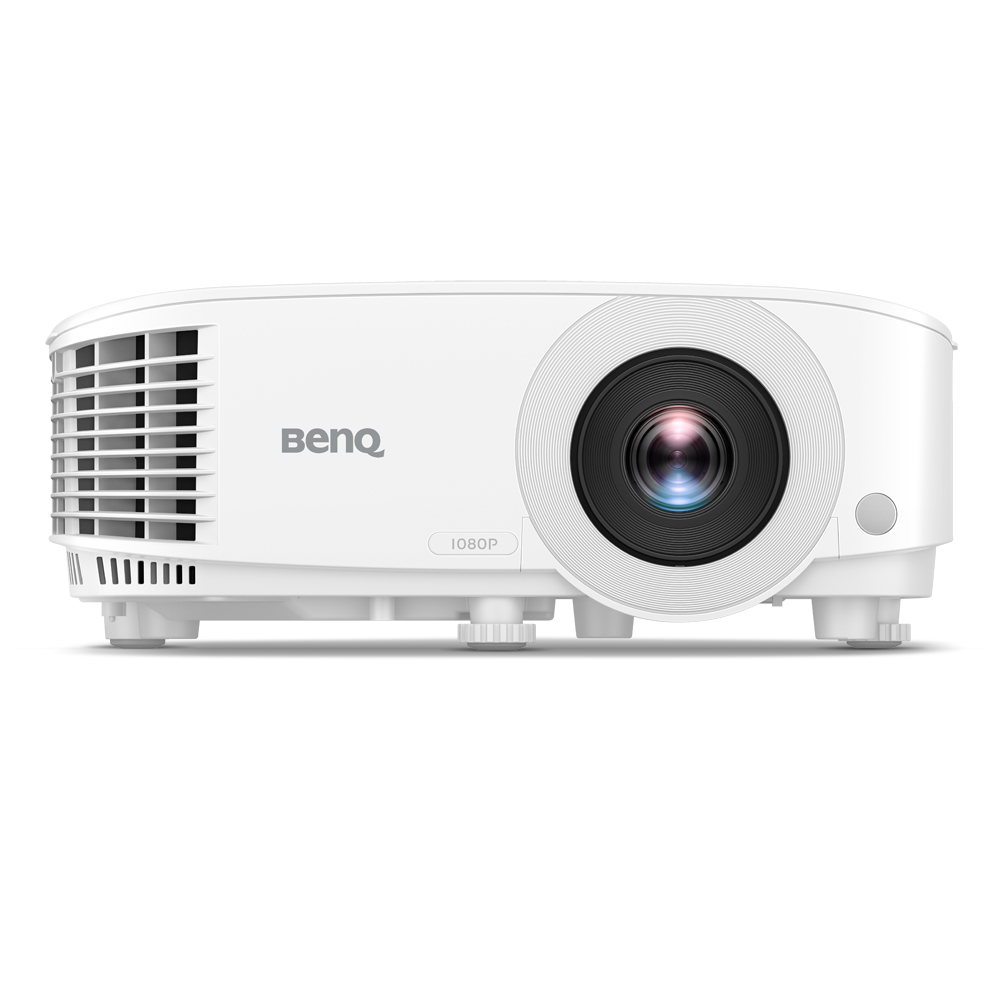

TH575 Standard throw projector 3800 ANSI lumens DLP 1080p (1920x1080) 3D White
Model TH575Part no. 9H.JRF77.13EEAN 4718755089763
55 specifications
- Noise34 dB
- TypeStandard throw projector
- Weight2.5 kg
- ColourWhite
- Projector brightness3800 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 34 dB
- Type
- Standard throw projector
- Weight
- 2.5 kg
- Colour
- White
- Projector brightness
- 3800 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- TH575
- Part numbers
- 9H.JRF77.13E, 9H.JRF77.13L
- EAN / UPC
- 4718755089763, 840046047740
- Also known as
- BenQ TH575 Standard throw projector 3800 ANSI lumens DLP 1080p (1920x1080) 3D White
Specifications
55 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3800 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 2540 - 3810 mm (100 - 150") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | ±40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 10000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 2.56 - 2.68 mm |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.49 - 1.64 |
| Offset | 108% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Video colour modes | Bright cinema, Cinema, Game, Living room, Sports |

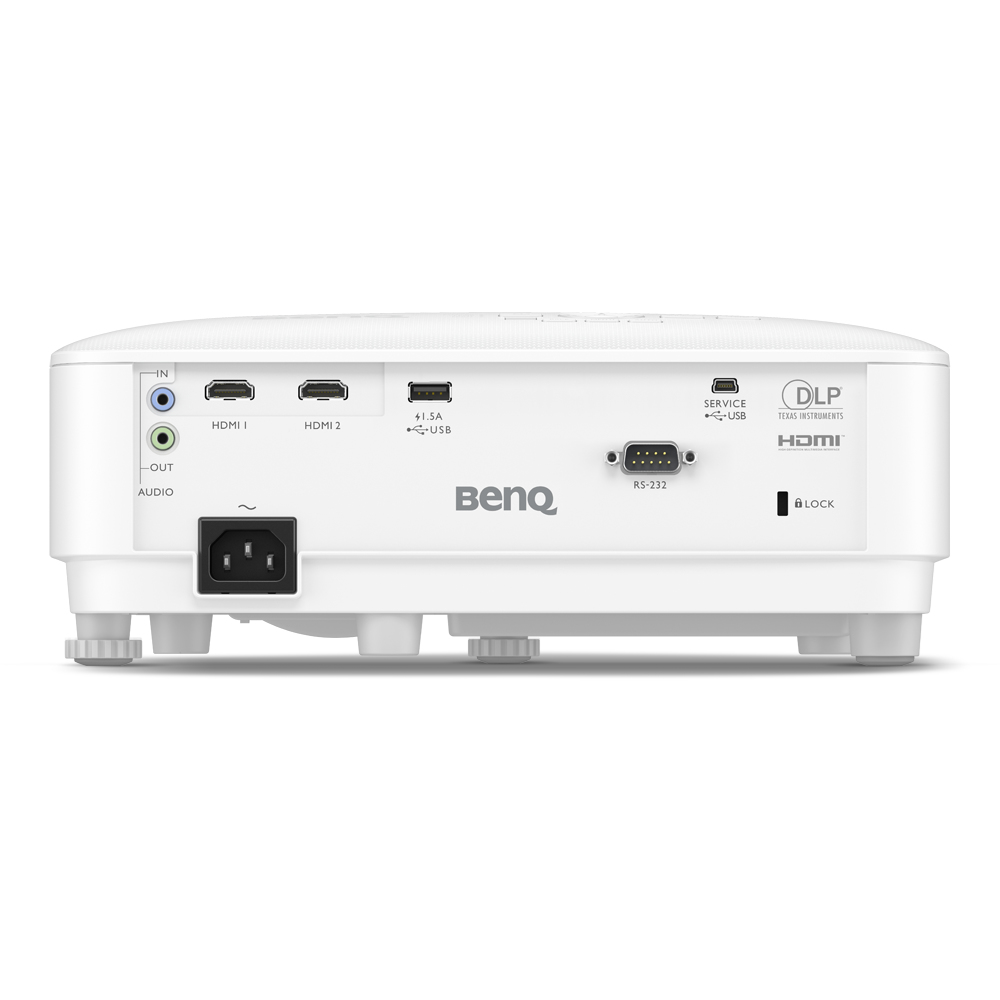

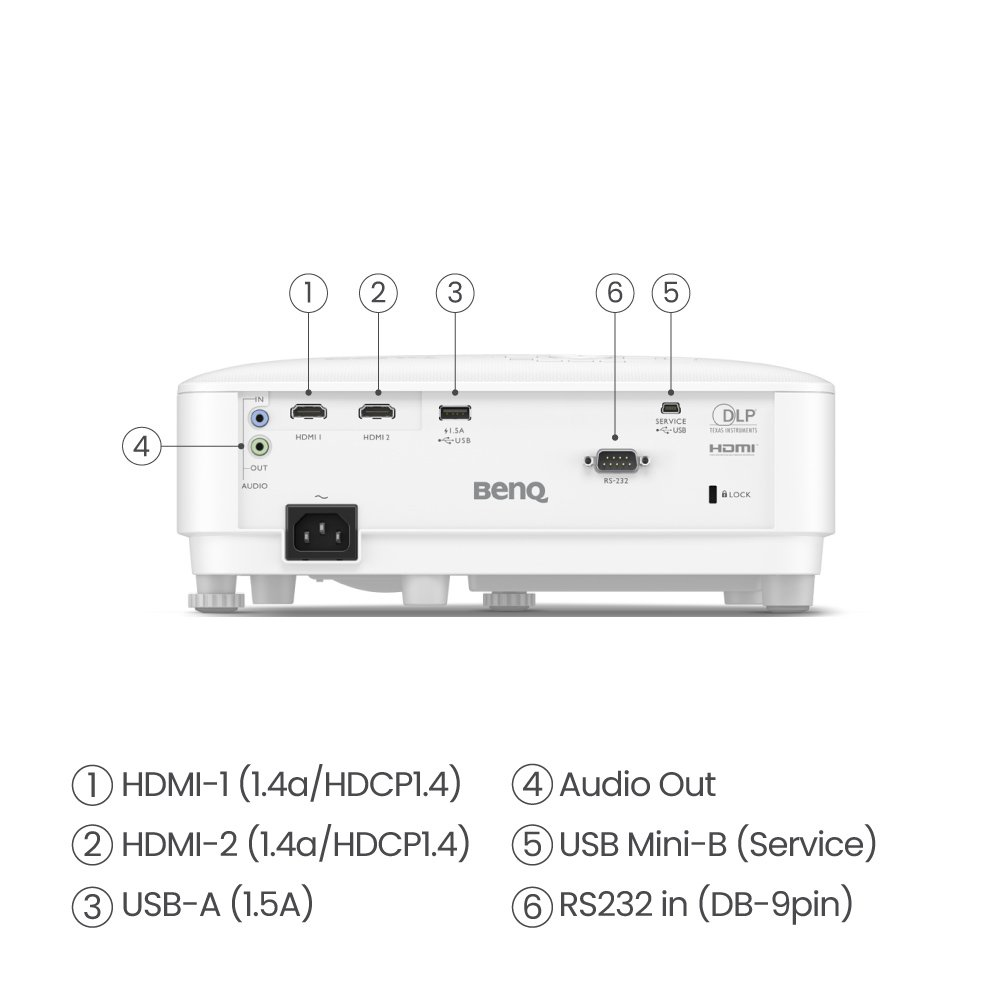

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
| Noise level (economic mode) | 29 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Cord length | 1.8 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |

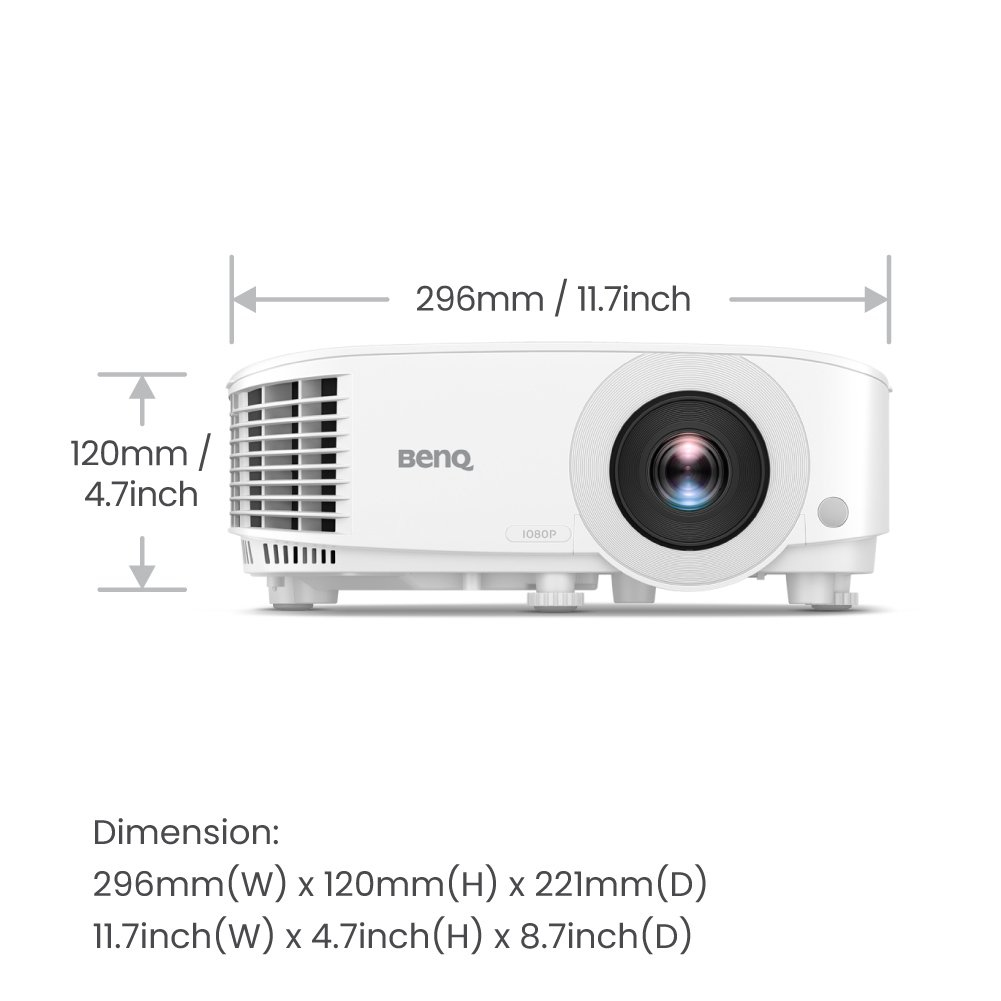

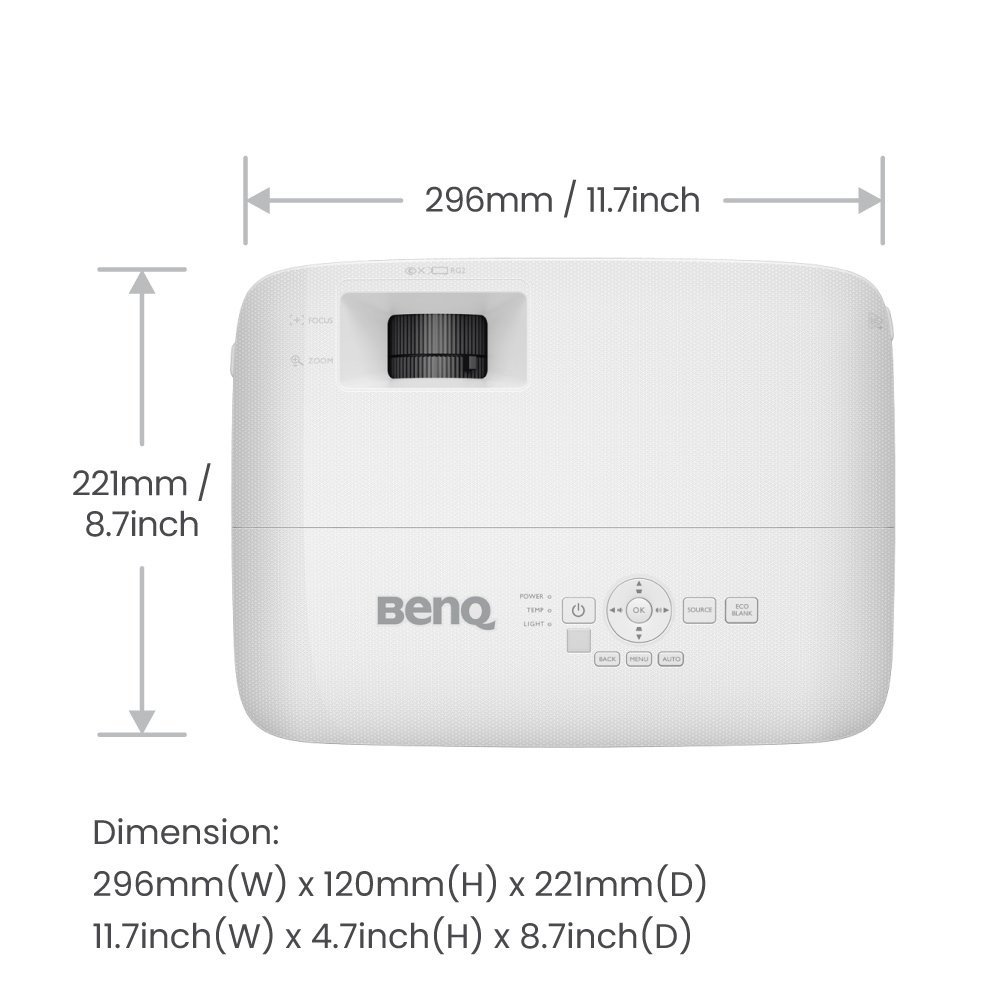

Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
| Width | 296 mm |
| Depth | 221 mm |
| Height | 120 mm |

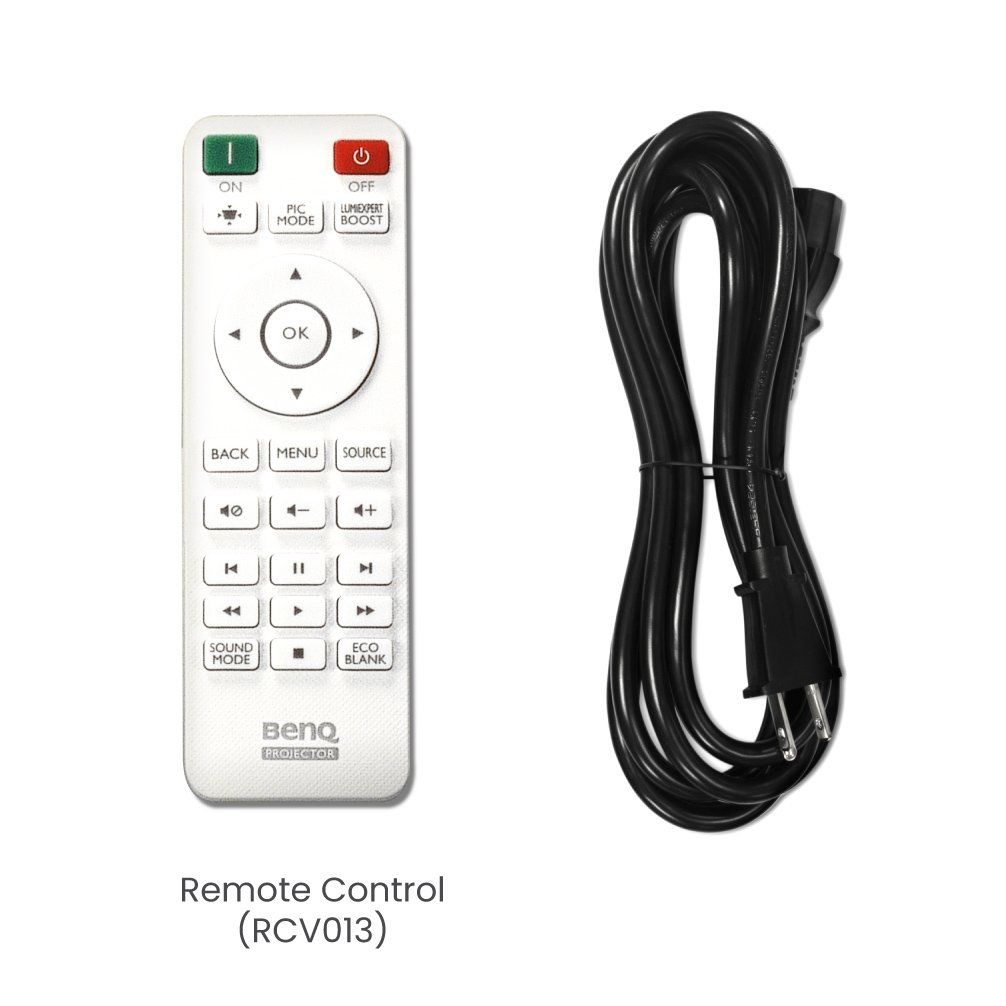

Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | Power |
| Quick start guide | Yes |
| Warranty card | Yes |
Technical details
| Specification | Value |
|---|---|
| Image lag time | 16.7 ms |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
