BenQ SH753 + PSR01

BenQ SH753 + PSR01

Model SH753 + PSR01Part no. 9H.JGJ77.24E/KIT

85 specifications
  • Noise36 dB
  • TypeStandard throw projector
  • Weight3.3 kg
  • ColourWhite
  • Projector brightness4300 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
36 dB
Type
Standard throw projector
Weight
3.3 kg
Colour
White
Projector brightness
4300 ANSI lumens
Light source type
Lamp
Brand
BenQ
Model
SH753 + PSR01
Part number
9H.JGJ77.24E/KIT
Also known as
BenQ SH753 + PSR01 Standard throw projector 4300 ANSI lumens DLP 1080p (1920x1080) White

Specifications

85 specifications in 16 groups

Projector

Projector brightness4300 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)13000:1
Native aspect ratio16:9
Supported aspect ratios4:3, 16:10, 16:9
Screen size compatibility657.9 - 8252.5 mm (25.9 - 324.9")
Number of colours1.073 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range23 - 120 Hz
Keystone correction, horizontal-30 - 30°
Keystone correction, vertical-30 - 30°

Light source

Light source typeLamp
Service life of light source2500 h
Service life of light source (economic mode)3500 h
Lamp power310 W
Lamps quantity1 lamp(s)

Lens system

Focal length range20.7 - 31.05 mm
Aperture range (F-F)2.42 - 2.97
Optical zoom1.5x
Throw ratio1.39 - 2.09:1
Offset114.9%

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HDYes
3DNo
Supported graphics resolutions640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 10
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

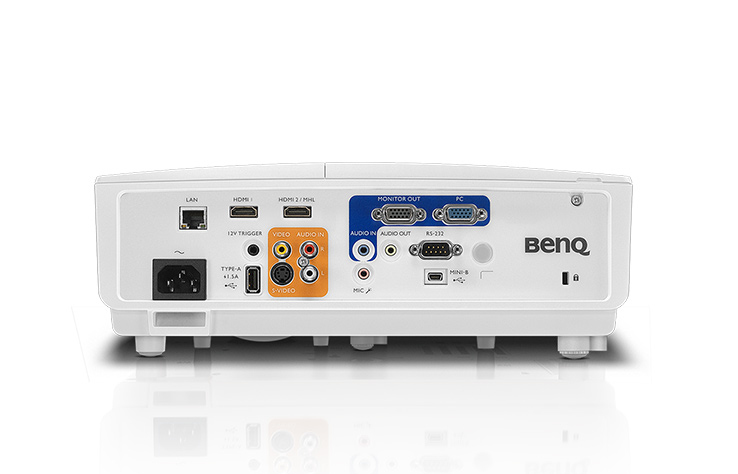

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in1
Audio (L/R) out1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
Remote (IR) output2
12V triggerYes
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level36 dB
Noise level (economic mode)31 dB
On Screen Display (OSD)Yes

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power10 W

Design

Product typeStandard throw projector
Market positioningBusiness
Product colourWhite
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)365 W
Power consumption (standby)0.5 W
Power consumption (max)420 W
Power consumption (network standby)2 W
Power consumption (economy mode)290 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Operating altitude0 - 3000 m

Weight & dimensions

Weight3.3 kg
Width314 mm
Depth233 mm
Height117 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedVGA
ManualYes
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
