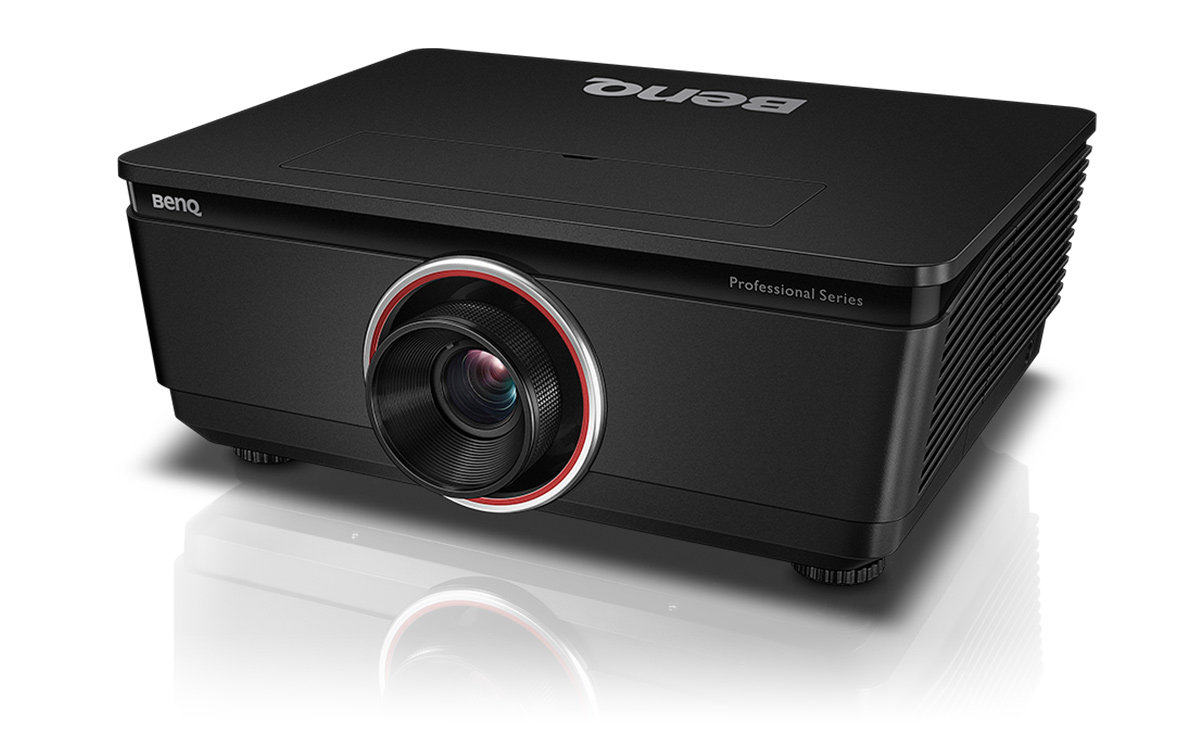

BenQ PX9230 Large venue projector 6000 ANSI lumens DLP XGA (1024x768) Black
Model PX9230Part no. 9H.JHC77.25EEAN 4718755070907
70 specifications
- Noise38 dB
- TypeLarge venue projector
- Weight8.6 kg
- ColourBlack
- Projector brightness6000 ANSI lumens
- Service life of light source3000 h
Overview
- Noise
- 38 dB
- Type
- Large venue projector
- Weight
- 8.6 kg
- Colour
- Black
- Projector brightness
- 6000 ANSI lumens
- Service life of light source
- 3000 h
- Brand
- BenQ
- Category
- Data Projector
- Model
- PX9230
- Part numbers
- 9H.JHC77.25E, PX9230
- EAN / UPC
- 4718755070907, 840046038212
- Also known as
- BenQ PX9230 Large venue projector 6000 ANSI lumens DLP XGA (1024x768) Black
Specifications
70 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 6000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 6000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 1270 - 7620 mm (50 - 300") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 3000 h |
| Service life of light source (economic mode) | 4000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom capability | Yes |
| Zoom type | Manual |
| Digital zoom | 2x |
| Horizontal lens shift range | -5 - 5% |
| Vertical lens shift range | -10 - 50% |
| Number of optional lenses supported | 5 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

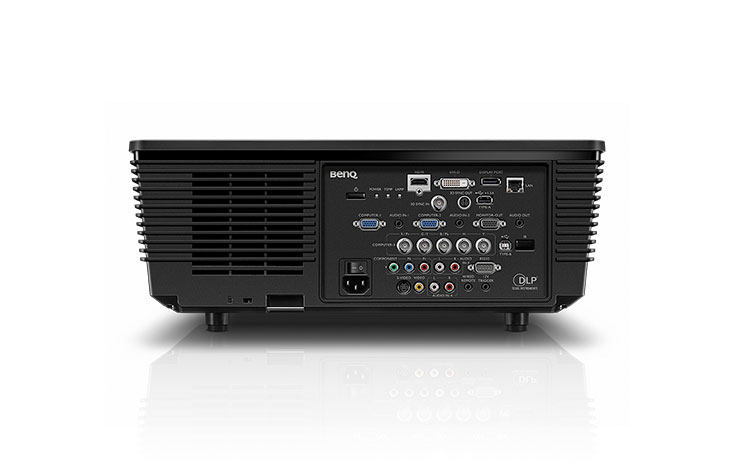

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 1 |
| DVI port | Yes |
| DisplayPorts quantity | 1 |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| BNC input ports | 5 |
| 12V trigger | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
| Optical disc player type | Not included |
Features
| Specification | Value |
|---|---|
| Noise level | 38 dB |
| Noise level (economic mode) | 35 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Thai, Turkish |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | Black |
| Placement | Desktop |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 460 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 480 W |
| Power consumption (network standby) | 2 W |
| Power consumption (economy mode) | 355 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8.6 kg |
| Width | 431 mm |
| Depth | 320.5 mm |
| Height | 167 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC, VGA |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
