BenQ MX816ST Short throw projector 3000 ANSI lumens DLP XGA (1024x768) 3D Grey, White
Model MX816STPart no. 9H.J7377.13EEAN 840046025021
69 specifications
- Noise36 dB
- TypeShort throw projector
- Weight2.8 kg
- ColourGrey, White
- Projector brightness3000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 36 dB
- Type
- Short throw projector
- Weight
- 2.8 kg
- Colour
- Grey, White
- Projector brightness
- 3000 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- MX816ST
- Part numbers
- 9H.J7377.13E, MX816ST, 9H.J7377.14L, 9H.J7377.14E
- EAN / UPC
- 840046025021, 4718755035906, 8400460250212
- Also known as
- BenQ MX816ST Short throw projector 3000 ANSI lumens DLP XGA (1024x768) 3D Grey, White
Specifications
69 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3, 16:9, 16:10 |
| Screen size compatibility | 1016 - 7620 mm (40 - 300") |
| Contrast ratio (dynamic) | 13000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 31 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | ±40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 6500 h |
| Lamp power | 210 W |
Lens system
| Specification | Value |
|---|---|
| Zoom ratio | Fixed |
| Throw ratio | 0.61:1 |
| Offset | 130% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | Yes |
| Supported graphics resolutions | 1024 x 768 (XGA), 1600 x 1200 (UXGA), 640 x 480 (VGA) |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |

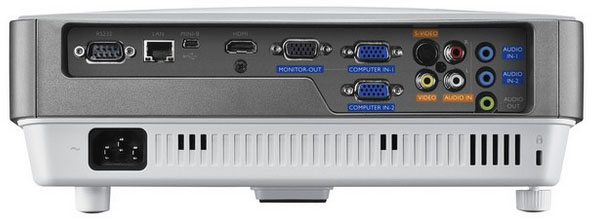

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 1.3 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| USB connector type | USB Type-B |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 36 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| Preset modes | Cinema, Custom, Dynamic, Presentation, sRGB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Short throw |
| Product colour | Grey, White |
| Placement | Desktop, Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 275 W |
| Power consumption (standby) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 278 mm |
| Depth | 232.6 mm |
| Height | 114.4 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
