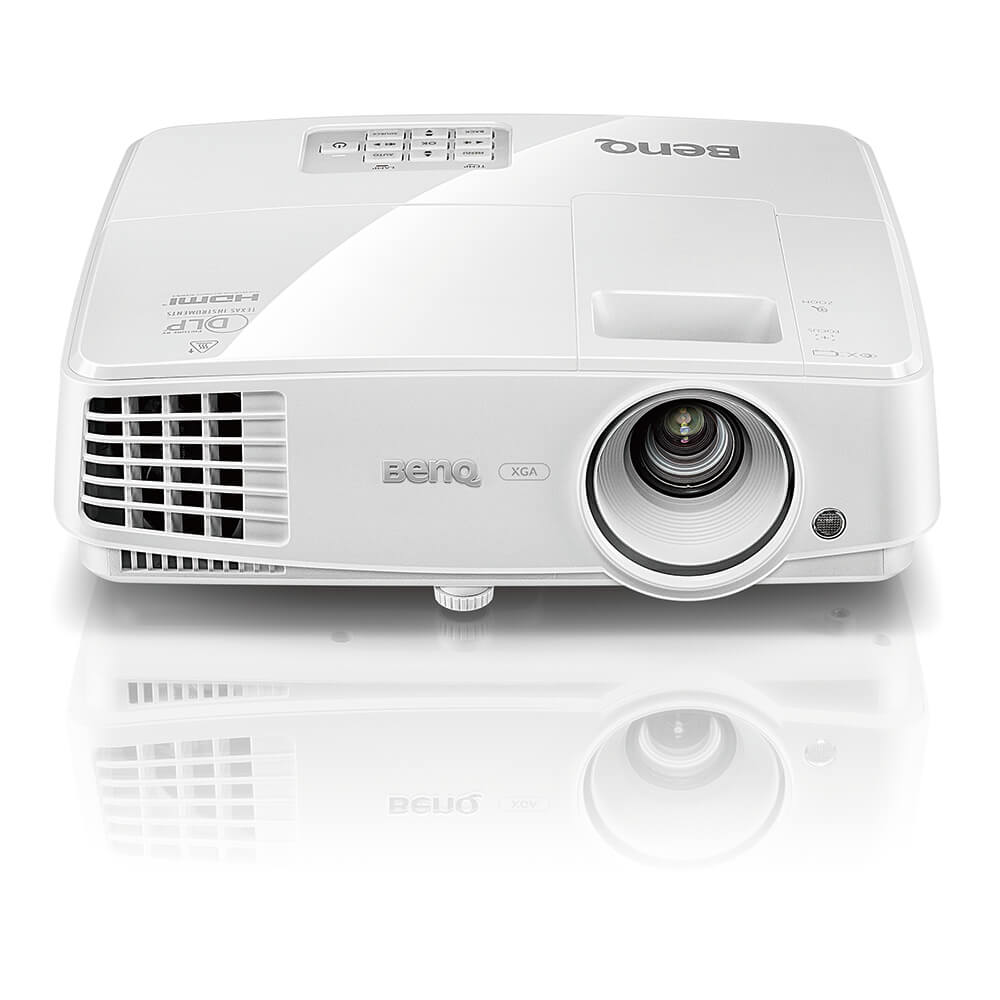

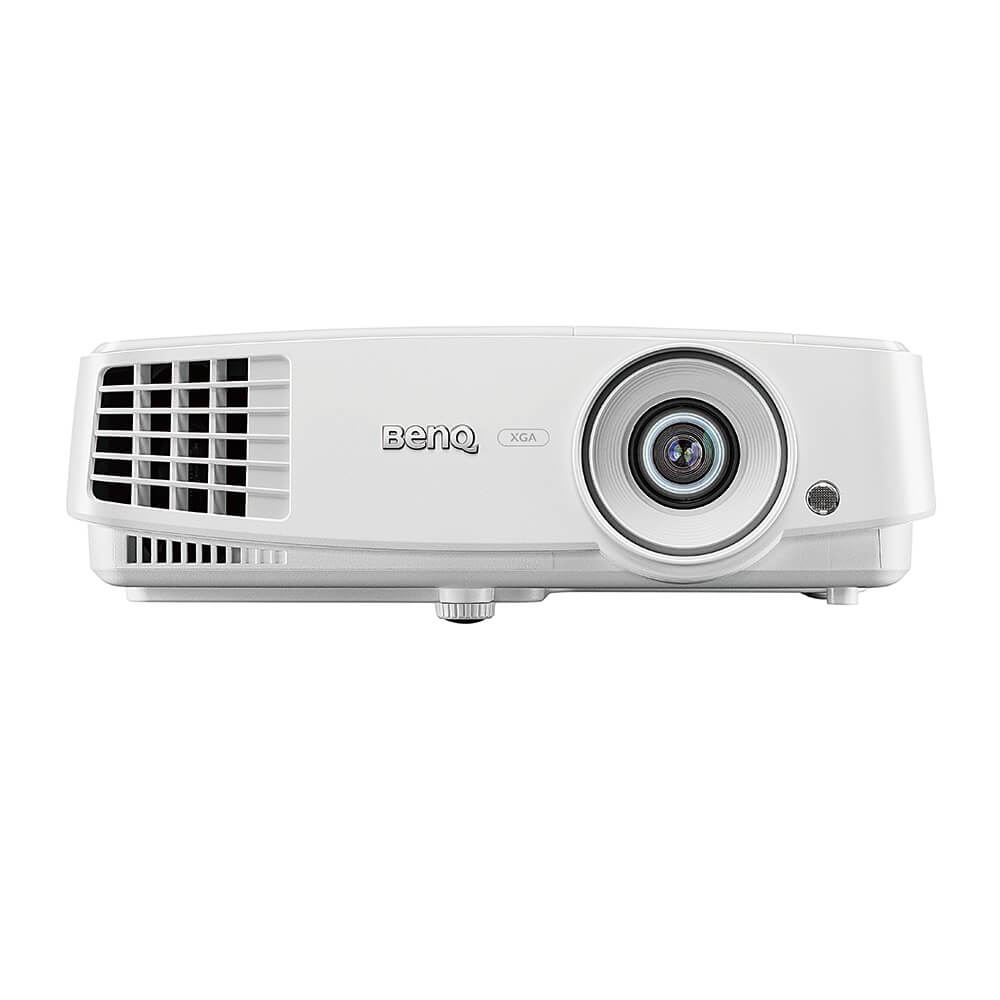

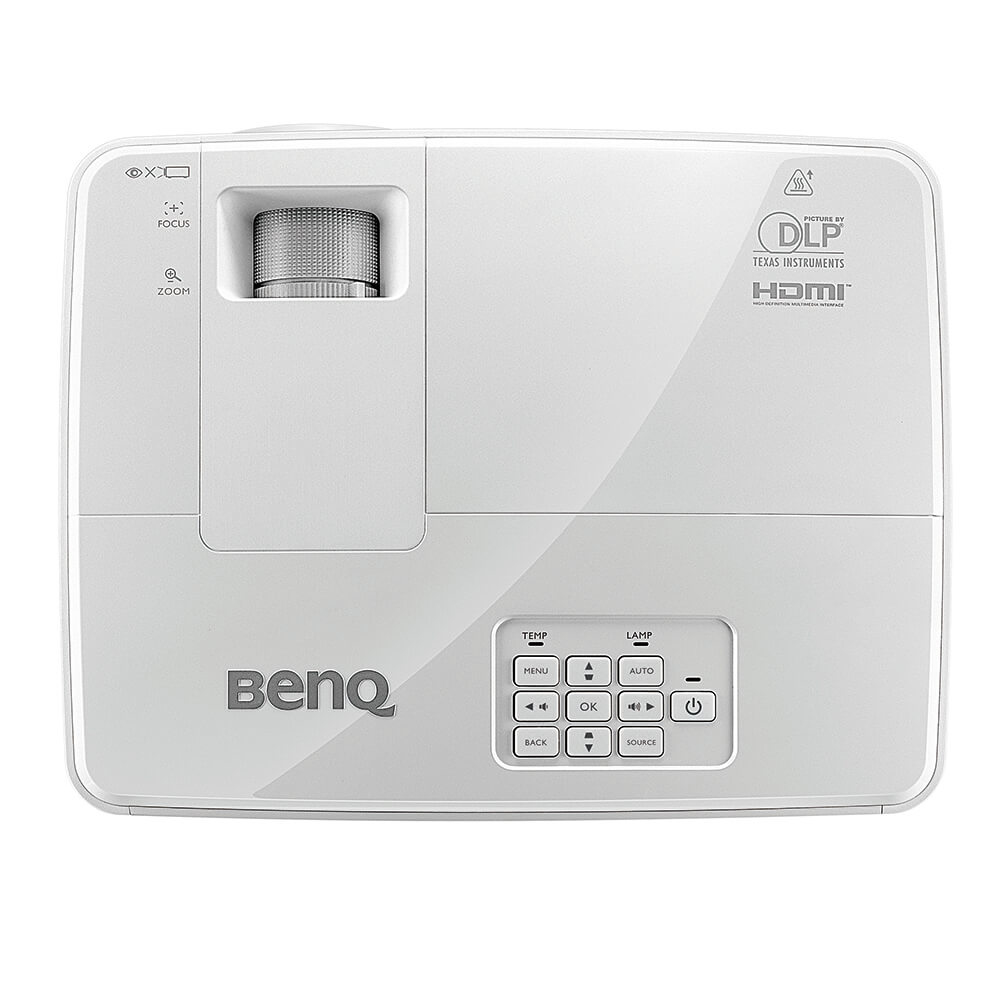

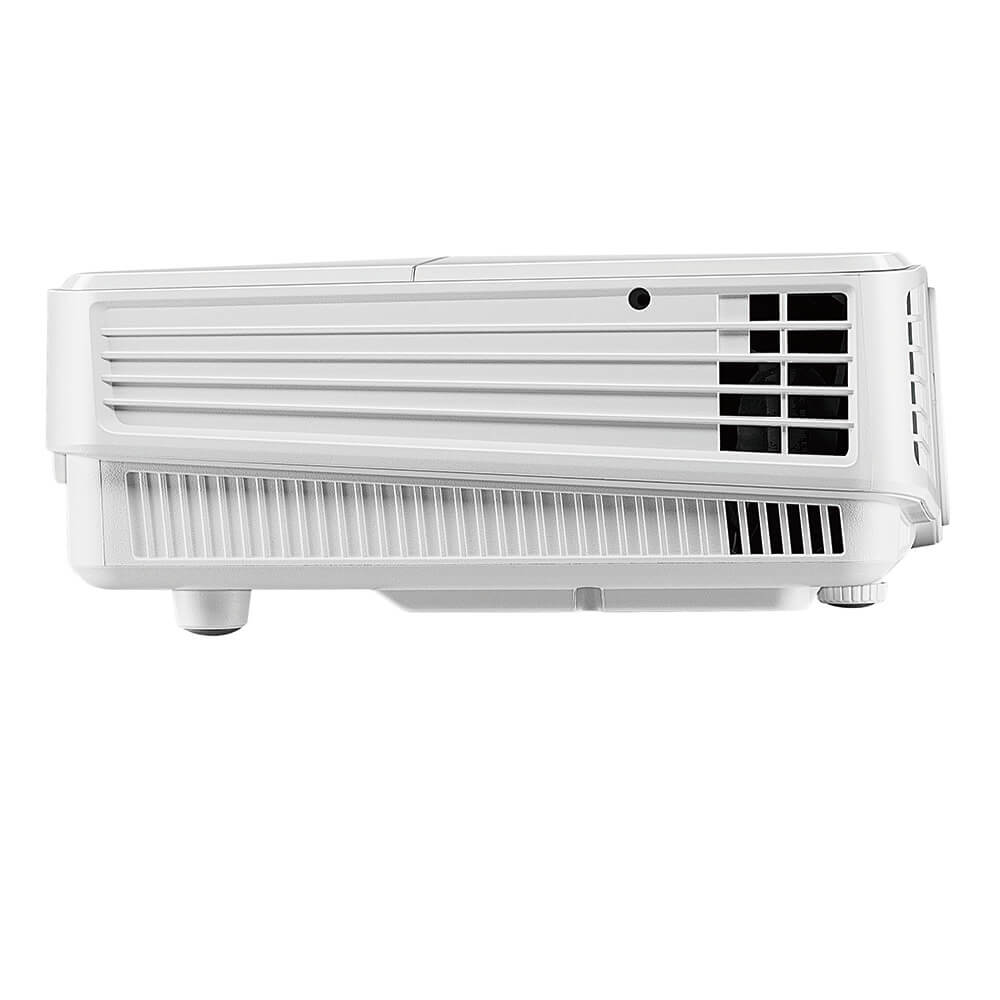

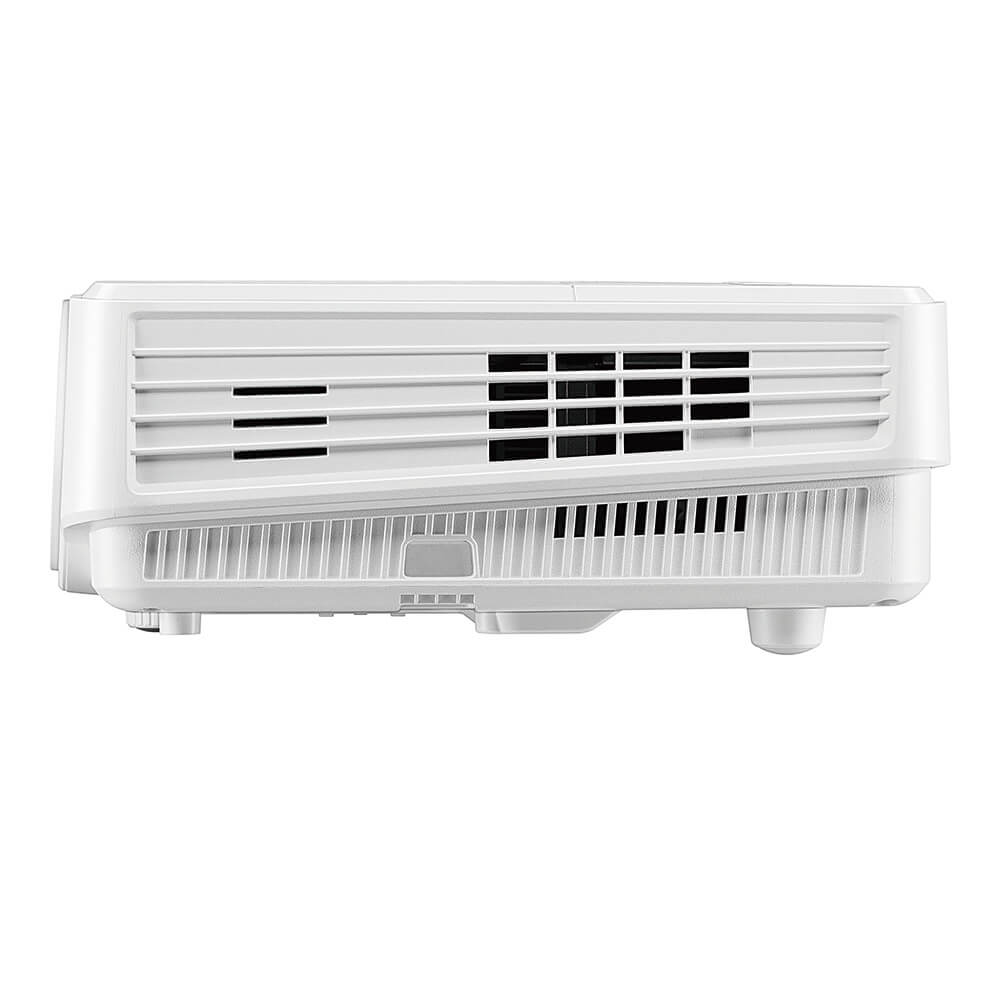

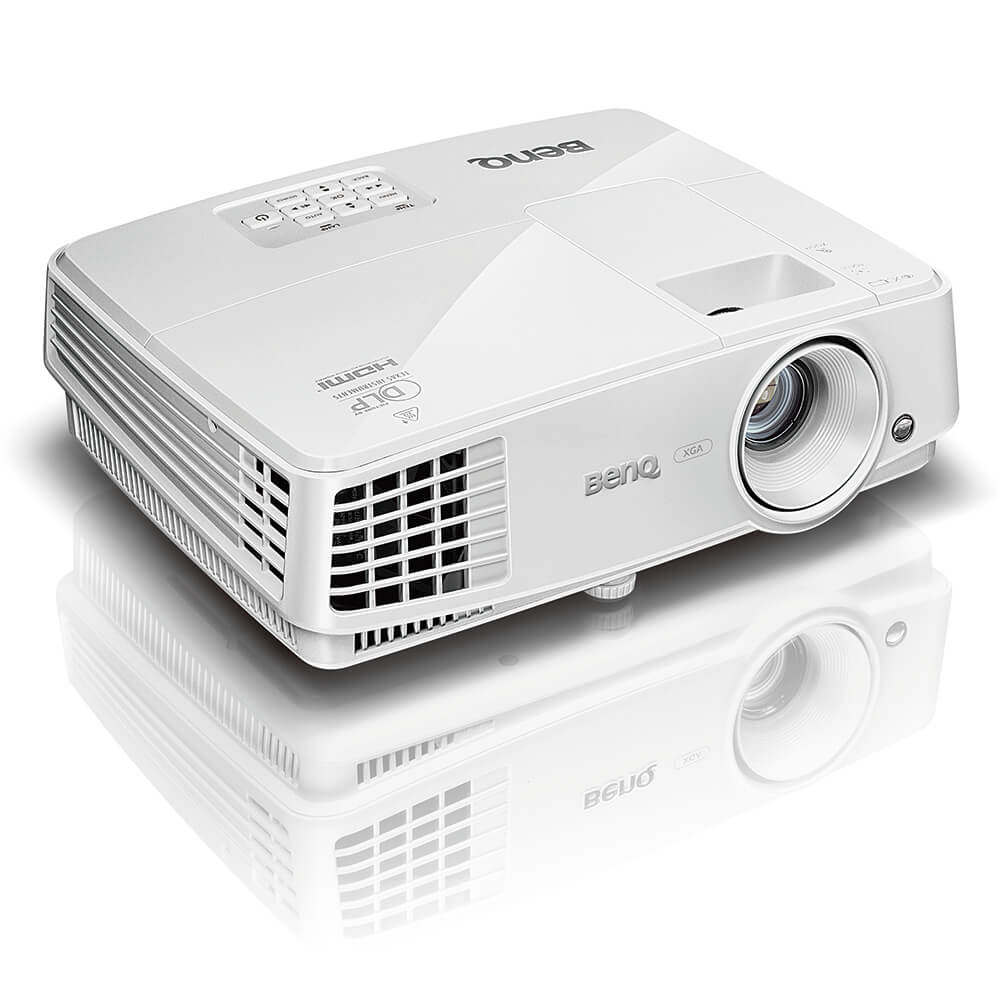

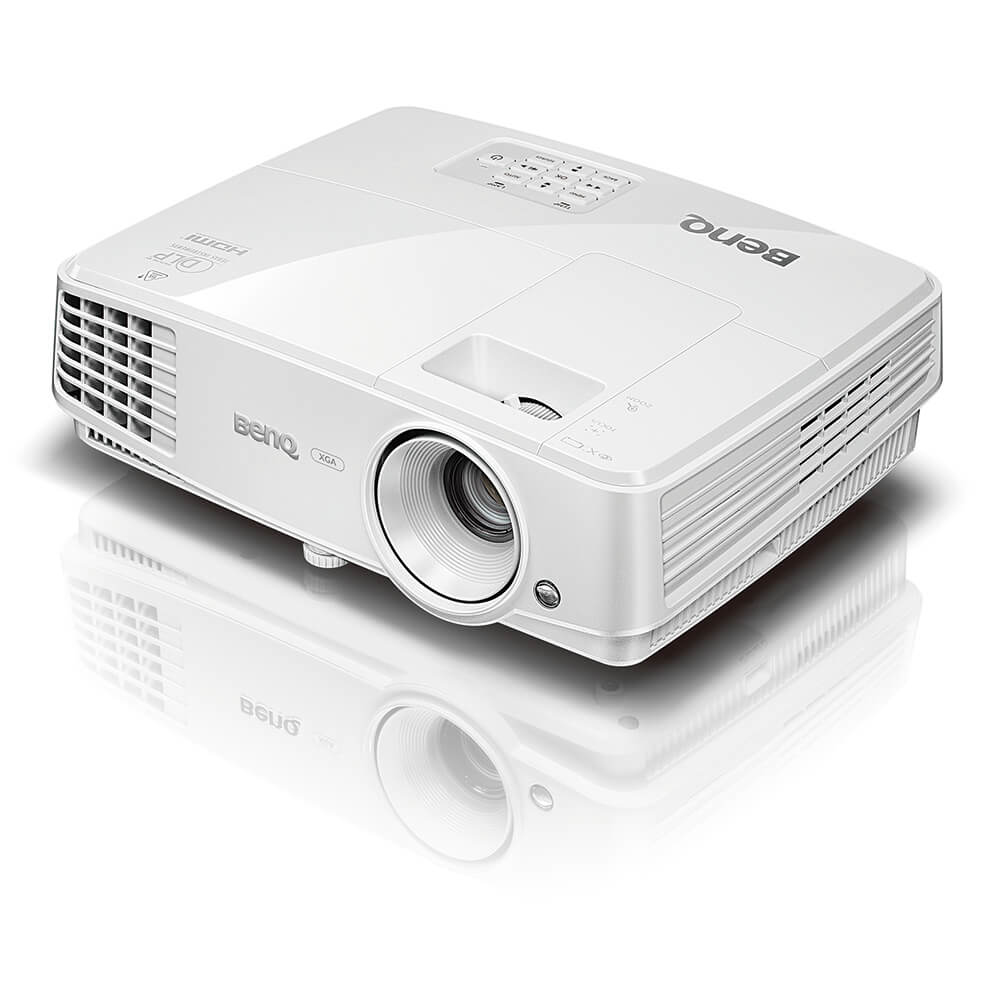

MX707 Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) White
Model MX707Part no. 9H.JKG77.13L
72 specifications
- Noise33 dB
- TypeStandard throw projector
- ColourWhite
- Projector brightness3500 ANSI lumens
- Service life of light source5000 h
- FocusNo
Overview
- Noise
- 33 dB
- Type
- Standard throw projector
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Service life of light source
- 5000 h
- Focus
- No
- Brand
- BenQ
- Category
- Data Projector
- Model
- MX707
- Part number
- 9H.JKG77.13L
- Also known as
- BenQ MX707 Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) White
Specifications
72 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 1524 - 3556 mm (60 - 140") |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Colour light output | 3500 ANSI lumens |
| Keystone correction, vertical | -30 - 30° |
| White light output | 3500 ANSI lumens |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | No |
| Zoom capability | Yes |
| Zoom type | Fixed |
| Zoom ratio | 1.3:1 |
| Throw ratio | 1.51 - 1.97 |
| Offset | 120% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

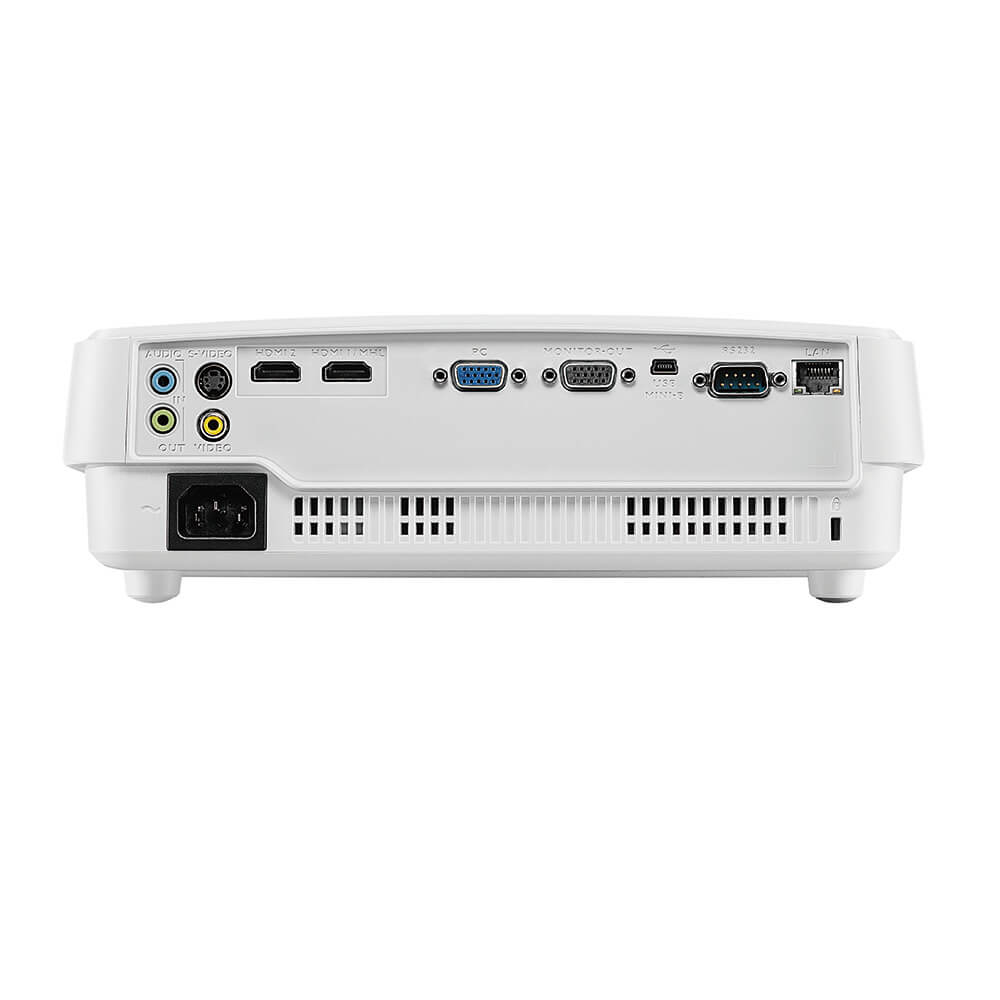

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 0 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, INC, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 265 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (network standby) | 2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Supplier features
| Specification | Value |
|---|---|
| Battery type | AAA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 283 mm |
| Depth | 222 mm |
| Height | 95 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | VGA |
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
| Number of batteries supported | 2 |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
