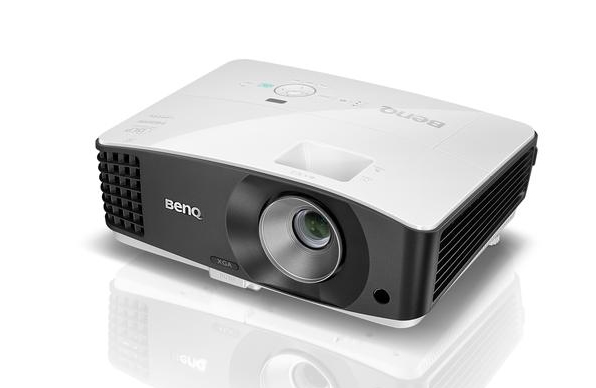

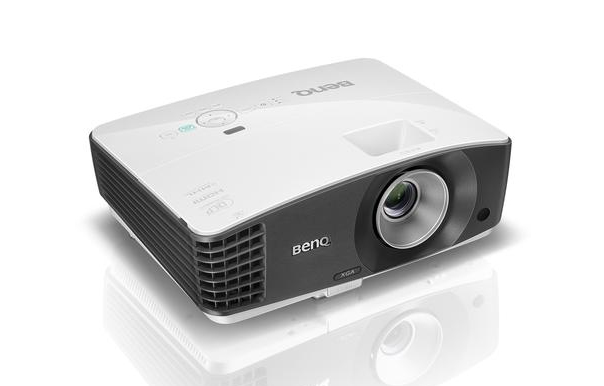

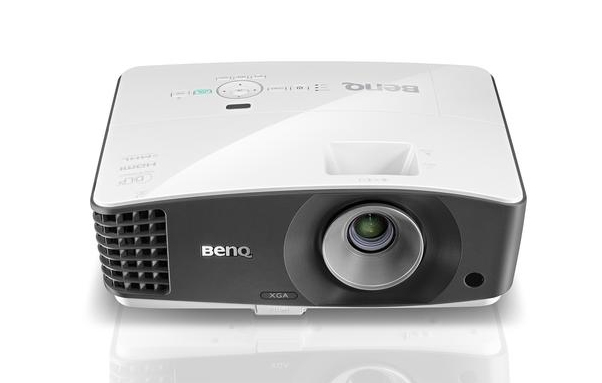

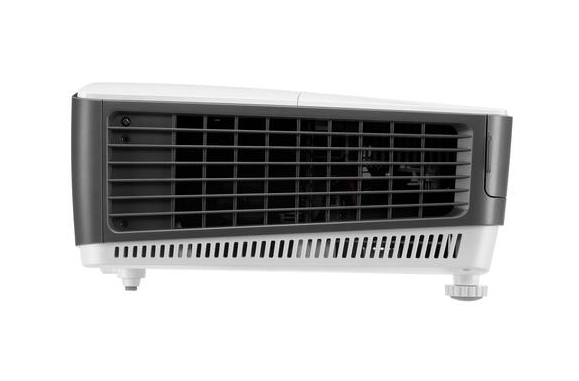

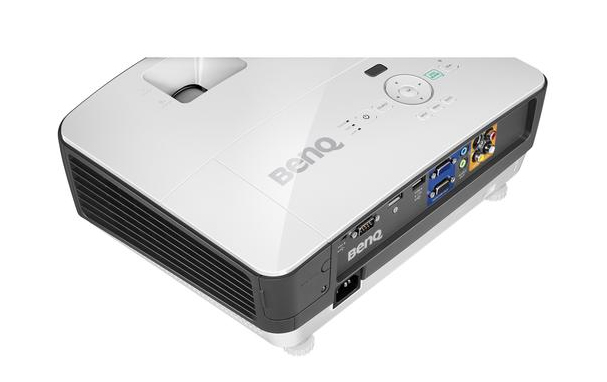

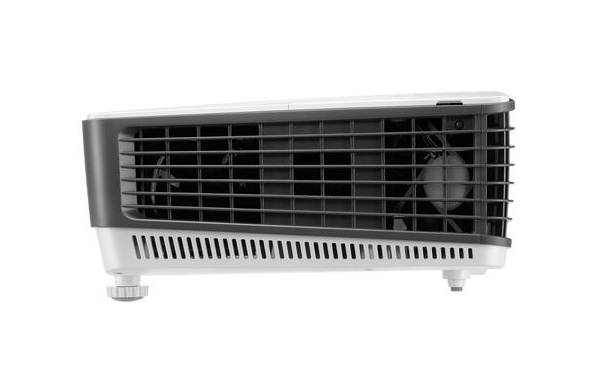

BenQ MX704 Standard throw projector 4000 ANSI lumens DLP XGA (1024x768) 3D Black, White
Model MX704Part no. 9H.JCJ77.13LEAN 4718755053375
76 specifications
- Noise31 dB
- TypeStandard throw projector
- Weight3 kg
- ColourBlack, White
- Projector brightness4000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 31 dB
- Type
- Standard throw projector
- Weight
- 3 kg
- Colour
- Black, White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- MX704
- Part numbers
- 9H.JCJ77.13L, 9H.JCJ77.13E
- EAN / UPC
- 4718755053375, 767261262133, 767261283589, 5054629899588
- Also known as
- BenQ MX704 Standard throw projector 4000 ANSI lumens DLP XGA (1024x768) 3D Black, White
Specifications
76 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 13000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3000 h |
| Service life of light source (economic mode) | 7500 h |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 18.18 - 21.84 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.96 - 2.15:1 |
| Offset | 120% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | SECAM, NTSC, PAL |
| Full HD | No |
| 3D | Yes |
| Supported 3D formats | Frame Sequential, Frame packing, Side by side, Top and bottom |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080i, 720p, 1080p, 480i, 576i, 480p, 576p |

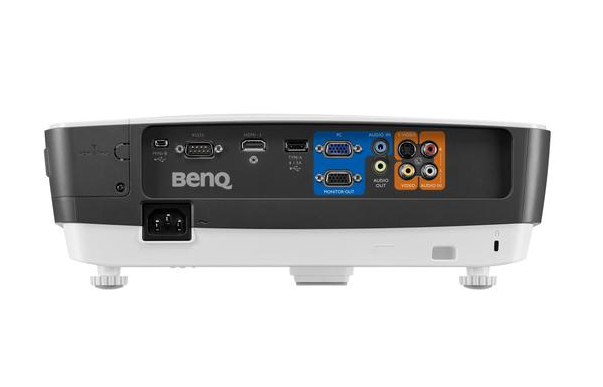

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| USB connector type | USB Type-A |
| CardBus PCMCIA slot type | No |
| CardBus PCMCIA slots quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
| Optical disc player type | Not included |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 28 dB |
| Preset modes | 3D, Dynamic, Cinema, sRGB, Custom, Presentation |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Dutch, Norwegian, Bulgarian, English, Indonesian, Spanish, Italian, Polish, Swedish, Simplified Chinese, Japanese, Portuguese, Thai, Traditional Chinese, Romanian, Turkish, Croatian, French, Korean, Russian, Czech, Greek, Danish, German, Hungarian |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | Black, White |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 350 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 216 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
| Width | 331 mm |
| Depth | 246.2 mm |
| Height | 129.4 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| 3D glasses included | No |
| Cables included | AC, VGA |
| Carrying case | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Tripod included | No |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| Audio input | 2 |
| RS-232 ports | 1 |
