BenQ MX631ST Short throw projector 3200 ANSI lumens DLP XGA (1024x768) 3D Black, White

BenQ MX631ST Short throw projector 3200 ANSI lumens DLP XGA (1024x768) 3D Black, White

Model MX631STPart no. 9H.JE177.13EEAN 4718755059001

93 specifications
  • Noise33 dB
  • TypeShort throw projector
  • Weight2.6 kg
  • ColourBlack, White
  • Projector brightness3200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
33 dB
Type
Short throw projector
Weight
2.6 kg
Colour
Black, White
Projector brightness
3200 ANSI lumens
Light source type
Lamp
Brand
BenQ
Model
MX631ST
Part numbers
9H.JE177.13E, 9H.JE177.13A, 9H.JE177.1HE
EAN / UPC
4718755059001, 840046032852
Also known as
BenQ MX631ST Short throw projector 3200 ANSI lumens DLP XGA (1024x768) 3D Black, White

Specifications

93 specifications in 16 groups

Projector

Projector brightness3200 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Native aspect ratio4:3
Supported aspect ratios16:10
Screen size compatibility1524 - 3048 mm (60 - 120")
Contrast ratio (dynamic)13000:1
Number of colours1.073 billion colours
Horizontal synchronization (max)102 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, vertical-30 - 30°
Vertical synchronization (max)0.12 kHz
Vertical synchronization (min)0.023 kHz

Light source

Light source typeLamp
Service life of light source4500 h
Service life of light source (economic mode)6000 h
Lamp power196 W

Lens system

Focal length range10.2 - 12.24 mm
Aperture range (F-F)2.6 - 2.78
Zoom ratio1.2:1
Throw ratio0.9 - 1.08:1
Offset110%

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDYes
3DYes
Supported 3D formatsFrame Sequential
Colour modes (3D)Cinema
Supported graphics resolutions640 x 480 (VGA), 1600 x 1200 (UXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video processing30 bit

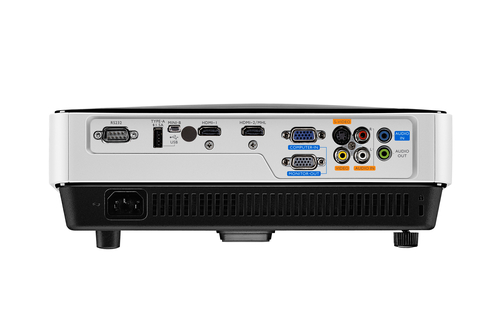

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI version1.4a
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Mini-USB 2.0 ports quantity1
Audio (L/R) in1
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
PC in (D-Sub)Yes
USB connector typeMini-USB B, USB Type-A
AV outputYes
MHL version2.0
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANNo
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level33 dB
Noise level (economic mode)28 dB
HDCPNo
Preset modes3D, Bright, Cinema, Custom, Presentation, sRGB
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesArabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish
Number of OSD languages28
CertificationSmartEco

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power10 W

Design

Product typeShort throw projector
Market positioningShort throw
Product colourBlack, White
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)305 W
Power consumption (standby)0.5 W
Power consumption (economy mode)220 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Weight & dimensions

Weight2.6 kg
Width287.3 mm
Depth232.6 mm
Height114.4 mm
Package width400 mm
Package depth320 mm
Package height170 mm
Package weight3.5 kg

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedAC, VGA
ManualYes
Quick start guideYes
Warranty cardYes

Logistics data

Harmonized System (HS) code85286200

Other features

RS-232 ports1
