BenQ MX570 Standard throw projector 3200 ANSI lumens DLP XGA (1024x768) 3D White
Model MX570Part no. 9H.JCS77.14AEAN 5054629491836
72 specifications
- TypeStandard throw projector
- Weight1.9 kg
- ColourWhite
- Projector brightness3200 ANSI lumens
- Light source typeLamp
- Focal length range16.88 - 21.88 mm
Overview
- Type
- Standard throw projector
- Weight
- 1.9 kg
- Colour
- White
- Projector brightness
- 3200 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 16.88 - 21.88 mm
- Brand
- BenQ
- Category
- Data Projector
- Model
- MX570
- Part numbers
- 9H.JCS77.14A, 9H.JCS77.14E
- EAN / UPC
- 5054629491836, 4718755053658, 5054533671393, 840046030957
- Also known as
- BenQ MX570 Standard throw projector 3200 ANSI lumens DLP XGA (1024x768) 3D White
Specifications
72 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3200 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 13000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 190 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 16.88 - 21.88 mm |
| Aperture range (F-F) | 2.59 - 2.87 |
| Zoom ratio | 1.3:1 |
| Throw ratio | 1.51 - 1.97:1 |
| Offset | 115% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | Yes |
| Supported 3D formats | Frame packing, Frame Sequential, Side by side, Top and bottom |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 640 x 480 (VGA) |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |

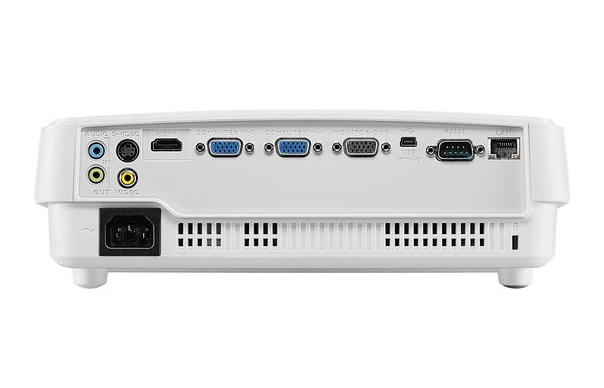

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| USB connector type | Mini-USB B |
| CardBus PCMCIA slot type | No |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
| Optical disc player type | Not included |
Features
| Specification | Value |
|---|---|
| Preset modes | 3D, Cinema, Custom, Dynamic, Presentation, sRGB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Thai, Turkish |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Desktop, Ceiling |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 280 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 220 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.9 kg |
| Width | 283 mm |
| Depth | 222 mm |
| Height | 95 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | VGA |
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
