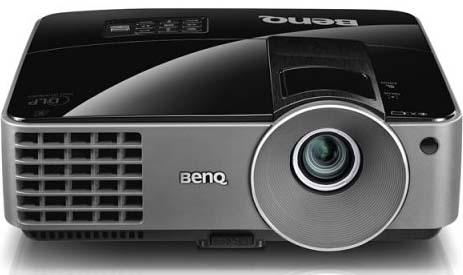

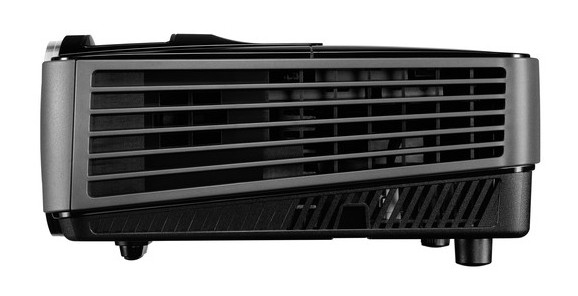

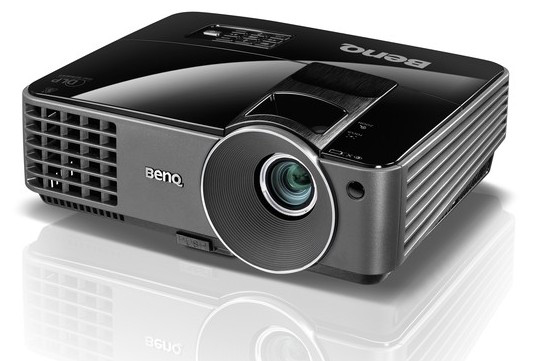

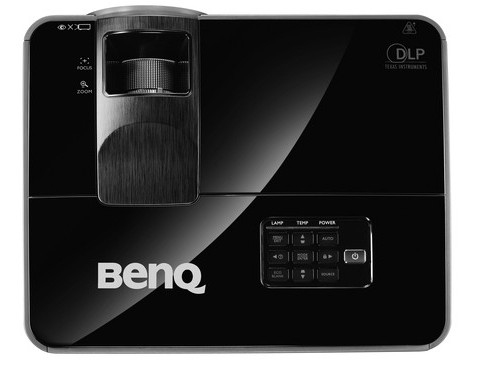

BenQ MX514P 2700 ANSI lumens DLP XGA (1024x768) 3D Black

BenQ MX514P 2700 ANSI lumens DLP XGA (1024x768) 3D Black

Model MX514PPart no. 9H.J6J77.12LEAN 840046025403

61 specifications
  • Noise30 dB
  • Weight2.5 kg
  • ColourBlack
  • Projector brightness2700 ANSI lumens
  • Light source typeLamp
  • Focal length range21 - 23.1 mm
See all specifications

Overview

Noise
30 dB
Weight
2.5 kg
Colour
Black
Projector brightness
2700 ANSI lumens
Light source type
Lamp
Focal length range
21 - 23.1 mm
Brand
BenQ
Model
MX514P
Part numbers
9H.J6J77.12L, MX514P
EAN / UPC
840046025403, 4718755036484
Also known as
BenQ MX514P 2700 ANSI lumens DLP XGA (1024x768) 3D Black

Specifications

61 specifications in 14 groups

Projector

Projector brightness2700 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)13000:1
Screen size compatibility1016 - 7620 mm (40 - 300")
Number of colours1.073 billion colours
Horizontal scan range31 - 102 kHz
Vertical scan range23 - 120 Hz
Keystone correction, vertical± 40°

Light source

Light source typeLamp
Service life of light source4500 h
Service life of light source (economic mode)6000 h
Lamp power190 W

Lens system

Focal length range21 - 23.1 mm
Aperture range (F-F)2.57 - 2.65
Zoom ratio1.1:1
Throw ratio1.86 - 2.04:1
Offset120%

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDNo
3DYes
Supported graphics resolutions1600 x 1200 (UXGA), 640 x 480 (VGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

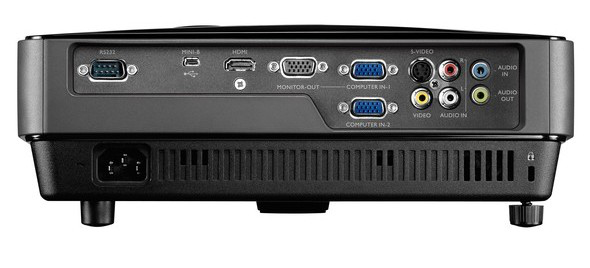

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in1
Headphone outputs1
Serial interface typeRS-232
USB connector typeMini-USB B

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level30 dB
Noise level (economic mode)26 dB
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesArabic, Bulgarian, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W

Design

Product colourBlack

Power

Power sourceAC
Power consumption (typical)265 W
Power consumption (standby)1 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Weight2.5 kg
Width287.3 mm
Depth232.6 mm
Height114.4 mm

Packaging content

Remote control includedYes
Cables includedAC, VGA
ManualYes
Quick start guideYes

Other features

Aspect ratio4:3
RS-232 ports1
