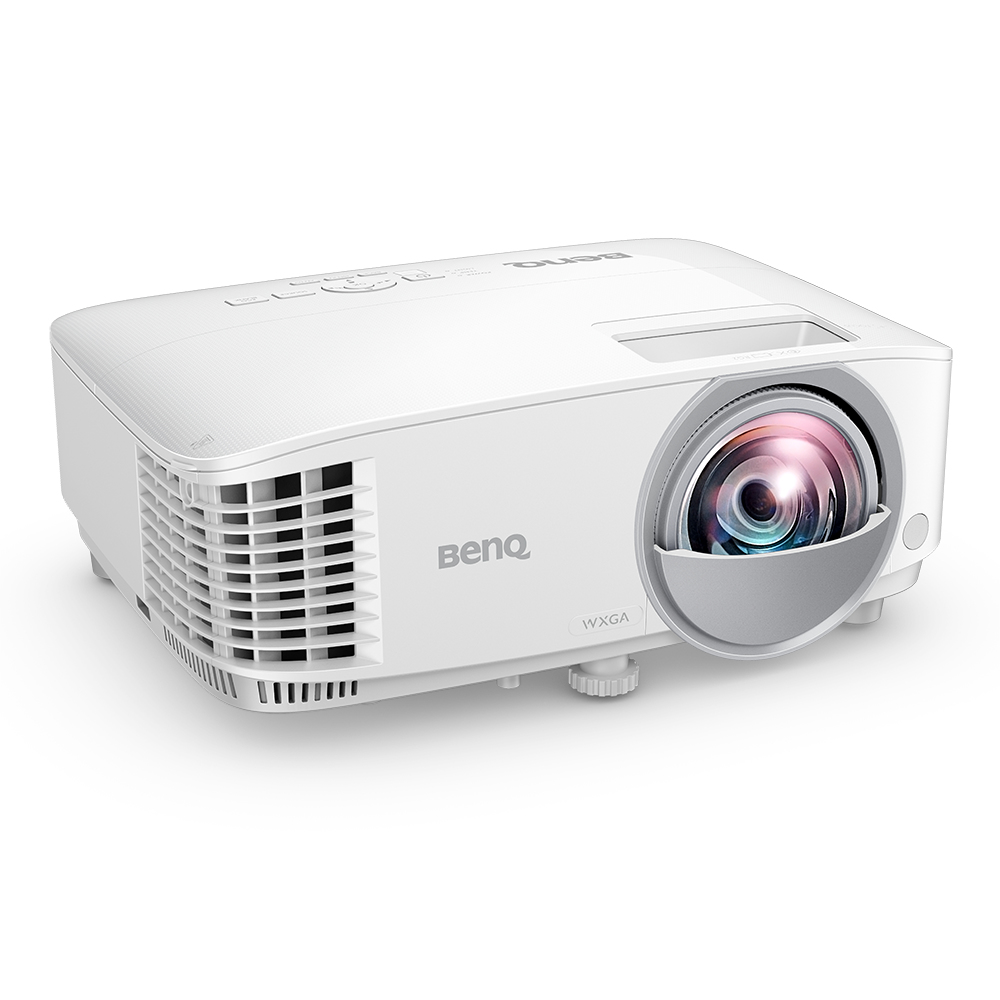

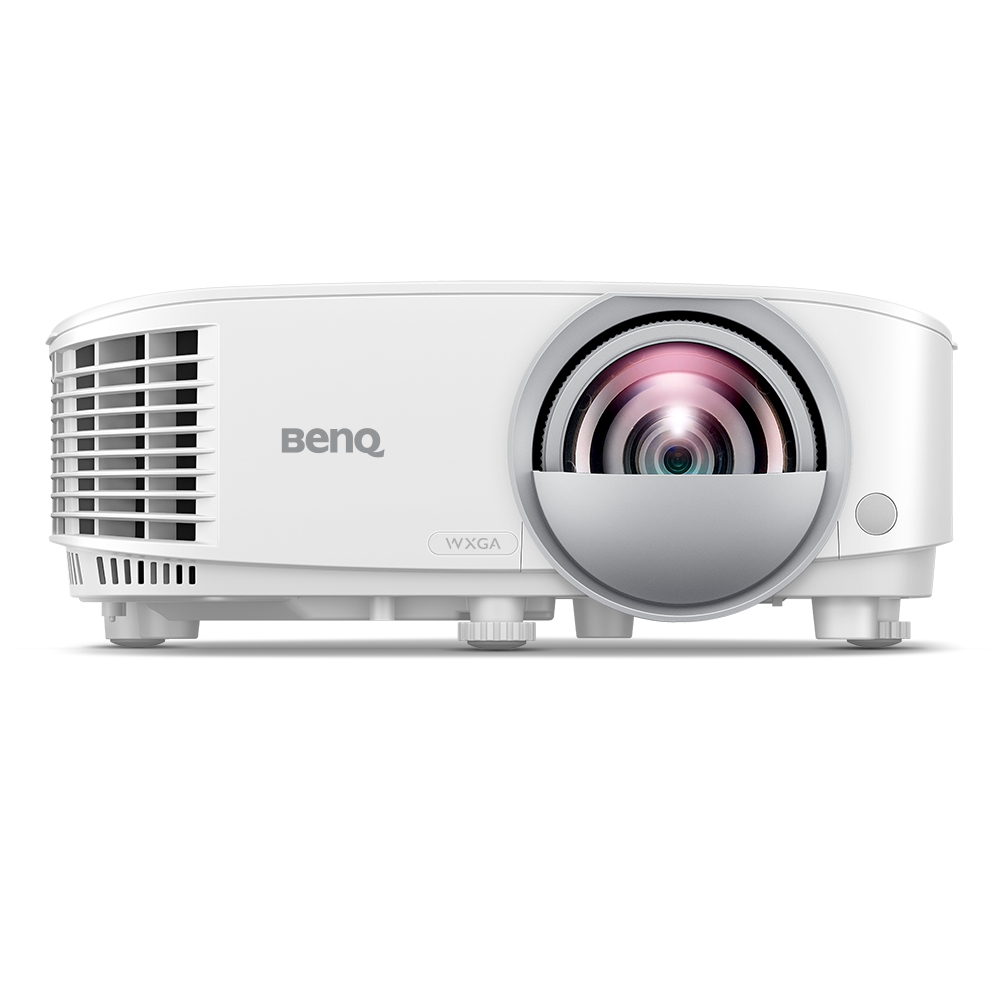

MW826STH Short throw projector 3500 ANSI lumens DLP WXGA (1280x800) White
Model MW826STHPart no. 9H.JMW77.1HLEAN 840046043971
75 specifications
- Noise33 dB
- TypeShort throw projector
- Weight2.6 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 33 dB
- Type
- Short throw projector
- Weight
- 2.6 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- MW826STH
- Part numbers
- 9H.JMW77.1HL, 9H.JMW77.1JE, 9H.JMW77.13E, 9H.JMW77.13L
- EAN / UPC
- 840046043971, 4718755083808
- Also known as
- BenQ MW826STH Short throw projector 3500 ANSI lumens DLP WXGA (1280x800) White
Specifications
75 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:10 |
| Smart projector | Yes |
| Screen size compatibility | 1778 - 3048 mm (70 - 120") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.65 cm (0.65") |
| Matrix type | DMD |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 200 W |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 6.9 mm |
| Aperture range (F-F) | 2.6 - 2.6 |
| Zoom type | Fixed |
| Offset | 105% |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | Yes |
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 28 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 1499 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.6 kg |
| Width | 296 mm |
| Depth | 239 mm |
| Height | 120 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
