BenQ MW523 Standard throw projector 3000 ANSI lumens DLP WXGA (1280x800) 3D Black

BenQ MW523 Standard throw projector 3000 ANSI lumens DLP WXGA (1280x800) 3D Black

Model MW523Part no. 9H.JA377.34EEAN 319763443017

74 specifications
  • Noise32 dB
  • TypeStandard throw projector
  • Weight2.3 kg
  • ColourBlack
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
32 dB
Type
Standard throw projector
Weight
2.3 kg
Colour
Black
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Brand
BenQ
Model
MW523
Part number
9H.JA377.34E
EAN / UPC
319763443017, 840046028756, 4718755047527, 8400460287560
Also known as
BenQ MW523 Standard throw projector 3000 ANSI lumens DLP WXGA (1280x800) 3D Black

Specifications

74 specifications in 15 groups

Projector

Projector brightness3000 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)13000:1
Native aspect ratio16:10
Screen size compatibility990.6 - 7620 mm (39 - 300")
Number of colours1.073 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range23 - 120 Hz
Keystone correction, vertical±40°

Light source

Light source typeLamp
Service life of light source4500 h
Service life of light source (economic mode)6000 h
Lamp power190 W
Lamps quantity1 lamp(s)

Lens system

Focal length range21 - 25.6 mm
Aperture range (F-F)2.55 - 3.06
Zoom ratio1.2:1
Throw ratio1.49 - 1.79:1
Offset125%

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDNo
3DYes
Supported 3D formatsFrame Sequential, Frame packing, Side by side, Top and bottom
Supported graphics resolutions1280 x 800, 1600 x 1200 (UXGA), 640 x 480 (VGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Video colour modesCinema, Dynamic

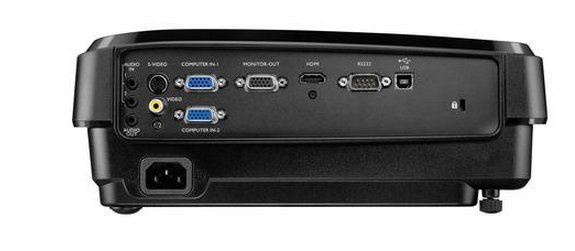

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in0
Audio (L/R) out0
Serial interface typeRS-232
PC in (D-Sub)Yes
USB connector typeUSB Type-B

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level32 dB
Noise level (economic mode)30 dB
HDCPNo
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesArabic, Bulgarian, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Thai, Turkish

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W

Design

Product typeStandard throw projector
Market positioningBusiness
Product colourBlack
PlacementCeiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)240 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Weight2.3 kg
Width302.8 mm
Depth221.8 mm
Height103.8 mm

Packaging content

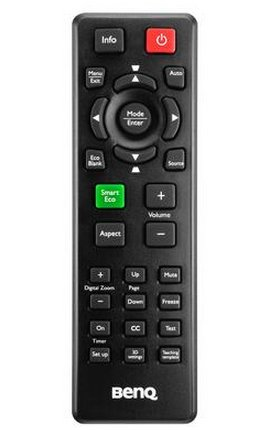

Remote control includedYes
Batteries includedYes
Cables includedVGA
ManualYes
Quick start guideYes
Warranty cardYes

Other features

Audio input2
Audio output1
RS-232 ports1
