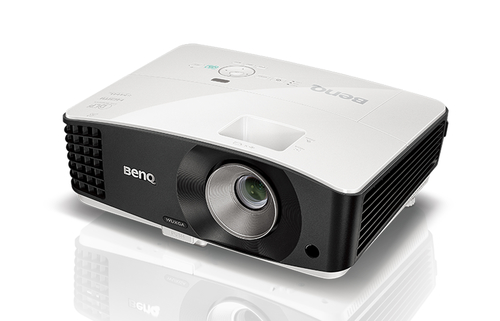

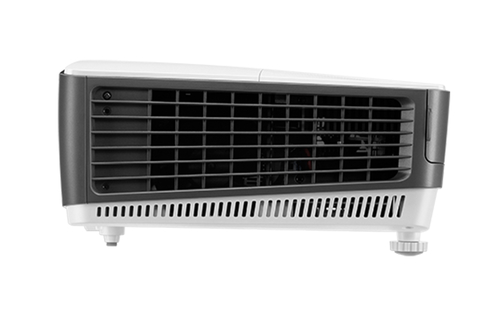

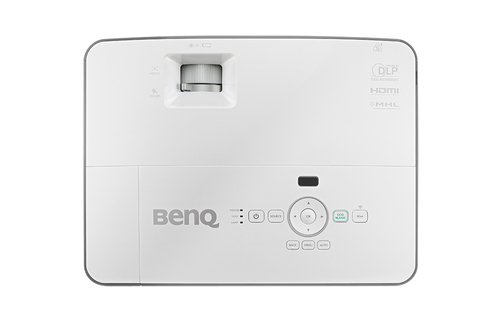

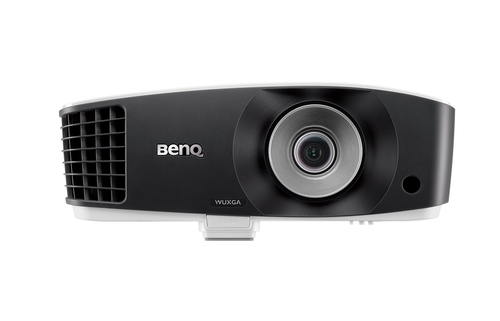

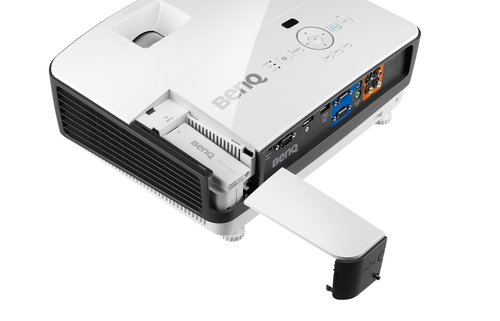

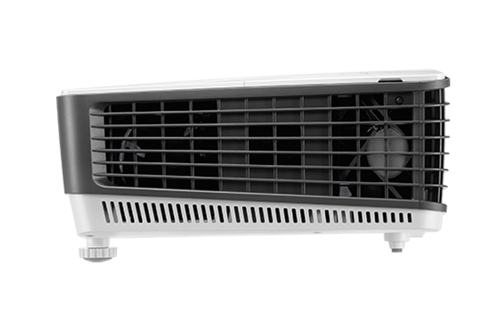

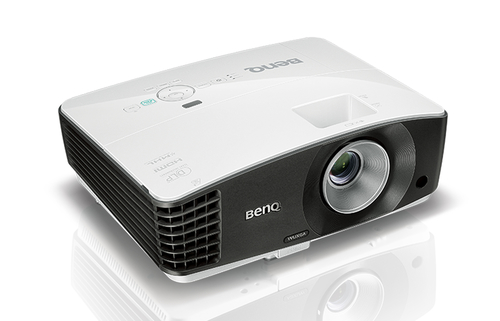

BenQ MU686 + Mount 200mm

BenQ MU686 + Mount 200mm

Model MU686 + Mount 200mmPart no. MU686-200

75 specifications
  • Noise31 dB
  • TypeStandard throw projector
  • Weight3.3 kg
  • ColourBlack, White
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
31 dB
Type
Standard throw projector
Weight
3.3 kg
Colour
Black, White
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Brand
BenQ
Model
MU686 + Mount 200mm
Part number
MU686-200
Also known as
BenQ MU686 + Mount 200mm Standard throw projector 3500 ANSI lumens DLP WUXGA (1920x1200) 3D Black, White

Specifications

75 specifications in 15 groups

Projector

Projector brightness3500 ANSI lumens
Projection technologyDLP
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)20000:1
Native aspect ratio16:10
Screen size compatibility762 - 7620 mm (30 - 300")
Number of colours1.073 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range23 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)7500 h
Lamp power240 W
Lamps quantity1 lamp(s)

Lens system

Focal length range16.88 - 21.88 mm
Aperture range (F-F)2.59 - 2.87
Zoom ratio1.3:1
Throw ratio1.15 - 1.49:1
Offset100%

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDYes
3DYes
Supported 3D formatsFrame Sequential, Frame packing, Side by side, Top and bottom
Supported graphics resolutions640 x 480 (VGA), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

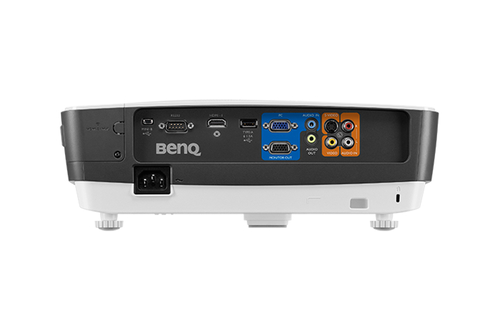

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in1
Microphone inYes
Serial interface typeRS-232
MHL version2.0
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0

Storage

Card reader integratedNo

Features

Noise level31 dB
Noise level (economic mode)28 dB
Preset modes3D, Cinema, Custom, Dynamic, Presentation, sRGB
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesArabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W

Design

Product typeStandard throw projector
Market positioningBusiness
Product colourBlack, White
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)350 W
Power consumption (standby)0.5 W
Power consumption (economy mode)261 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Weight & dimensions

Weight3.3 kg
Width331 mm
Depth246.2 mm
Height129.4 mm

Packaging content

Remote control includedYes
Remote control typeIR
Cables includedAC, VGA
ManualYes
Mounting brackets includedYes
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
