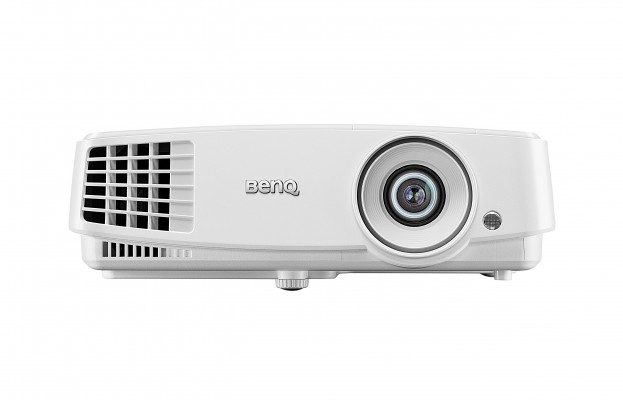

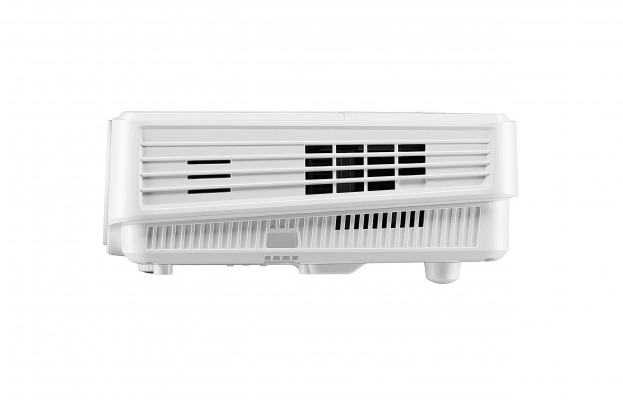

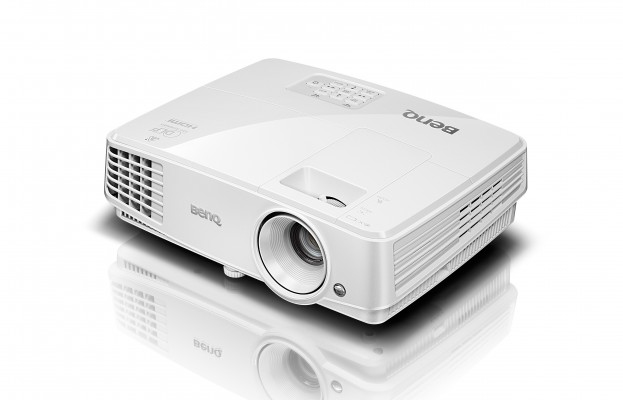

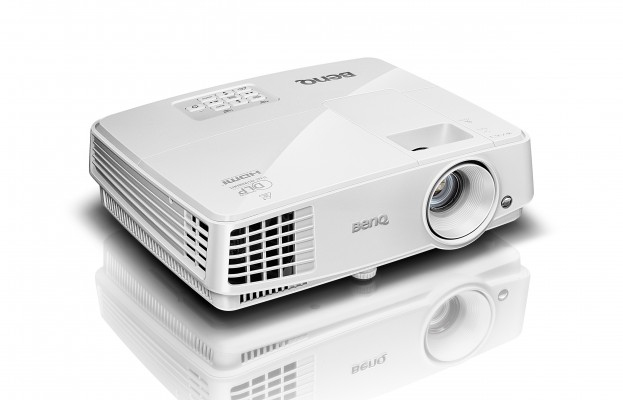

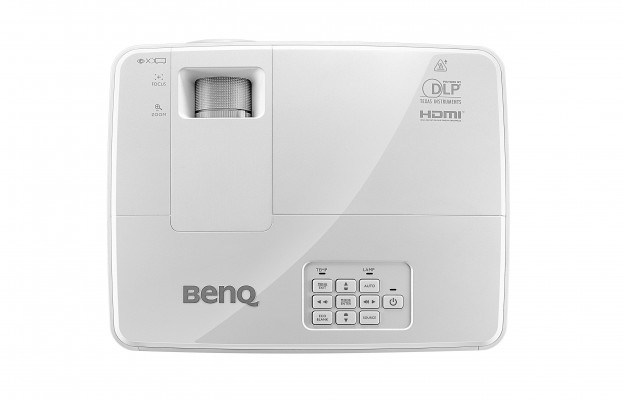

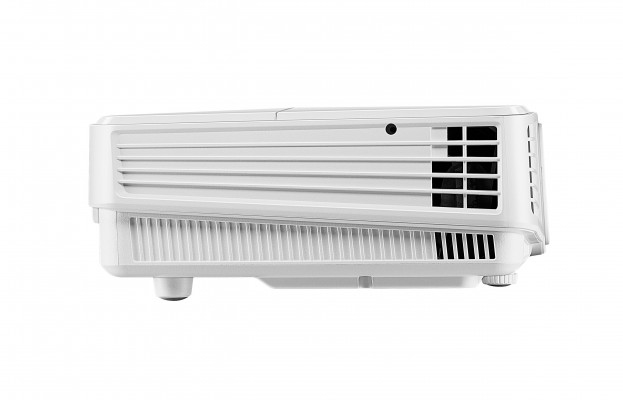

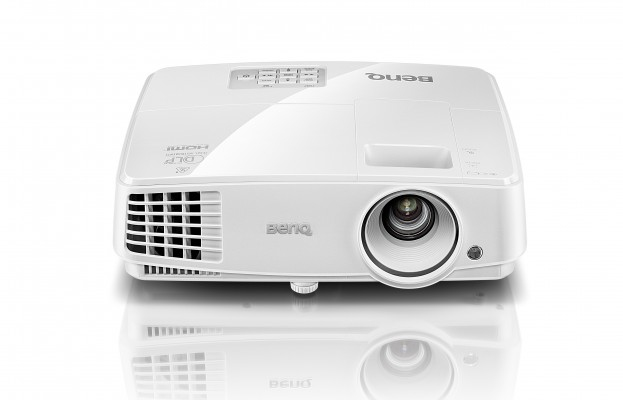

BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White
Model MS524AEAN 840046034511
63 specifications
- Noise33 dB
- TypeStandard throw projector
- Weight1.9 kg
- ColourWhite
- Projector brightness3300 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 33 dB
- Type
- Standard throw projector
- Weight
- 1.9 kg
- Colour
- White
- Projector brightness
- 3300 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- MS524A
- Part numbers
- MS524A, 9H.JFA77.13A
- EAN / UPC
- 840046034511
- Also known as
- BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White
Specifications
63 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3300 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | SVGA (800x600) |
| Contrast ratio (typical) | 13000:1 |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 914.4 - 7620 mm (36 - 300") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 6000 h |
| Lamp power | 190 W |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 21 - 23.1 mm |
| Aperture range (F-F) | 2.56 - 2.8 |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.96 - 2.15:1 |
| Offset | 120% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Supported graphics resolutions | 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 512, 640 x 544, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 752 x 582, 768 x 432, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 800 x 592, 800 x 600 (SVGA), 832 x 624, 848 x 480, 854 x 480 (WVGA), 900 x 720 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

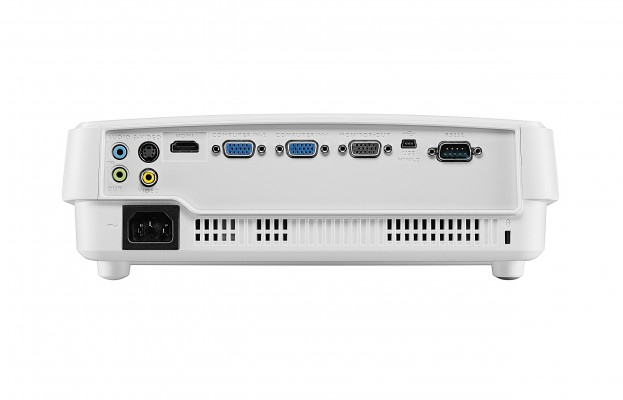

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 28 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Thai, Turkish |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 4 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Desktop, Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 270 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (PowerSave) | 220 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.9 kg |
| Width | 283 mm |
| Depth | 222 mm |
| Height | 95 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Quick start guide | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
What people say
Reviews & ratings
BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White
No reviews yet
Be the first to tell others how BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White
All data projector comparisons- BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White vsBenQ MW526A data projector Standard throw projector 3300 ANSI lumens DLP WXGA (1280x800) WhiteCompare specs
- BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White vsBenQ MH530 Standard throw projector 3200 ANSI lumens DLP 1080p (1920x1080) 3D WhiteCompare specs
- BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White vsBenQ MX704WI Standard throw projector 4000 ANSI lumens DLP XGA (1024x768) 3D WhiteCompare specs
- BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White vsBenQ MS517H Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) 3D WhiteCompare specs
- BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White vsViewsonic Pro7827HD Standard throw projector 2200 ANSI lumens DLP 1080p (1920x1080) 3D BlackCompare specs

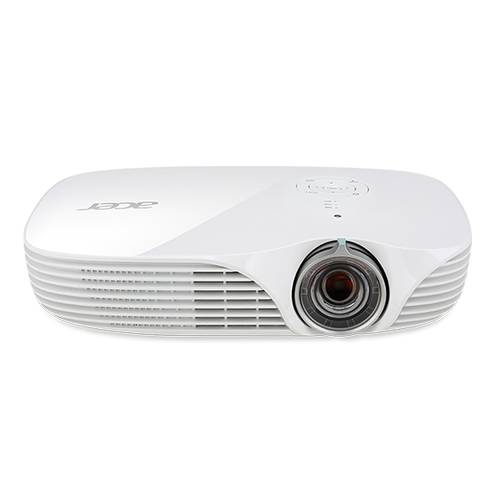

- BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White vsAcer Portable LED K138STi Short throw projector 800 ANSI lumens DLP WXGA (1280x800) WhiteCompare specs

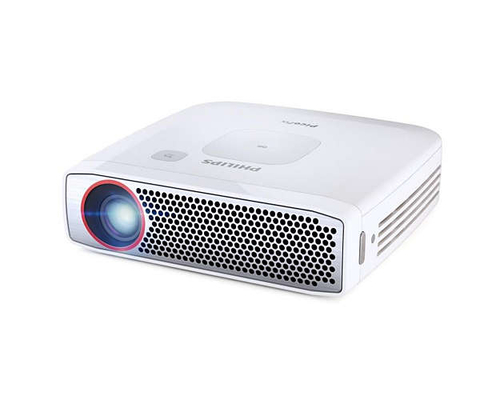

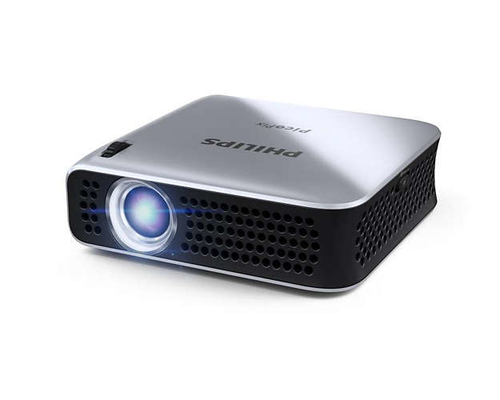

- BenQ MS524A data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) White vsPhilips PicoPix PPX4835/US data projector Portable projector 350 ANSI lumens DLP 720p (1280x720) WhiteCompare specs
