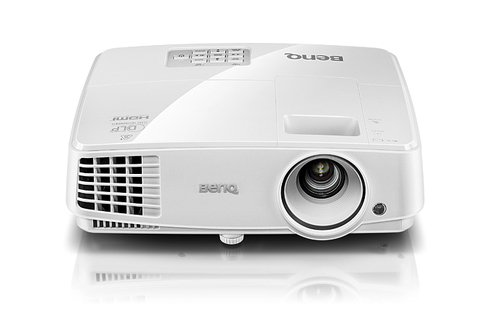

BenQ MS524 Standard throw projector 3200 ANSI lumens DLP SVGA (800x600) 3D White
Model MS524Part no. 9H.JCF77.13LEAN 4718755053306
74 specifications
- Noise32 dB
- TypeStandard throw projector
- Weight1.9 kg
- ColourWhite
- Projector brightness3200 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 1.9 kg
- Colour
- White
- Projector brightness
- 3200 ANSI lumens
- Light source type
- Lamp
- Brand
- BenQ
- Category
- Data Projector
- Model
- MS524
- Part numbers
- 9H.JCF77.13L, 9H.JCF77.13E
- EAN / UPC
- 4718755053306, 012303512128, 745734232647, 765042398828 +9 more
- Also known as
- BenQ MS524 Standard throw projector 3200 ANSI lumens DLP SVGA (800x600) 3D White
Specifications
74 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3200 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | SVGA (800x600) |
| Contrast ratio (typical) | 13000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3, 16:9, 16:10 |
| Screen size compatibility | 914.4 - 7620 mm (36 - 300") |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 190 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 21 - 23.1 mm |
| Aperture range (F-F) | 2.56 - 2.8 |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.86 - 2.04:1 |
| Offset | 120% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | Yes |
| Supported graphics resolutions | 1600 x 1200 (UXGA), 640 x 480 (VGA) |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |
| USB connector type | USB Type-B |
| CardBus PCMCIA slot type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
| Optical disc player type | Not included |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 30 dB |
| Preset modes | Cinema, Custom, Dynamic, Presentation, sRGB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | White |
| Placement | Ceiling |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 270 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 280 W |
| Power consumption (economy mode) | 220 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.9 kg |
| Width | 283 mm |
| Depth | 222 mm |
| Height | 95 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | VGA |
| Quick start guide | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
